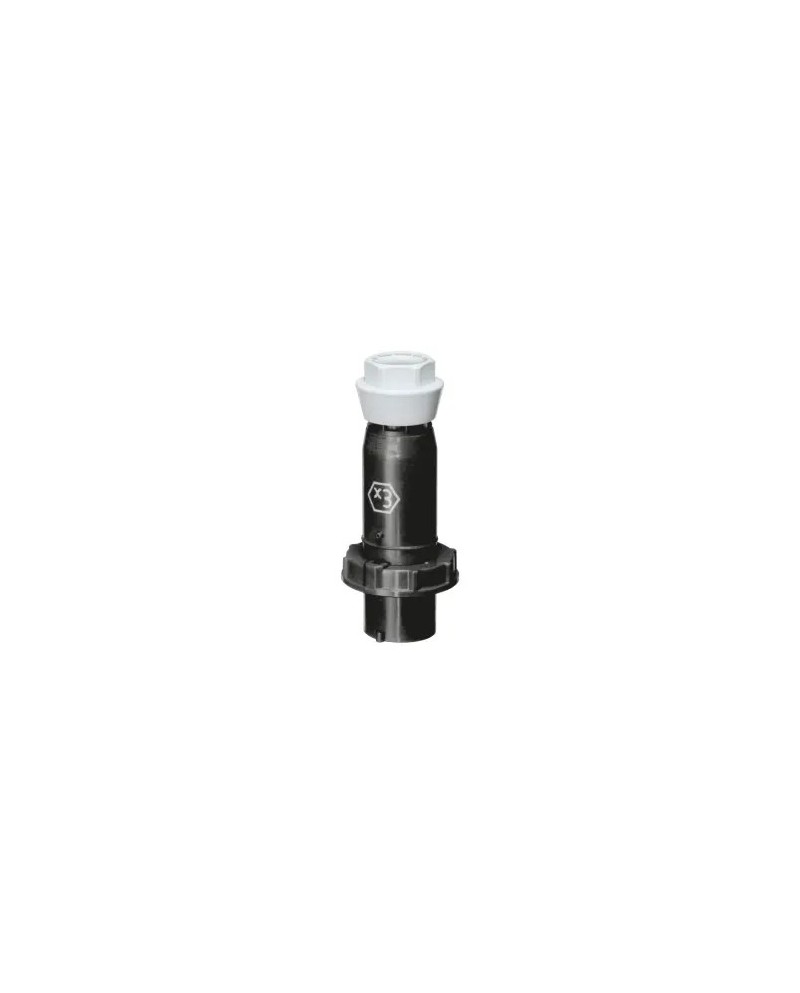

Sheet 125 A series 8581/12
- IP66
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 8581/12 series for the 1/21 area of R. Stahl are 4 or 5-pole versions up to 125 A. They promote a tag and unchecked by floating pins. The folding tensile discharge device facilitates the driver's installation.
References Manufacturer: 277865,277866,277862,277863,153649,153652,153638,153643,153647
| Ambiant temperature | -45 ° C to + 60 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 480V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 01 ATEX 1161 |
| Certificat_iecex-en_us | IECEX PTB 06.0034 |
| Body colors | Black |
| Red | 1 |
| Zone 1/2 | 1 |
| T5 | 1 |
| 200v AC | 1 |
| -30 ° C to + 40 ° C | 1 |
