Extension bases 32 A ATEX Series 8571/16: Zone 1,2 -A2S

Extensive bases 32 A series 8571/16

Name: Extensive bases 32 A series 8571/16
Brand: R. Stahl
SKU: STL0109

- Connector base 32 A
- IP66
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -30 ° C
- Introduction 2 Type: 8290/3-M32
- Introduction 1 Type: HSK-K-MZ-EX M32x1,5
- Service current assigned: 32 A Certificates: IECEX (PTB), Taiwan (ITRI)
- Range of frequencies: 50/60 Hz
- Silicone without: yes
- Color code: Red coding (time position): 6
- Detuable number of poles: 3 p + n + PE

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

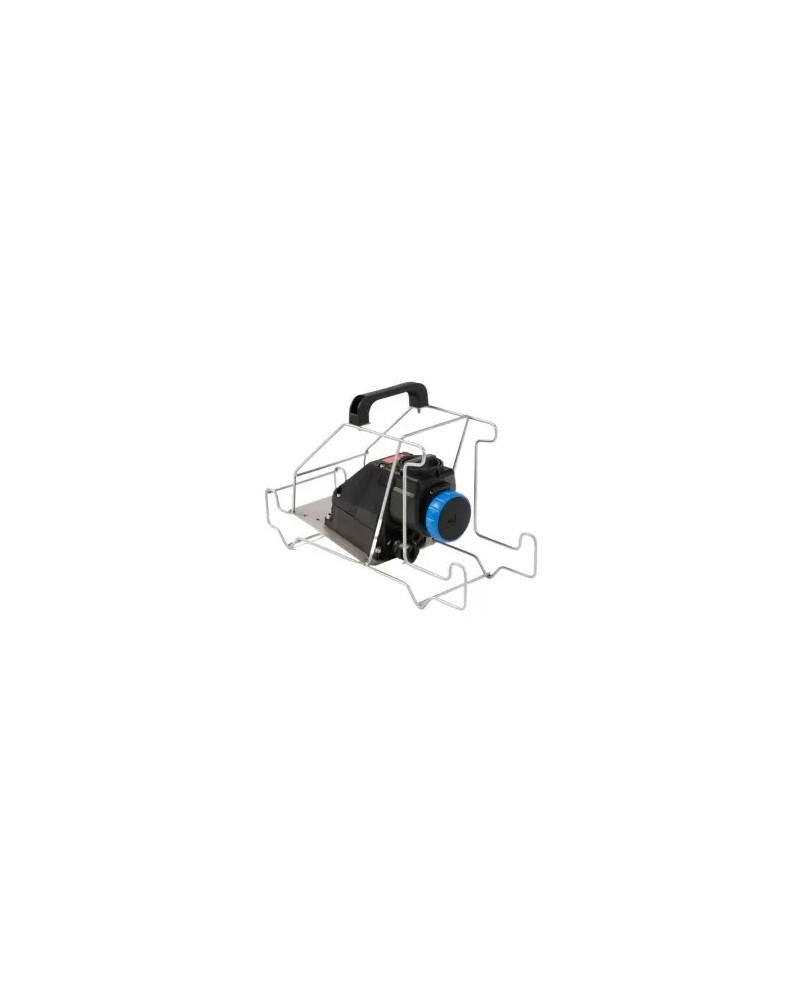

The extension bases for the area 1 of the R. Stahl 8571/16 series with switch based on the connection of the fixed and mobile electrical equipment, as well as the connection of the electrical lines or circuits in the ex. Field of application in Zone 1, 21 with full switching power AC-3 up to 32 A. Thanks to their stainless steel support frame and the large handle, they can easily be transported and positioned easily on the support feet with flexibility and safety.

References Manufacturer: 276207,276208,276209,276205,276204,276206

Ambiant temperature	-50 ° C to +65 ° C
Temperature class	T6
Warranty	2¨
Feed	690v
Waterproofing protection (IP)	Ip66
Application / usage	ATEX zone
ATEX zone	Zone 1/2
Gas class	IIC
ATEX protection mode	Ex e (increased security)
Certificates	Atex.iecex
Frequency (Hz)	50 / 60hz
Material	Polyamide
Certificat_atex-en_us	PTB 04 ATEX 1060
Certificat_iecex-en_us	IECEX PTB 05.0024
Threading size	M32
Body colors	Black
220V av	1
