Compact wall outlets 16 A ATEX series 8572/13: Zone 1,2 -A2S

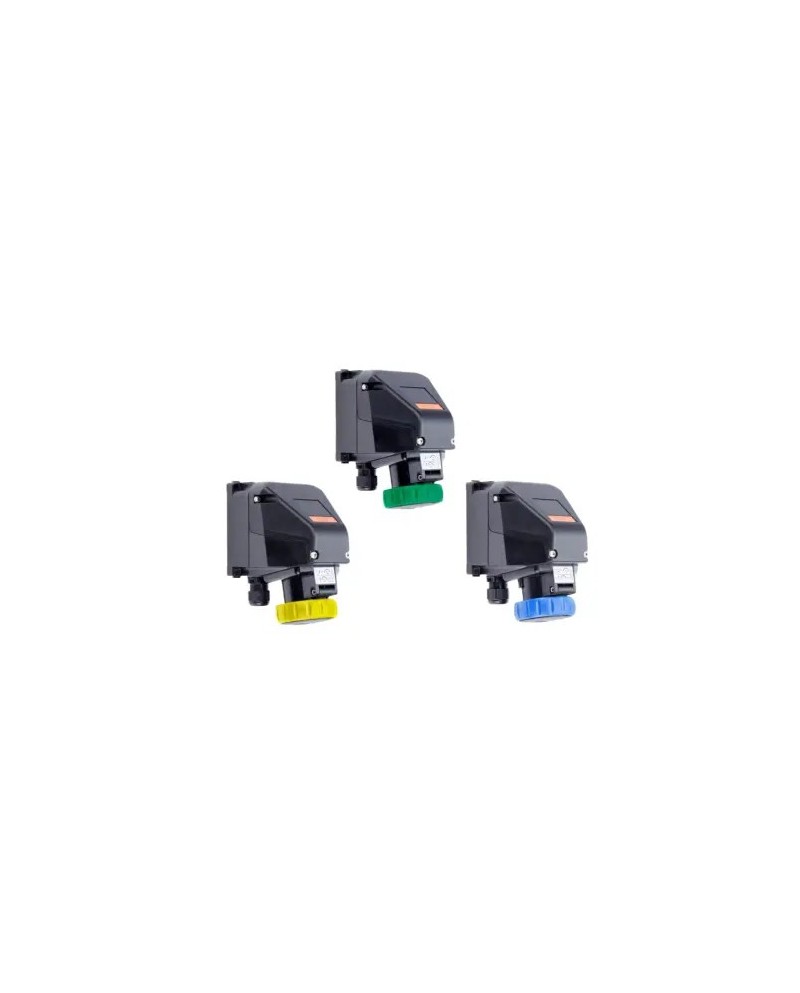

Compact murals 16 A series 8572/13

Name: Compact murals 16 A series 8572/13
Brand: R. Stahl
SKU: STL0110

- Compact wall outlets 16 A series 8572/13
- IP66
- Maximum ambient temperature: +45 ° C
- Minimum ambient temperature: -50 ° C
- Introduction Type 2: 8290/3-M25
- Introduction 1 Type: 8161/7-M25-1707-LT
- Assigned service current: 16 A
- Certificates: ATEX (PTB), China (CQST), IECEX (PTB)
- Range of frequencies: 50/60 Hz
- without silicone: no
- Code Color: Blue
- Coding (time position): 6
- Detacious number of poles: 2 p + pe

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

Takes of R. Stahl's new 8572/13 series are 16 A compact outlets for voltages up to 277 V. Self-cleaning lamellays are guaranteed optimum electrical contact. A reduced dimension and a stamped housing constituting prerequisites for fast electrical installation. The integrated mechanical locking device prevents the draw of the load cards.

References Manufacturer: 242334,242335,242336,242337,242338,242339,242341,242342,242343, 242344,242345,242346,241401,241402,241403,241404,241405,241406

Ambiant temperature	-50 °C à +65 °C
Temperature class	T6
Warranty	2¨
Feed	200V AC
Protection étanchéité (IP)	IP66
Application/Usage	Zone ATEX
Zone ATEX	Zone 1/2
Classe de gaz	IIC
Mode de protection ATEX	Ex e (sécurité augmentée)
Certificats	ATEX.IECEx
Fréquence (Hz)	50/60hz
Matière	Polyester renforcé (GRP)
Certificat_ATEX-fr_FR	PTB 16 ATEX 1015
Certificat_IECEx-fr_FR	IECEx PTB 16.0027
Taille de filetage	M25
Couleurs corps	Noir
Entrée(s) de câble	1xM25
Cable type	non armé
Polyamide	1
Ex d (antidéflagrant)	1
