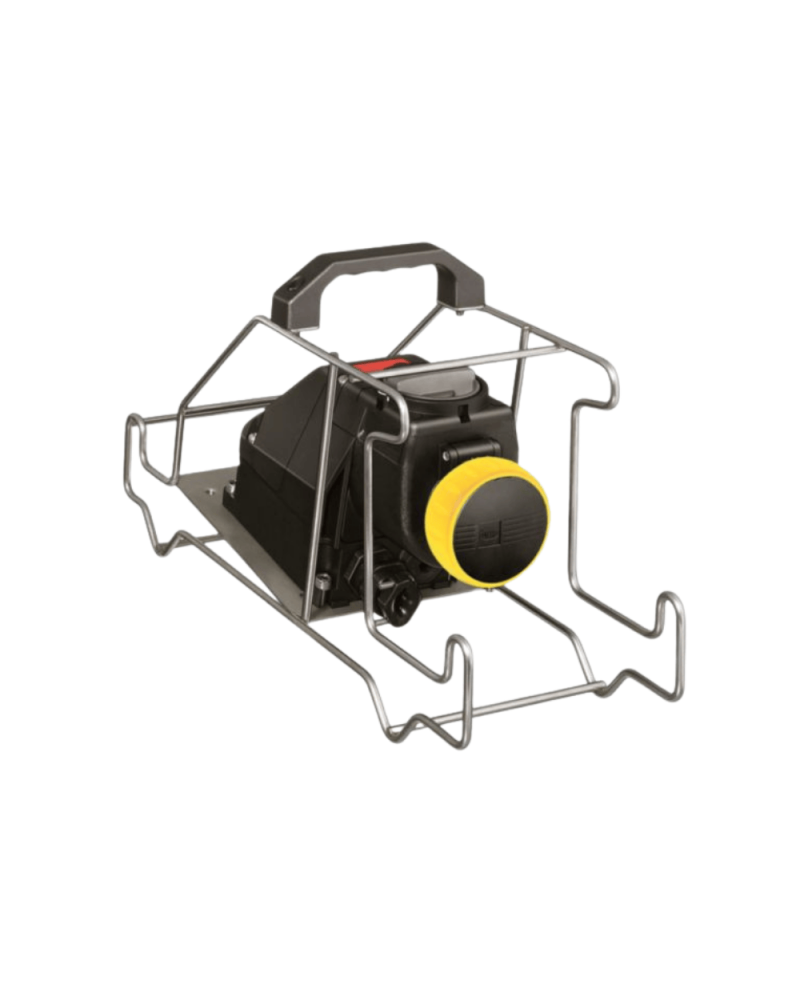

Extensionals 16 A ATEX Series 8570/16: Zone 1,2 -A2S

Extensive bases 16 A series 8570/16

Name: Extensive bases 16 A series 8570/16
Brand: R. Stahl
SKU: STL0108

- Product Description: Connector Base 16 A
- IP66
- Maximum ambient temperature: +55 ° C
- Minimum ambient temperature: -30 ° C
- Introduction 2 Type: 8290/3-M25
- Introduction 1 Type: HSK-K-MZ-EX M25x1,5
- Assigned service current: 16 A Certificates: ATEX (PTB), Korea (KGS), IECEX (PTB), Taiwan (ITRI)
- Range of frequencies: 50/60 Hz
- Silicone without: Yes Code Color: Blue
- Coding (time position): 6
- Detacious number of poles: 2 p + pe

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

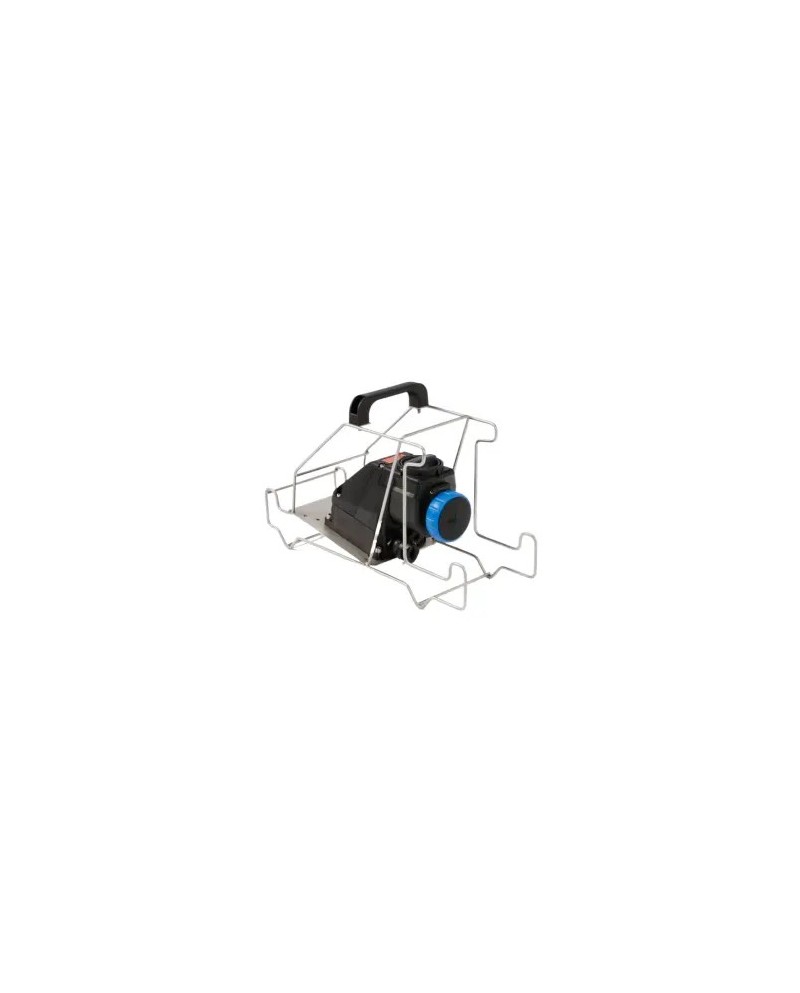

The prolongating bases for the area 1 of the 8570/16 series of R. Stahl with switch base are used to connect fixed and mobile electrical equipment, as well as the connection of the lines or electrical circuits in the zones Ex. Application area in the Zone 1, 21 with full switching power AC-3 up to 16 A. Thanks to their stainless steel support chassis and the large handle, they can easily be transported and positioned easily on the support feet with flexibility and safety.

References Manufacturer: 274064,274061,274065,274049,274062,274063,274048,274050

Ambiant temperature	-50 ° C to +65 ° C
Temperature class	T6
Warranty	2¨
Feed	200v AC
Waterproofing protection (IP)	Ip66
Application / usage	ATEX zone
ATEX zone	Zone 1/2
Gas class	IIC
ATEX protection mode	Ex d (explosion)
Certificates	Atex.iecex
Frequency (Hz)	50 / 60hz
Material	Polyamide
Body colors	BLUE
Ex e (increased security)	1
