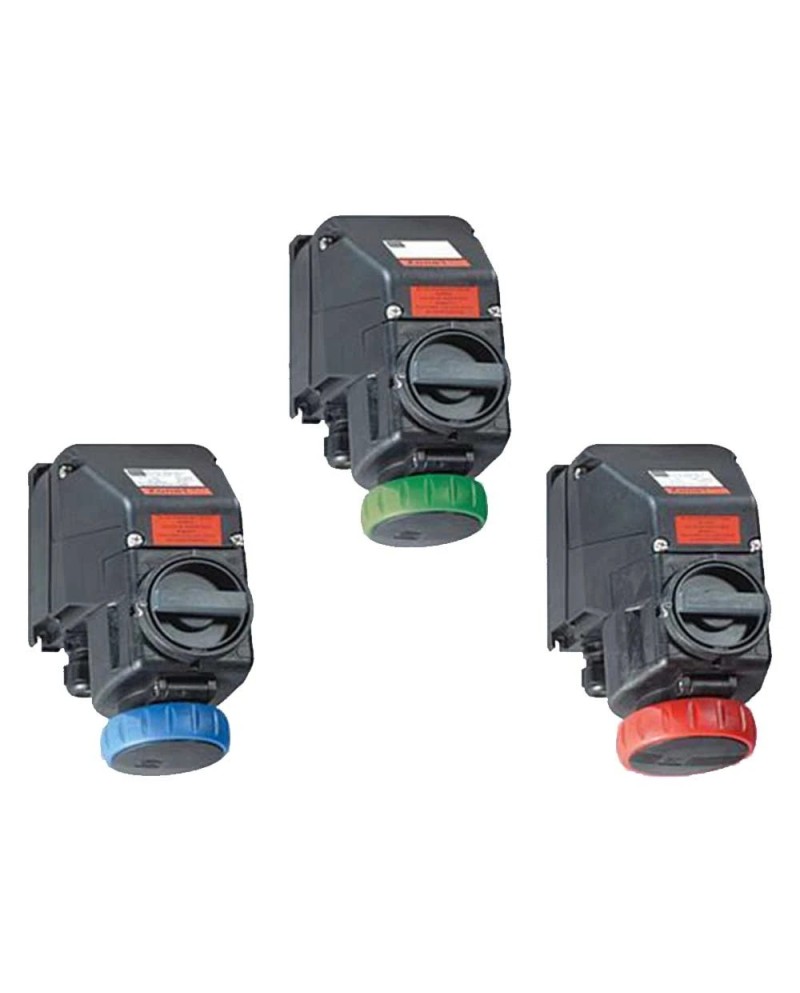

Wall sockets 16 A series 8570/11
€470.09
Tax excluded
- IP66
- Different voltage ranges according to EN 60309
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
- Variations for use in the United States / Canada available upon request
Last items in stock
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Solconsex 5570/11 series of R. Stahl series for the 1/21 zone in version 3, 4 and 5 poles offer full AC-3 switching power up to 16 A. The high degree of protection IP66 guarantees maximum protection against the Penetration of dust and water in all application positions. Self-cleaning lamer contacts provide optimal electrical contact and plugs can be freely connected and disconnected in the zero position. The switch-disconnector contributes to safety by a mechanical locking device thanks to its lockable joystick in position 0 and I.
References Manufacturer: 273935,273898,273850,273839,273937,273931.2 73925,273929,273930,273924,273922,273934,273 900,273932,273927,273936,273899,273921,2739 23,317033,317035,273933,273926,273928,273897
| Ambiant temperature | -50 ° C to +65 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 380V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 03 ATEX 1227 |
| Certificat_iecex-en_us | IECEX PTB 05.0023 |
| Threading size | M25 |
| Body colors | Black |
| Cable entry (s) | 1xm25 |
| Cable type | non-armed |
| Zone 1/21 | 1 |
| Ex d (explosion) | 1 |
| 50hz | 1 |
| 690v | 1 |
| BLUE | 1 |
| -15 ° C to + 65 ° C | 1 |
