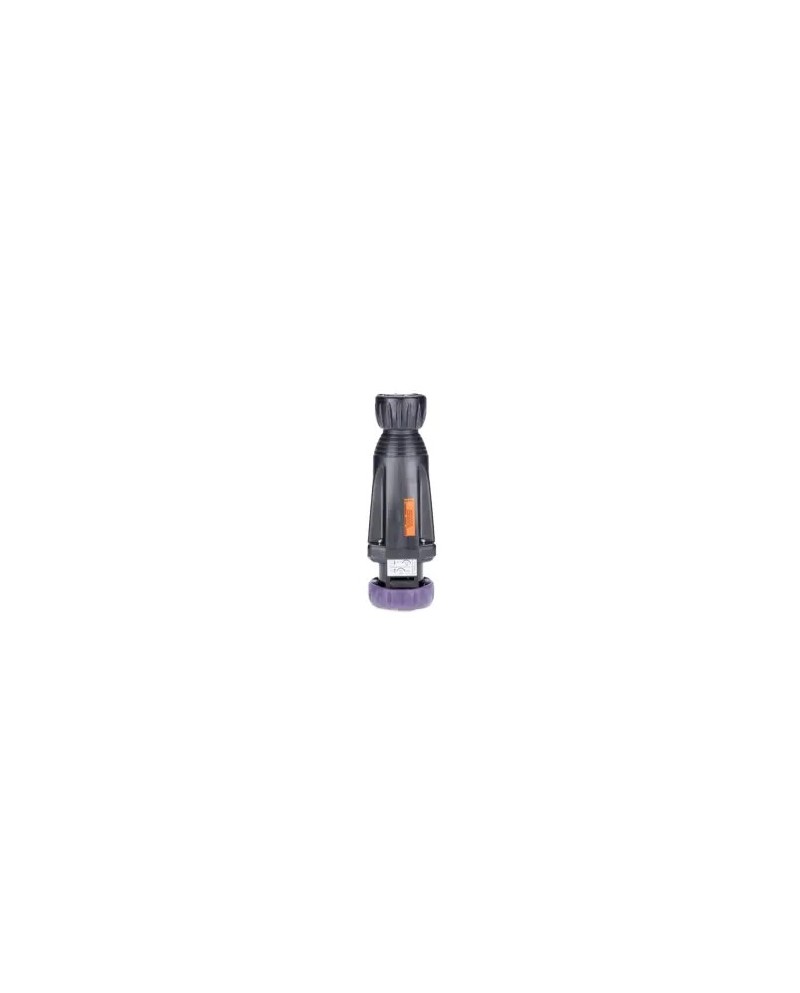

Compact wall outlets very low voltage 16 A series 8573/13
- Wall socket 16 A compact
- IP66
- Very low voltage
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -50 ° C
- Introduction 2 Type: 8290/3-M25
- Introduction 1 Type: 8161/7-M25-1707-LT
- Service current assigned: 16 A Certificates: ATEX (PTB), China (CQST), IECEX (PTB)
- Range of frequencies: 50/60 Hz
- without silicone: no
- Code Color: Purple
- coding (time position): 0
- Detuable number of poles: 3p
- IP66
- Very low voltage
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -50 ° C
- Introduction 2 Type: 8290/3-M25
- Introduction 1 Type: 8161/7-M25-1707-LT
- Service current assigned: 16 A Certificates: ATEX (PTB), China (CQST), IECEX (PTB)
- Range of frequencies: 50/60 Hz
- without silicone: no
- Code Color: Purple
- coding (time position): 0
- Detuable number of poles: 3p
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Takes of R. Stahl's new 8573/13 series are for 2 or 3-pole applications up to 16 A. Compact jacks for very low voltages up to 50 V are made of robust and chemical resistant plastic. Self-cleaning blade contacts ensure optimum electrical contact. The rotary switching mechanism and the integrated locking device reliably prevent the drawing of the load plugs. The new compact plug of the 8573/13 series replaces the 8575 tape series; It is 100% compatible with this series and can be used with the 8575 series cards.
References Manufacturer: 241380,241384,243152,243153,243154,243155,243 157,243158,243159,243160,243171,243172,243173, 243190,243191,243192,243193,243194,243195,24 3197,243198,243199,243200,243201,243202,243203, 241373,241374,241375,241376,241377,241378,24 1379,241381,241382,241383,241385,241386,241387, 243175,243176,243177,243178,243179,243180,24 3182,243183,243184,243185,243186,243187,243188
| Ambiant temperature | -50 ° C to 60 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 24-48V DC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Reinforced polyester (GRP) |
| Certificat_atex-en_us | PTB 16 ATEX 1017 |
| Certificat_iecex-en_us | IECEX PTB 16.0029 |
| Body colors | Black |
| Polyamide | 1 |
| Ex d (explosion) | 1 |
| -50 ° C to + 40 ° C | 1 |
