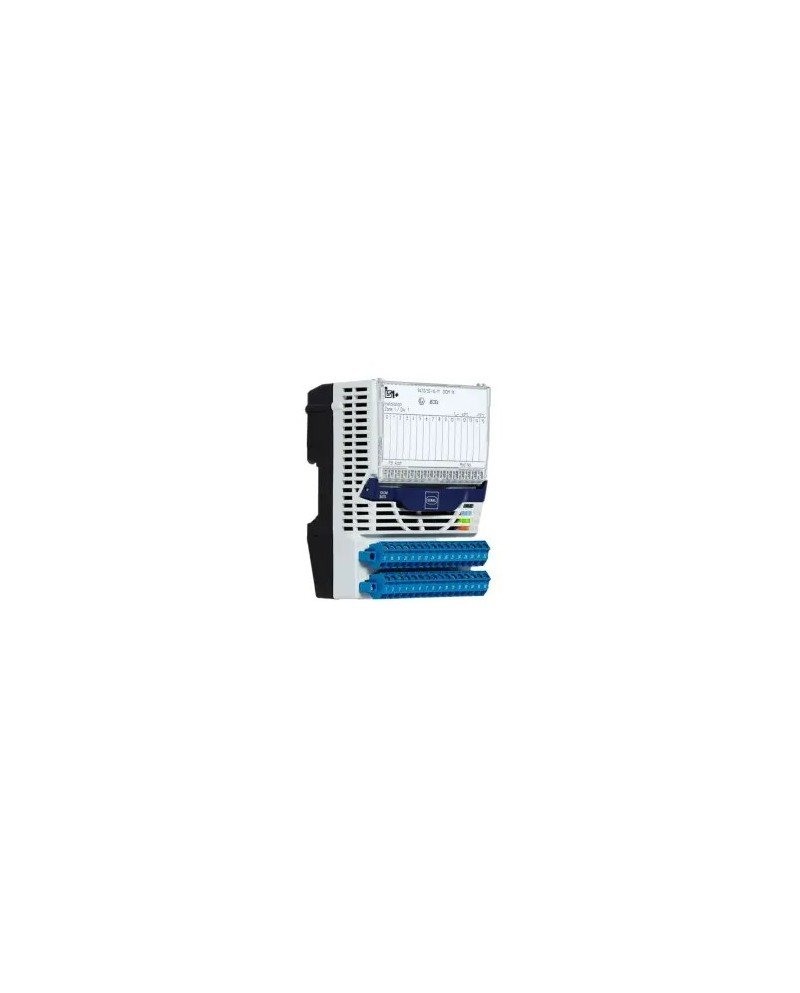

Logical input / output module for zone 1 Series 9470/32
- IP20
- Ambient temperature: -40 ° C ... 80 ° C
- Zones: 1.2
- 16 channels that can be used in pairs as input or output
- IC IIC intrinsic safety inputs / outputs with line fault monitoring and error indication and LED status for each channel
- Module in zone 1 replaceable on tension (Hot swap)
- Ambient temperature: -40 ° C ... 80 ° C
- Zones: 1.2
- 16 channels that can be used in pairs as input or output
- IC IIC intrinsic safety inputs / outputs with line fault monitoring and error indication and LED status for each channel
- Module in zone 1 replaceable on tension (Hot swap)
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The logical input / output module 9470/32 for zone 1 has 16 channels that can be used in pairs for ex i as input for contacts and initiators Namur (EN 60947-5-6) or as output for light lights and Low Power solenoid valves. 8 inputs can be used for frequencies up to 20 kHz, 4 for detecting direction of rotation.
References Manufacturer: 210447
| Ambiant temperature | -40 ° C to + 80 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | Atex.iecex |
| Material | Polyamide |
| Certificat_atex-en_us | DEKRA 12 ATEX0099 X |
| Certificat_iecex-en_us | IECEX DEK 12.0044X |
| Body colors | White |
