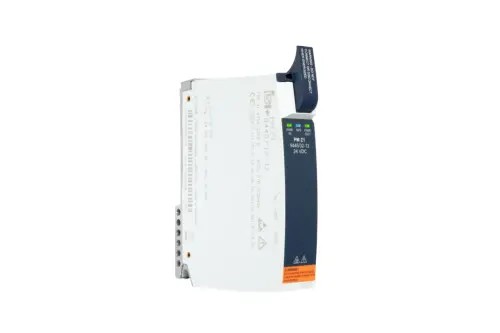

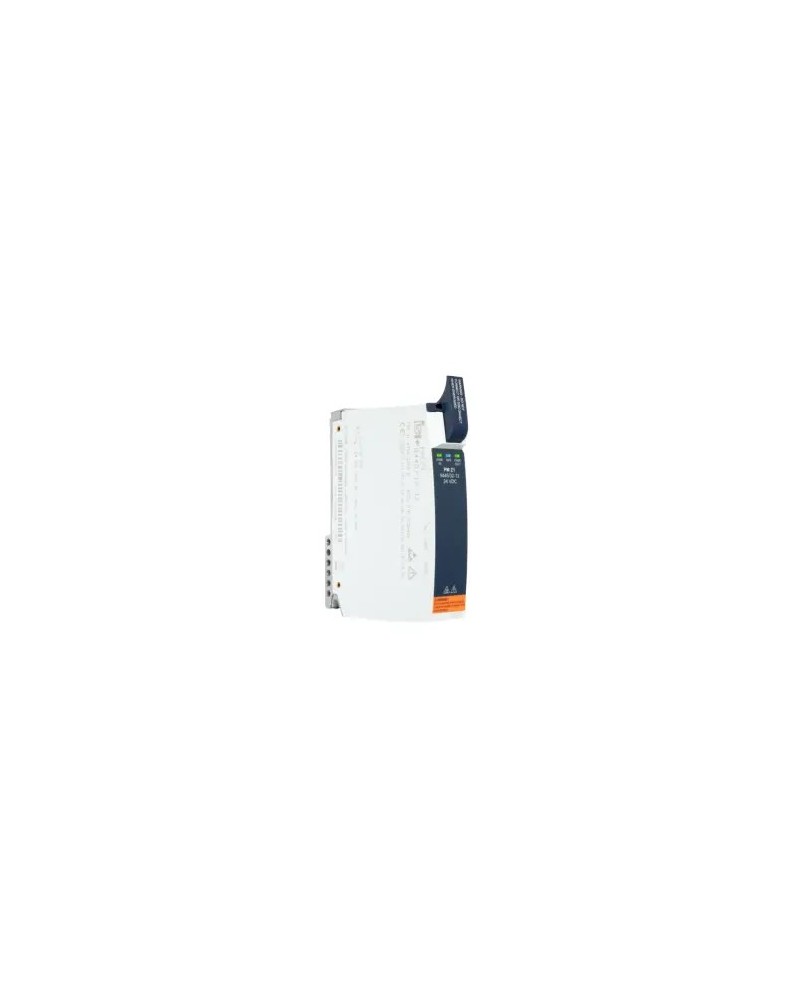

The POWER 9445/32 module is used for intrinsic safety feeding from CPU 9442/32 and up to 16 I / O modules. The connection of the auxiliary energy is carried out via a plug-in terminal with pre-wired connector (accessories). For the redundant feeding of CPU 9442/32 and I / O modules, two Power 9445/32 modules can be plugged into a 9496/35 base.
References Manufacturer: 279965
- Brand
- R. Stahl
- Reference
- STL0284
- ATEX zone
- Zone 1/2
- Ambiant temperature
- -40 ° to + 70 °
- Temperature class
- T4
- Warranty
- 2¨
- Feed
- 24V DC
- Waterproofing protection (IP)
- Ip30
- Application / usage
- ATEX zone
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- Atex.iecex
- Material
- Polyamide
- Certificat_atex-en_us
- PTB 17 ATEX 2026 x
- Certificat_iecex-en_us
- PTB 17 ATEX 2026 x
- Body colors
- White
