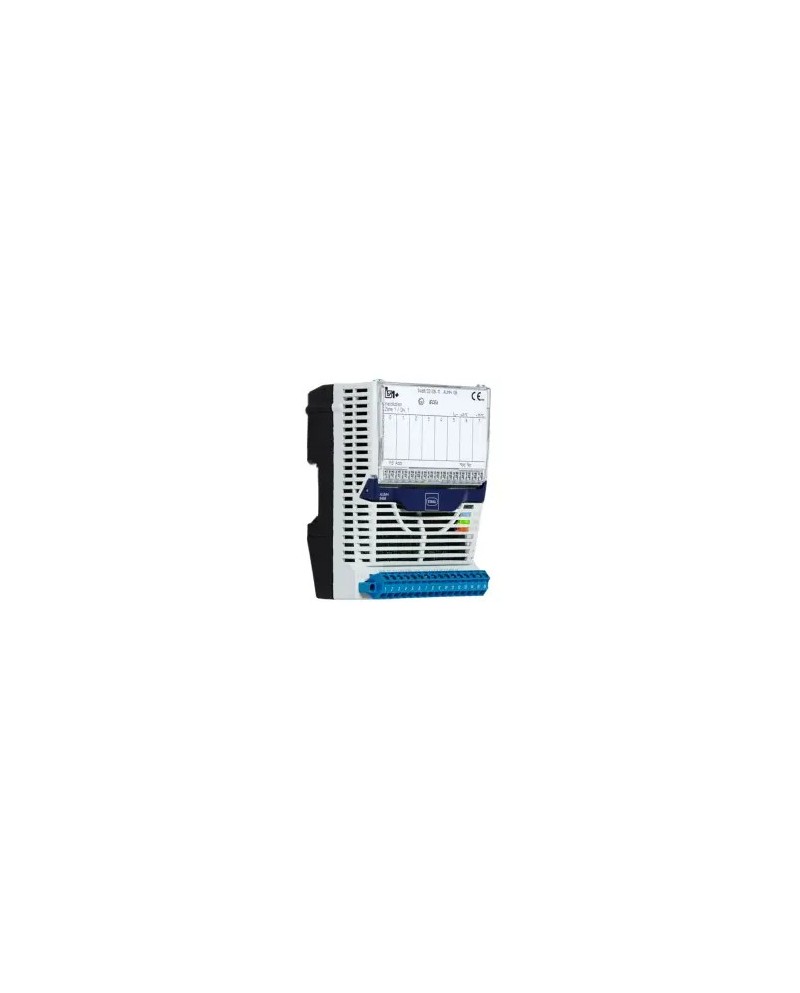

HART Universal Analog Module for Zone 1 Series 9468/32
- IP30
- ambient temperature -40 ° C ... +80 ° C
- Zones: 1.2
- 8 channels that can be used individually as input or output
- IC IIC intrinsic safety inputs / outputs with line fault monitoring and error indication and LED status for each channel
- Module in zone 1 replaceable on tension (Hot swap)
- ambient temperature -40 ° C ... +80 ° C
- Zones: 1.2
- 8 channels that can be used individually as input or output
- IC IIC intrinsic safety inputs / outputs with line fault monitoring and error indication and LED status for each channel
- Module in zone 1 replaceable on tension (Hot swap)
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The universal analog module HART 9468/32 for zone 1 has 8 channels that can be used individually for the EX composing operation of 2/3 conductors HART transmitters, transmitters with 4 conductors or control valves / Positioners with 0/4 ... 20 mA signals. HART communication is carried out in a bidirectional way
References Manufacturer: 210659
| Ambiant temperature | -40 ° C to + 80 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip30 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50hz |
| Material | Polyamide |
| Certificat_atex-en_us | DEKRA 12 ATEX0173 X |
| Certificat_iecex-en_us | IECEX DEK 12.0054X |
| Body colors | White |
