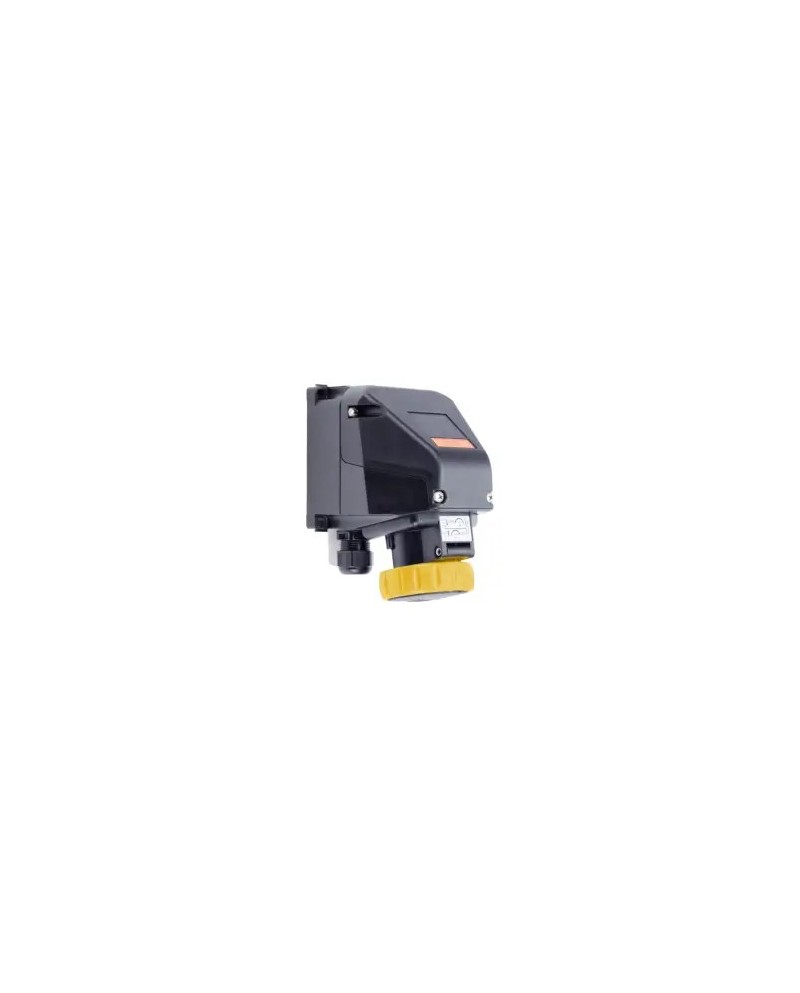

Compact murals 16 A series 8572/13
- IP66
- Ambient temperature: -50 ° C to + 65 ° C
- Assigned voltage of use AC 100 ... 130 V AC
- Low voltage
- • Reduced dimensions
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
- Ambient temperature: -50 ° C to + 65 ° C
- Assigned voltage of use AC 100 ... 130 V AC
- Low voltage
- • Reduced dimensions
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Takes of R. Stahl's new 8572/13 series are 16 A compact outlets for voltages up to 277 V. Self-cleaning lamellays are guaranteed optimum electrical contact. A reduced dimension and a stamped housing are prerequisites for fast electrical installation.
References Manufacturer: 242336,242335,242334,242339
| Ambiant temperature | -50 ° C to +65 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 100-240V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 16 ATEX 1015 |
| Certificat_iecex-en_us | IECEX PTB 16.0027 |
| Body colors | Black |
| 200v AC | 1 |
