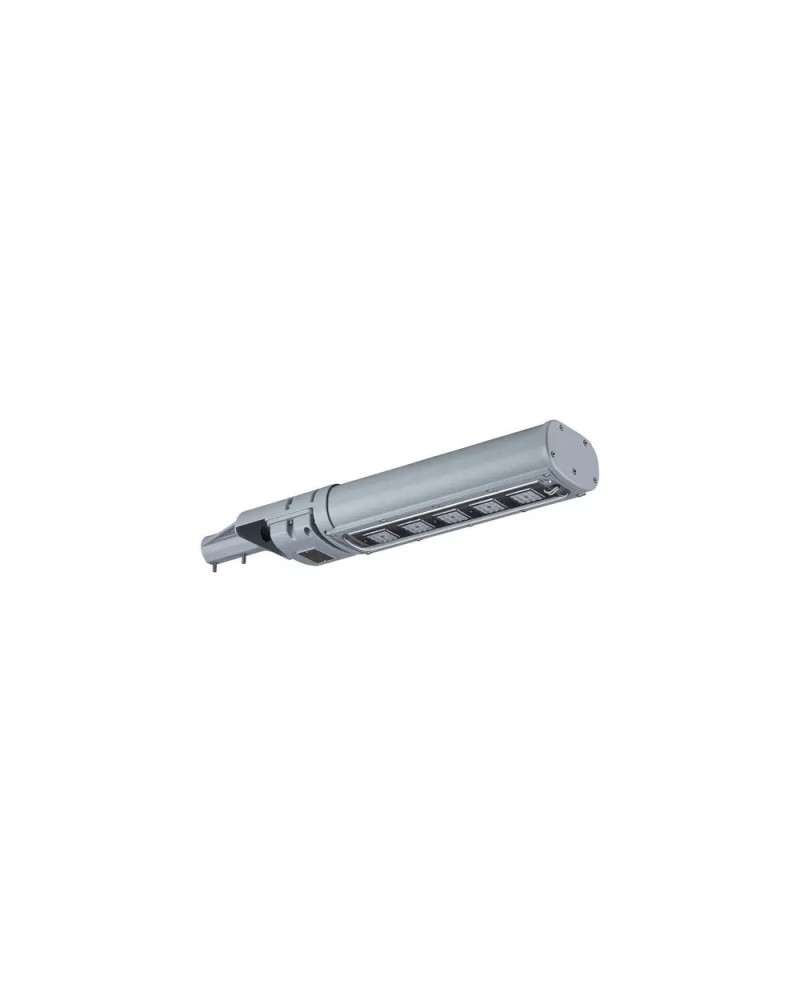

WL84 Pad LED LED Lighting for Zone 1
- IP66 & 67 -IK10
- LED ultra long duration and high efficiency
- High performance 3065 lm output level
- BASE CONSOMATION (24W)
- Easy installation and maintenance
- Emergency lighting variants
- Large operating temperature -40 ° C to + 55 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High performance 3065 lm output level
- BASE CONSOMATION (24W)
- Easy installation and maintenance
- Emergency lighting variants
- Large operating temperature -40 ° C to + 55 ° C
- 5 years warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan Linear Spigot range is designed to modernize existing fluorescent pole installations or for new post mounting applications in dangerous areas. Fittings or for use in new facilities in dangerous zone. The built-in spindle support is designed to fit posts up to 42 mm in diameter and is fully wrapped up for the protection of the environment. All Spartan luminaires are designed and manufactured in the United Kingdom and benefit from a 5-year warranty, the best sector.
References Manufacturer: SPX-WL84-SP, SPX-WL84-EMX25-SP
| Ambiant temperature | -40°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | Cml14atex3119 |
| Certificat_iecex-en_us | IECEX CML 15.0001 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 24w |
| Light power | 3065lm |
| Shock resistance index | Ik10 |
| Mounting type | On mast |
