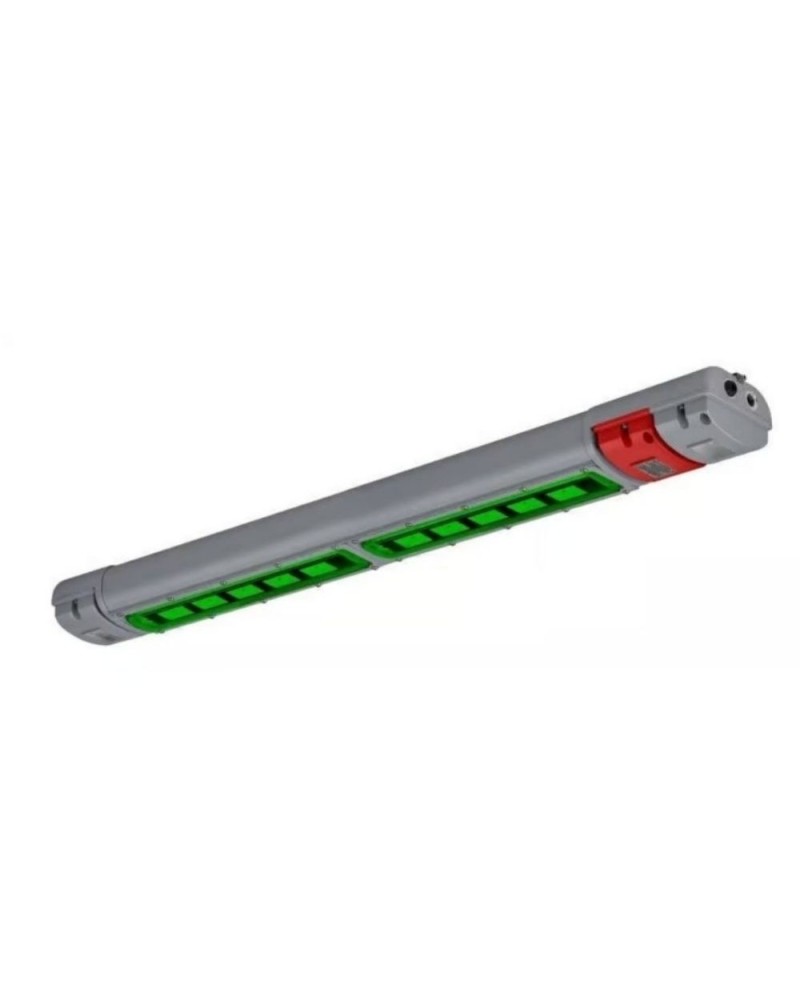

LED Luminaire Spartan Safety Shower WL168 Zone 1 - A2S

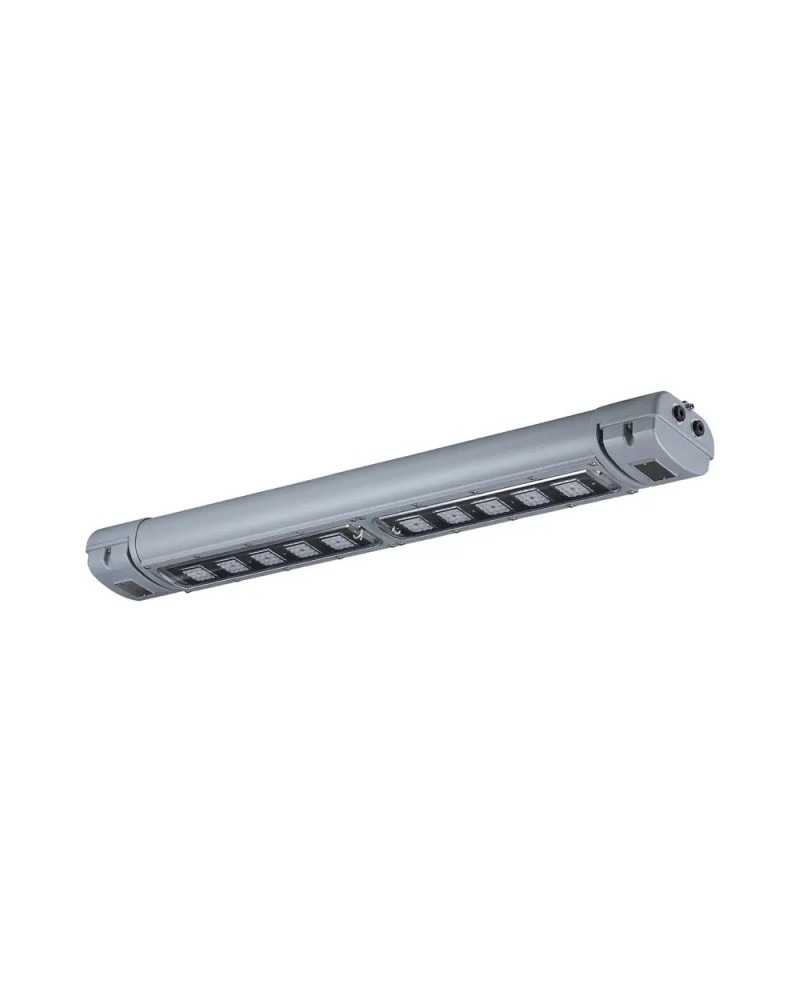

Linear Luminaire LED Spartan Safety Shower WL168 for Zone 1

Name: Linear Luminaire LED Spartan Safety Shower WL168 for Zone 1
Brand: RAYTEC
SKU: RTC0012

LED ultra long duration
- High brightness LED
- Fully retrobable
- Easy installation and maintenance
- Extended operating temperature -40 ° to + 60 ° (-20 ° to + 50 ° for emergency variants)

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The Spartan Linear range is designed for new facilities in dangerous areas or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL168 Linear is globally certified for all zone applications 1. The overall dimensions, mounting centers and cable glands are compatible with 2x36W common fluorescents, with a luminous flux and a light distribution offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a 10-year and over life while providing a luminous flux up to 6,240 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.

References Manufacturer: SPX-WL168-G, SPX-WL168-EMX25-G

Ambiant temperature	-40 ° to + 60 ° C
Temperature class	T6
Warranty	5 year warranty (s)
Waterproofing protection (IP)	Ip66.ip67
Application / usage	ATEX zone
ATEX zone	Zone 1/21
Gas class	IIC
ATEX protection mode	Ex e (increased security)
Certificates	ATEX.CE.CERTIF_ABS.CERTIF_UKCA.IECEx
Frequency (Hz)	50 / 60hz
Material	Aluminum Marine Quality
Certificat_atex-en_us	Cml14atex3119
Certificat_iecex-en_us	Iecexcml15.0001
Body colors	Silver (RAL 9006)
Light source	LED
Color temperature	6500k
Power	24w
Light power	6130lm
Shock resistance index	Ik10
