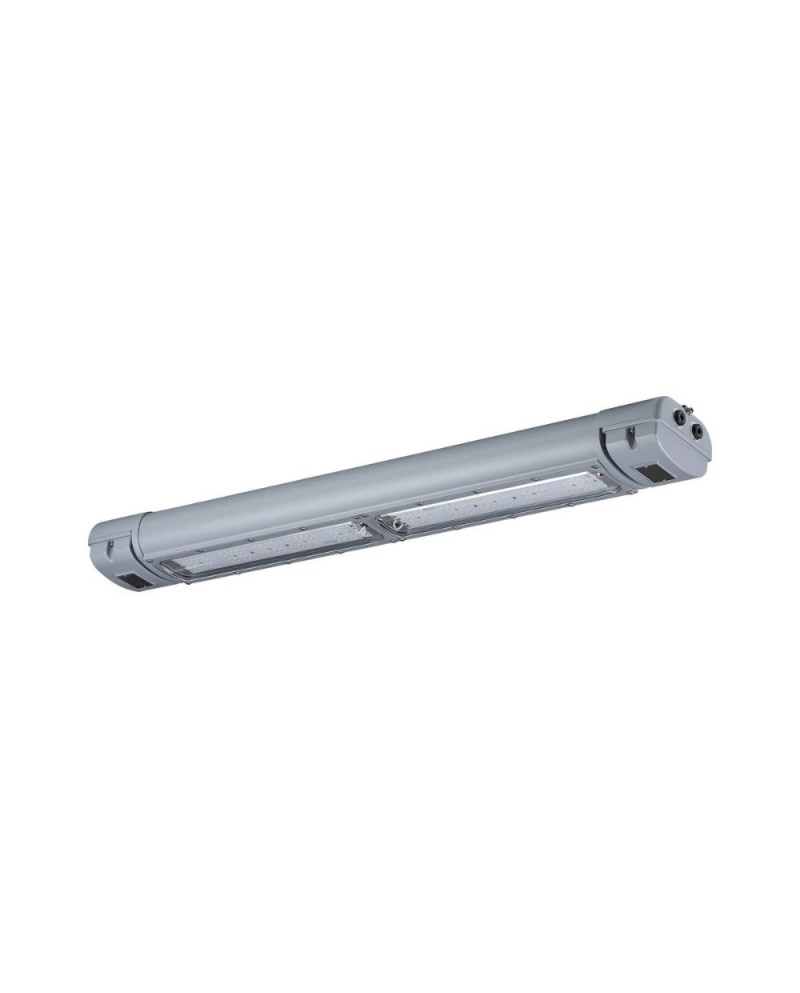

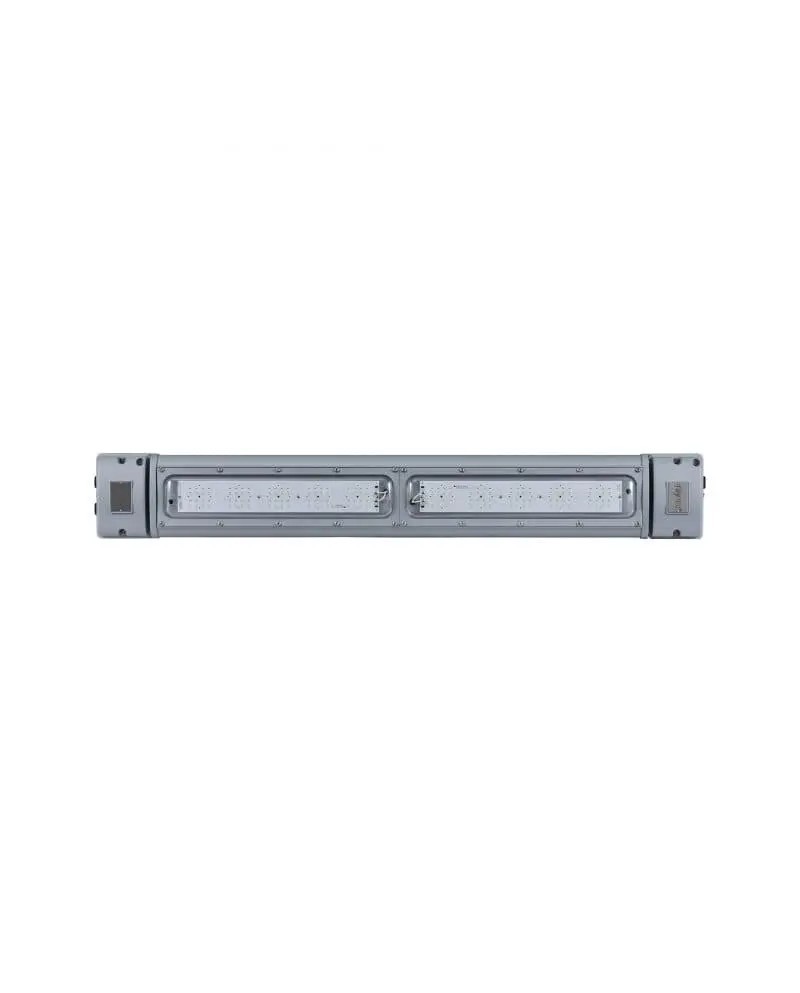

The Spartan Linear range is designed for new facilities in ATEX zone or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL168 Linear is globally certified for all zone 2. Applications Overall dimensions, mounting centers and cable glands are compatible with 2x36W common fluorescents, with a luminous flux and a light distribution offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a life of 10 years and more while providing a luminous flux up to 7,048 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPZ-WL168, SPZ-WL168-EMX25, SPZ-WL168-LL, SPZ-WL168-1500
- Brand
- RAYTEC
- Reference
- RTC0016
- ATEX zone
- Zone 2/22
- Ambiant temperature
- -40 ° to + 60 ° C
- Temperature class
- T6
- Warranty
- 5 year warranty (s)
- Feed
- 12V AC / DC
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- ATEX.CERTIF_ABS.IECEx.UKCA
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum Marine Quality
- Certificat_atex-en_us
- Cml15atex4138
- Certificat_iecex-en_us
- IEC EX CML15.0068
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 24w
- Charger
- 1¨
- Light power
- 12260lm
- Shock resistance index
- Ik10
- Cable entry (s)
- 2xm20
- Zone 1/21
- 1
- Aluminum
- 1
- 110-254V AC
- 1
- 49w
- 1
- T4
- 1
- 7048lm
- 1
