- ATEX Certified and IEC Ex - Zone 2/22
- Ultra long duration LED
- High performance exit level 3524 lm
- Low consumption: 24W
- Easy installation and maintenance
- Large operating temperature -40 ° to + 55 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")

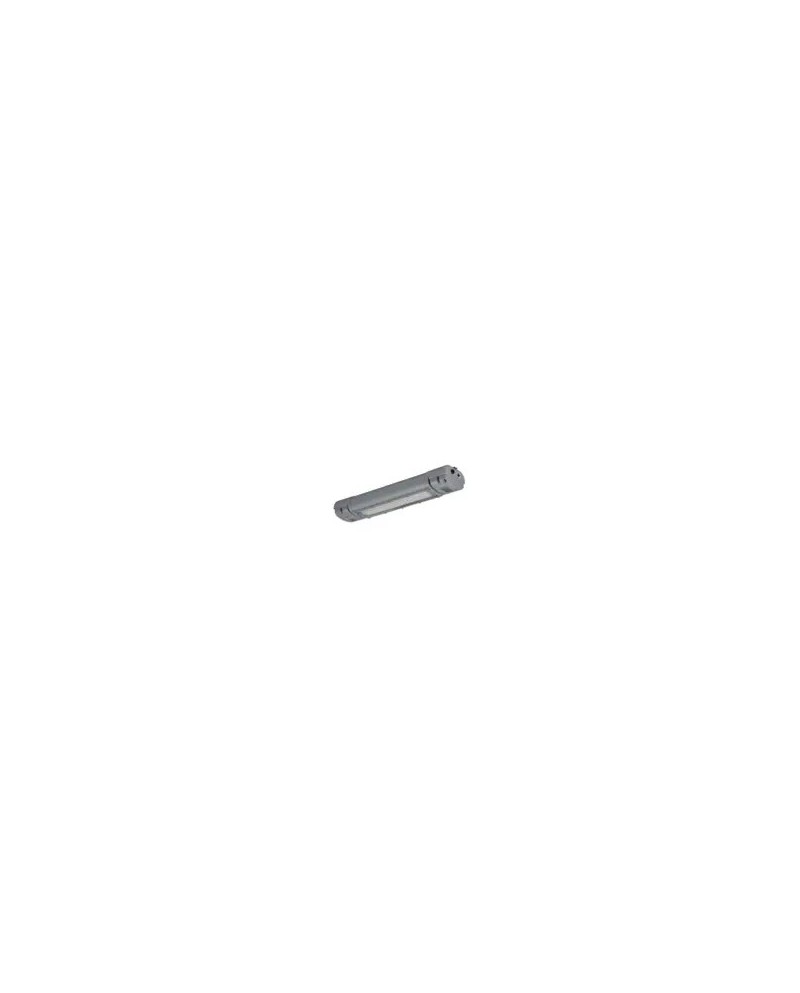

The Spartan Linear range is designed for new facilities in ATEX zone or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL84 Linear is globally certified for all zone 2. Applications. The overall dimensions, mounting centers and cable glands are compatible with 2x18W common fluorescents, with a luminous flow and A distribution of light also offering a direct replacement. The CoolXtrude ™ Thermal Management Technology provides a life of 10 years and more while providing a luminous flux up to 3,524 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
| Ambiant temperature | -40 ° to + 60 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 12V AC / DC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_ABS.CERTIF_UKCA.IECEx |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | Cml15atex4138 |
| Certificat_iecex-en_us | IEC EX CML15.0068 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 24w |
| Charger | 1¨ |
| Light power | 3524lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
| Zone 2/22 | 1 |
| 110-254V AC | 1 |
| 3065lm | 1 |
