- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- High performance exit level: 6130lm
- Low consumption: 49W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")

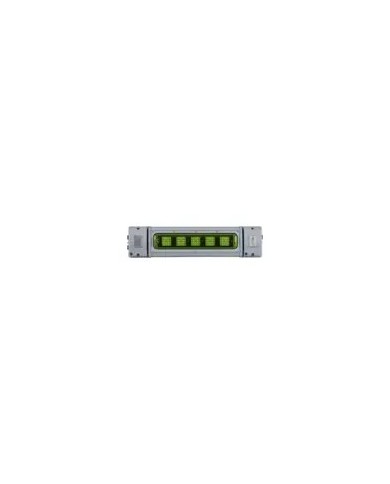

The Spartan Linear range is designed for new facilities in dangerous areas or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL168 Linear is globally certified for all zone applications 1. The overall dimensions, mounting centers and cable glands are compatible with 2x36W common fluorescents, with a luminous flux and a light distribution offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a 10-year and over life while providing a luminous flux up to 6,240 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
| Ambiant temperature | -40 ° to + 60 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex of |
| Certificates | ATEX.CERTIF_ABS.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | Cml14atex3119 |
| Certificat_iecex-en_us | Iecexcml15.0001 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 49w |
| Light power | 6130lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
| Ex e (increased security) | 1 |
