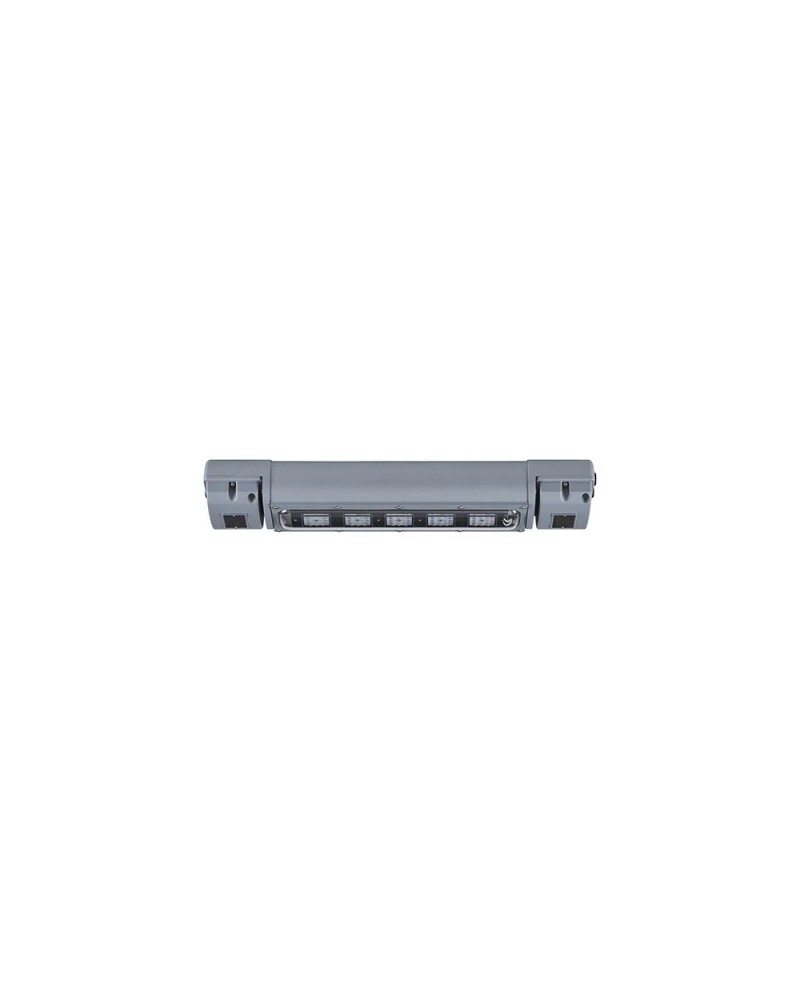

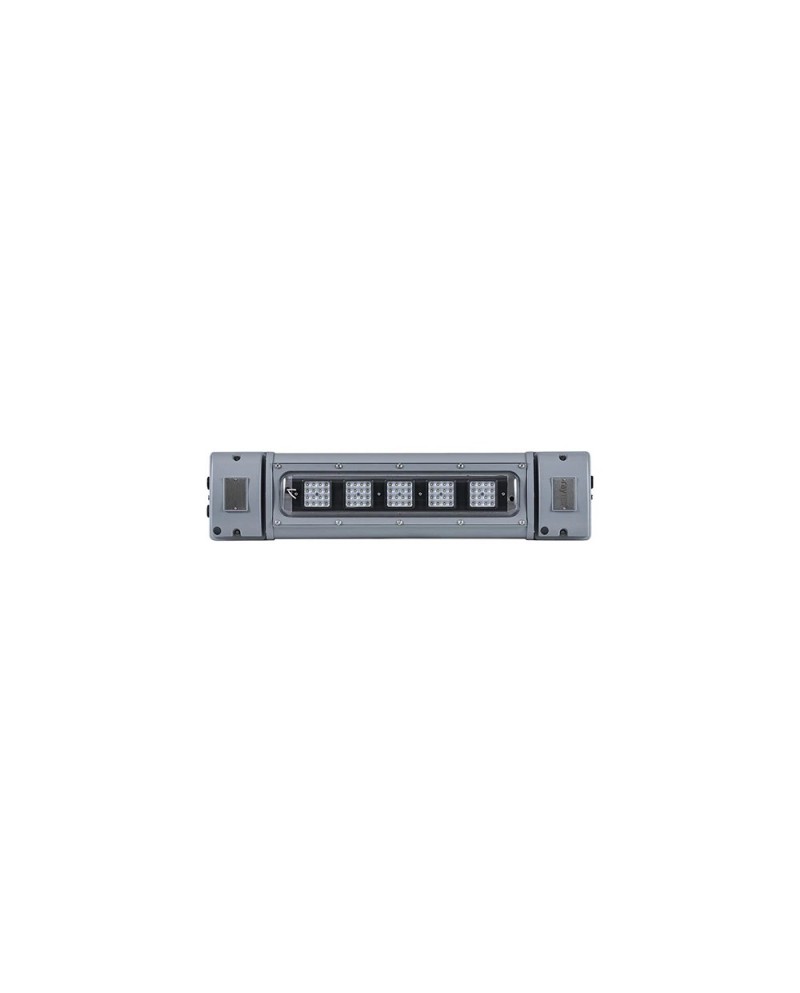

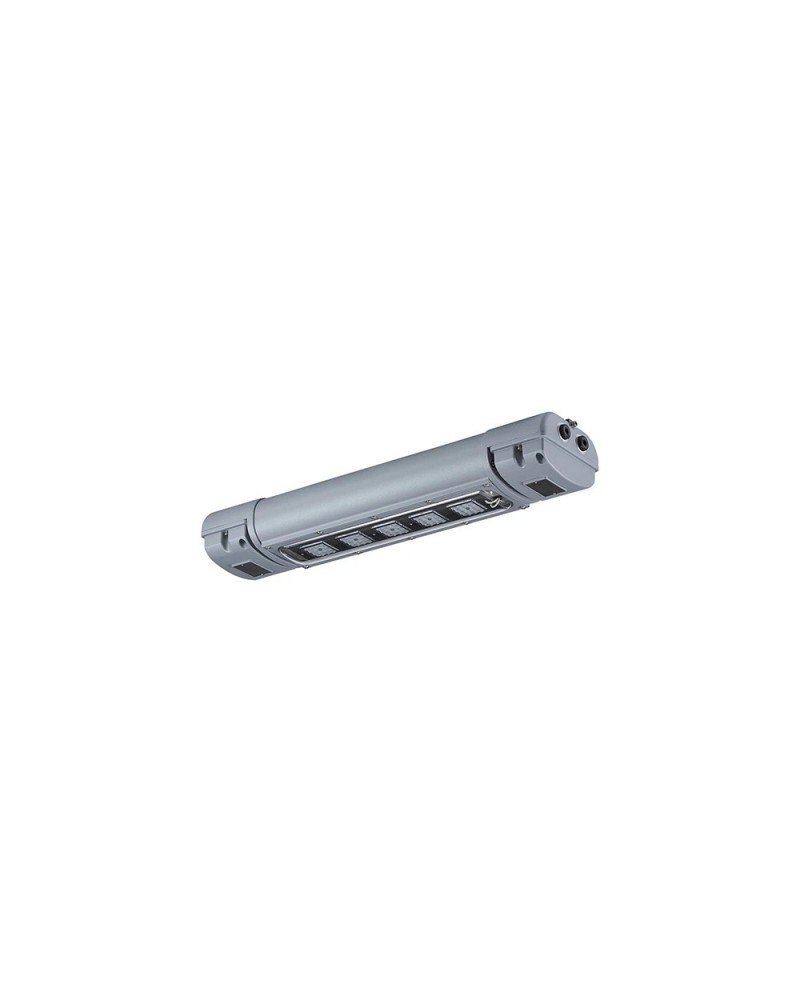

LED LED Spartan WL84 Linear Lighting for Zone 1
- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- High performance exit level: 3065 lm
- Low consumption: 24W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
- Ultra long duration LED
- High performance exit level: 3065 lm
- Low consumption: 24W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan Linear range is designed for new facilities in ATEX zone or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL84 Linear is generally certified for all zone applications 1. The overall dimensions, mounting centers and cable glands are compatible with 2x18W common fluorescents, with a luminous flow and A distribution of light also offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a 10-year-old and more service life while providing a luminous flux up to 3,065 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPX-WL84, SPX-WL84-EMX25, SPX-WL84-LL, SPX-WL84-1200, SPX-WL84-1200-EMX25, SPX- WL84-WB
| Ambiant temperature | -40 ° to + 60 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 100-240V AC |
| Waterproofing protection (IP) | Ip67.ip68 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_ABS.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | Cml14atex3119 |
| Certificat_iecex-en_us | Iecexcml15.0001 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 24w |
| Charger | 1¨ |
| Light power | 3065lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
| Ip66.ip67 | 1 |
| 110-254V AC | 1 |
| Ex d (explosion) | 1 |
| T6 | 1 |
| -20 ° C to + 50 ° C | 1 |
