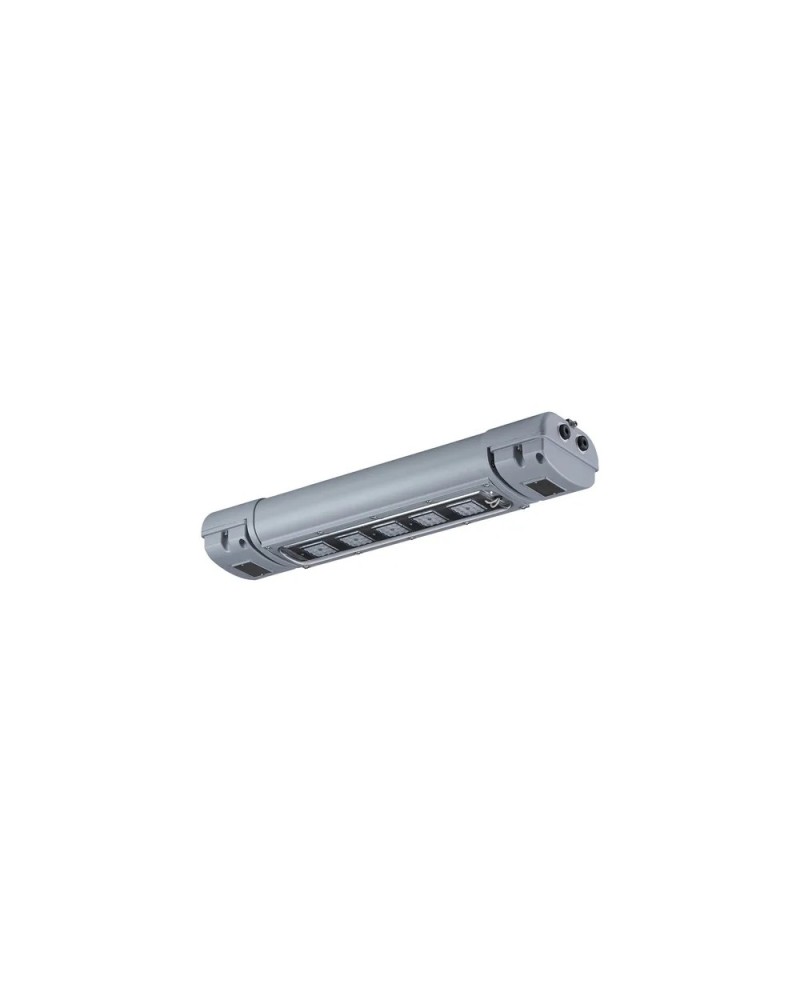

Linear light luminaire series WL84 LED -A2S series

LED LED Light LED Strong Power Spartan WL84 for Zone 21

Name: LED LED Light LED Strong Power Spartan WL84 for Zone 21
Brand: RAYTEC
SKU: RTC0098

- IP66 & 67 -IK10
- LED ultra long duration and high performance 6130 lm
- BASE CONSOMATION (48W)
- Easy installation and maintenance
- Variant Latty Emergency
- Large operating temperature -40 ° C to + 60 ° C
- 5 years warranty

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The Spartan Linear High Output range is an ideal solution for new installations in dangerous areas, offering twice as many lumens as the standard linear Spartan while maintaining the same appearance and feeling of the luminaire. The increase in power means that fewer luminaires are needed in a facility with traditional linear luminaires, while Spartan Linear High Output can also be used as a cost-effective alternative to low bay lights.

References Manufacturer: SPZ-WL84-HO-Z21, SPZ-WL84-HO-EMX25-Z21

Ambiant temperature	-40 ° to + 60 ° C
Temperature class	T4
Warranty	5 year warranty (s)
Feed	110-254V AC
Waterproofing protection (IP)	Ip66.ip67
Application / usage	ATEX zone
ATEX zone	Zone 1/21
Gas class	IIC
ATEX protection mode	Ex of
Certificates	ATEX
Frequency (Hz)	50 / 60hz
Material	Aluminum Marine Quality
Body colors	Silver (RAL 9006)
Light source	LED
Color temperature	6500k
Power	48w
Light power	6130lm
Shock resistance index	Ik10
