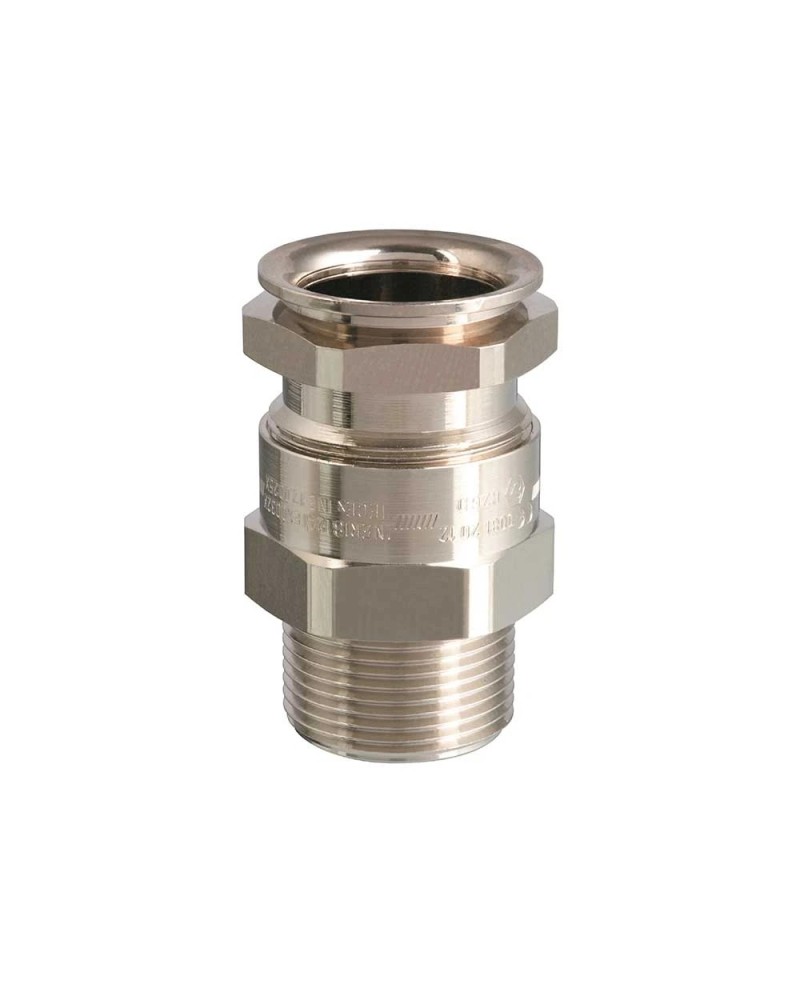

Cable gland ADE 1F2 nickel-plated brass

Focusable safety:
- ATEX and IECEX certifications
- Many other international certifications
- Usable safely in zones 1, 2, 21 and 22
- High protection index IP66 / IP68


Performance and practical:
- Simple and fast installation
- Wide allowable ambient temperature range
- Proven reliability in severe industrial environments
- Available in the form of kits, with associated accessories
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The ADE 1F2 cable glands connect a non-armed cable or shielded cable to an ex d, ex, ex, ex, ex, ex, ex, or ex P p unit in areas at risk of explosions. A wide range of threads is available, from M12 to M110 EN ISO or 1/4 '' to 4 '' in NPT, to cover all cable sizes.
References Manufacturer: CAP806404V1, CAP806404V1K2, CAP806404V1K3, CAP806404V1K4, CAP806409V1, CAP806409V1K1, CAP806409V1K2, CAP806504V1, CAP806504V1K1, CAP806504V1K2, CAP806504V1K3, CAP806504V1K4, CAP806509V1, CAP806509V1K1, CAP806509V1K3, CAP806594V1, CAP806594V1K1, CAP806594V1K2, CAP806594V1K3, CAP806599V1, CAP806599V1K1, CAP806599V1K3, CAP806604V1, CAP806604V1K1, CAP806604V1K3, CAP806604V1K4, CAP806609V1, CAP806609V1K1, CAP806609V1K2, CAP806609V1K3, CAP806664V1, CAP80664V1K1, CAP806664V1K3, CAP806664V1K4, CAP806669V1, cap806669v1k1, cap80669v1k2, cap80669v1k3, cap806674v1k1, cap806674v1k2, CAP806674V1K3, CAP806679V1, CAP806679V1K1, CAP806679V1K2, CAP806679V1K3, cap806694v1, cap806694v1k1, cap806694v1k3, cap806694v1k4, cap806699v1k1, CAP80699V1K2, CAP80699V1, CAP806704V1K1, CAP806704V1K2, CAP806704V1K4, CAP806709V1, CAP806709V1K1, CAP806709V1K3, CAP806774V1, CAP806774V1K1, CAP806774V1K2, CAP806774V1K3, CAP80674V1K4, CAP806779V1, CAP806779V1K2, CAP806779V1K3, CAP806794V1, CAP806794V1K1, CAP806794V1K3, CAP806794V1K4, CAP806799V1, CAP806799V1K1, CAP806799V1K2, CAP806804V1, CAP806804V1K1, CAP806804V1K3, CAP806804V1K4, cap806809v1, cap806809v1k2, cap80680v1k3, cap806894v1, cap806894v1k2, CAP806894V1K3, CAP806899V1, CAP806899V1K1, CAP806899V1K2, CAP806904V1, cap806904v1k1, CAP806904V1K3, CAP806904V1K4, CAP806909V1, CAP806909V1K2, CAP806909V1K3, CAP806994V1K1, CAP806994V1K3, CAP806994V1K4, CAP806999V1, CAP806999V1K1, CAP806999V1K3, CAP807004V1, CAP807004V1K1, CAP807004V1K3, CAP807009V1, CAP807009V1, CAP807009V1K2, CAP807009V1K3, CAP807084V1, CAP807084V1K1, CAP807084V1K2, CAP807084V1K4, CAP807089V1, CAP807089V1K2, CAP807089V1K3, CAP807094V1, CAP807094V1K2, CAP807094V1K3, CAP807094V1K4, CAP807099V1, CAP807099V1K1, CAP807099K2, CAP807204V1, CAP807204V1K1, CAP807204V1K2, CAP807204V1K4, CAP807209V1, CAP807209V1K1, CAP807209V1K3, CAP807294V1, CAP807294V1K1, CAP807294V1K2, CAP807294V1K3, CAP807299V1, CAP807299V1K1, CAP807299V1K2, CAP807304V1, CAP8079V1K2, CAP807304V1, CAP807304V1K1, CAP807304V1K2, CAP807304V1K4, CAP807309V1, CAP807309V1K1, CAP807309V1K2, CAP807309V1K3, CAP807504V1, CAP807504V1K2, CAP807504V1K3, CAP807504V1K4, CAP807509V1, CAP807509V1K1, CAP807509V1K2, CAP807594V1, CAP807594V1K1, CAP807594V1K2, CAP807594V1K3, CAP807594V1K4, CAP807599V1, CAP807599V1K2, CAP807599V1K3, CAP807604V1, CAP807604V1K1, CAP807604V1K2, CAP807604V1K4, CAP807609V1, CAP807609V1K1, CAP807609V1K2, CAP807609V1K3, CAP807704V1, CAP807704V1K1, CAP807704V1K3, CAP807709V1, CAP807709V1K1, CAP807709V1K2, CAP807709V1K3, CAP808404V1, CAP808404V1K2, CAP808404V1K3, CAP808404V1, CAP808409V1, CAP808409V1K1, CAP808409V1K3, CAP808504V1, CAP808504V1K2, CAP808504V1K3, CAP808509V1, CAP808509V1, CAP808509V1K2, CAP808594V1, CAP808594V1K1, CAP808594V1K2, CAP808594V1K4, CAP808599V1, CAP808599V1K2, CAP808599V1K3, CAP808604V1, CAP808604V1K2, CAP808604V1K3, CAP808609V1, CAP808609V1K1, CAP808609V1K2, CAP808609V1K3, CAP808664V1K1, CAP808664V1K2, CAP808664V1K3, CAP808664V1K4, CAP808669V1, CAP80869V1K1, CAP808669V1K3, CAP808674V1, CAP808674V1K1, CAP808674V1K2, CAP808674V1K4, CAP808679V1, CAP808679V1K1, CAP808679V1K2, CAP808694V1, CAP808694V1K1, CAP808694V1K2, CAP808694V1K3, CAP808694V1K4, CAP808699V1K1, CAP808699V1K3, CAP808704V1, CAP808704V1K1, CAP808704V1K2, CAP808704V1K4, CAP808709V1, CAP808709V1K1, CAP808709V1K3, CAP808774V1, CAP808774V1K1, CAP80874V1K2, CAP808774V1K4, CAP808779V1, CAP808779V1K1, CAP80879V1K2, CAP80879V1, CAP808794V1K1, CAP808794V1K2, CAP808794V1K3, CAP808799V1, CAP808799V1K1, CAP808799V1K3, CAP808804V1, cap808804v1k1, CAP808804V1K3, CAP808804V1K4, CAP808809V1, CAP808809V1K2, CAP808809V1K2, CAP808809V1K3, CAP808894V1, CAP808894V1K2, CAP80894V1K3, CAP808894V1K4, CAP808899V1, CAP80899V1K1, CAP80899V1K3, CAP808904V1, CAP808904V1K1, CAP808904V1K3, CAP808909V1, CAP808909V1K1, CAP808909V1K3, CAP808994V1, CAP808994V1K1, cap808994v1k2, CAP808994V1K4, CAP808999V1, CAP808999V1K1, CAP808999V1K3, CAP809004V1, CAP809004V1K1, CAP809004V1K3, CAP809004V1K4, CAP809009V1, CAP809009V1K1, CAP809009V1K2, CAP809094V1, CAP809094V1K1, CAP809094V1K3, CAP809094V1K4, CAP8099V1, CAP8099V1K2, CAP8099V1K3, CAP809204V1, CAP809204V1K1, CAP809204V1K2, CAP809204V1K3, CAP809204V1K4, CAP809209V1, CAP809209V1K2, CAP809209V1K3, CAP809294V1, CAP809294V1K1, CAP809294V1K2, CAP809294V1K3, CAP809299V1, CAP809299V1K1, CAP809299V1K2, CAP809299V1K3, CAP809404V1, CAP809404V1K1, CAP809404V1K3, CAP809404V1K4, CAP809409V1, CAP809409V1K1, CAP809409V1K2, CAP809409V1K3, CAP809494V1K1, CAP809494V1K2, CAP809494V1K3, CAP8094949K4, CAP809499V1K1, CAP809499V1K2, CAP809504V1, CAP809504V1K1, CAP809504V1K2, CAP809504V1K4, CAP809509V1, CAP809509V1K1, CAP809509V1K2, CAP809509V1K3, CAP809594V1, CAP809594V1K1, CAP809594V1K3, CAP809594V1K4, CAP809599V1, CAP809599V1K1, cap809599v1k2, CAP809604V1, CAP809604V1K1, CAP809604V1K2, CAP809604V1K3, CAP809604V1K4, CAP809609V1, CAP809609V1K1, CAP809609V1K3, CAP809704V1, CAP809704V1K1, CAP809704V1K2, CAP809704V1K3, CAP809709V1, CAP809709V1K1, CAP809709V1K3
Ambiant temperature -60°C to +140°C
Protection étanchéité (IP) IP66.IP68
Application/Usage Zone ATEX
Zone ATEX Zone 1/2
Classe de gaz IIC
Mode de protection ATEX Ex d (antidéflagrant)
Certificats ATEX.IECEx
Matière Laiton nickelé
Certificat_ATEX-fr_FR INERIS 12 ATEX 0032X
Certificat_IECEx-fr_FR IECEx INE 12.0025X
Taille de filetage M12
Couleurs corps Gris métallisé
Cable type non armé
Type de filetage ISO
Reference EAT0500
