List of products by brand STEUTE

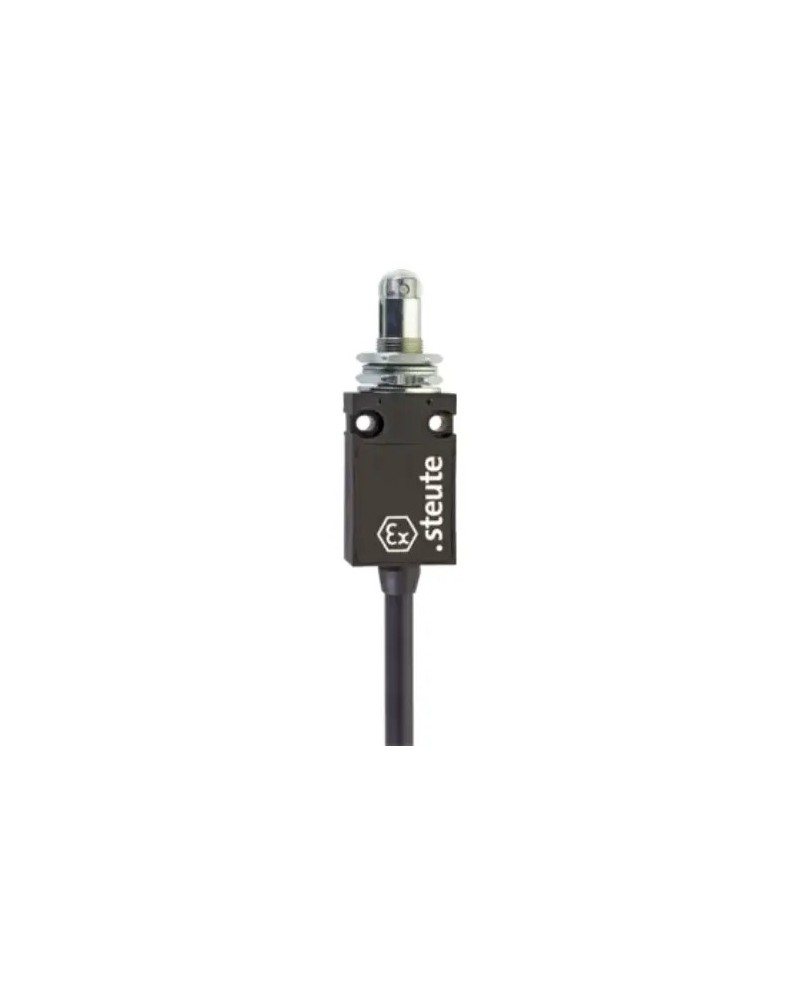

EXM 14 EN
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- with connection cable
- Actuator: Front fixing roller pusher FR
- max actuation speed. 0.5 m / s with a vertical attack angle of 25 °
- Metal roller
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- with connection cable
- Actuator: Front fixing roller pusher FR
- max actuation speed. 0.5 m / s with a vertical attack angle of 25 °
- Metal roller
- Attention: Please indicate international approvals necessary!
The exm 14 EN 1Ö / 1S - 2M position switch is designed for industrial applications in classified environments, providing accurate positions of positions. With a range of 2 meters, this switch allows a flexible installation while ensuring a secure lock thanks to its 1Ö / 1S system. Its robust construction makes it able to withstand difficult conditions, thus guaranteeing reliable and secure operation.
References Manufacturer: 1189206,1189207,1175492,1178551
STE0204
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 KU
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- With Actuator Connection Cable: KU Ball Push
- max actuation speed. 0.5 m / s with a 20 ° vertical attack angle
- Vertical and side actuation possible
- Actuator with stainless steel ball
- Exact Repeatability of Switching Point
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- With Actuator Connection Cable: KU Ball Push
- max actuation speed. 0.5 m / s with a 20 ° vertical attack angle
- Vertical and side actuation possible
- Actuator with stainless steel ball
- Exact Repeatability of Switching Point
- Attention: Please indicate international approvals necessary!
The exm 14 ku 1ö / 1S - 2M position switch is specially designed for use in classified industrial environments, providing accurate and reliable detection of positions. With a range of 2 meters, this switch allows a flexible installation while ensuring a secure lock thanks to its 1Ö / 1S system. Its robust and durable design is adapted to the difficult conditions, making it an ideal choice for applications where security and reliability are essential.
References Manufacturer: 1185368,1184247,1189093,1189094
STE0205
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 PE
- ex switch ex
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Sudden rupture, inverter function
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: Pneumatic pressure element Pressure pressure 0.5 bar
- Attention: Please indicate international approvals necessary!
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Sudden rupture, inverter function
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: Pneumatic pressure element Pressure pressure 0.5 bar
- Attention: Please indicate international approvals necessary!
The exm 14 PE / 0.5 bar 2M pneumatic switch is designed for industrial applications in classified environments, offering reliable solution for pneumatic control. With a 0.5 bar operating pressure and a range of 2 meters, this switch allows a flexible installation while ensuring optimal performance. Its robust construction is suitable for difficult conditions, which makes it ideal for systems requiring precise detection and control.
References Manufacturer: 1182663,1045679,1484920,1187839,1457190,1045678
STE0206
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 R
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: Push with roller r
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Metal roller
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: Push with roller r
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Metal roller
- Attention: Please indicate international approvals necessary!
The exm 14 R 1O / 1S - 2M position switch is designed to provide accurate positions of positions in industrial at-risk environments. With a range of 2 meters, this switch offers installation flexibility while ensuring secure lock with its 1Ö / 1S system. Its robust construction makes it able to withstand difficult conditions, making it an ideal choice for applications where security is paramount.
References Manufacturer: 1173979,1171039,1180460,1189101,1176334
STE0207
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 TF
- Cold resistant up to -40 ° C
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: spring rod with TF steel tip with steel cup in the shape of cap
- Rogus stemming in all directions
- the elasticity of the spring compensates for contact races exceeding the switched angle of 18 °
- Attention: Please indicate international approvals necessary!
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: spring rod with TF steel tip with steel cup in the shape of cap
- Rogus stemming in all directions
- the elasticity of the spring compensates for contact races exceeding the switched angle of 18 °
- Attention: Please indicate international approvals necessary!
The exm 14 TF 1Ö / 1S - 2M / -40 ° C position switch is specially designed for use in at-risk industrial environments, providing accurate positions of positions even at temperatures as low as -40 ° C. With a range of 2 meters, this switch allows a flexible installation while ensuring a secure lock thanks to its 1Ö / 1S system. Its robust and resistant construction ensures reliable operation under difficult conditions, which makes it ideal for demanding applications.
References Manufacturer: 1450885,1189244,1189245,1189137,1158676
STE0208
Data sheet
- Ambiant temperature
- -40 ° to + 60 ° C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 TK
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: spring rod with TK plastic tip
- Plastic tip resistant to abrasion
- Rogus stemming in all directions
- the elasticity of the spring compensates for contact races exceeding the switched angle of 18 °
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: spring rod with TK plastic tip
- Plastic tip resistant to abrasion
- Rogus stemming in all directions
- the elasticity of the spring compensates for contact races exceeding the switched angle of 18 °
- Attention: Please indicate international approvals necessary!
The exm 14 TK 1Ö / 1S - 2M position switch is specially designed for applications in industrial at-risk environments. With a range of 2 meters, this switch ensures precise detection of positions and integrates a secure locking system 1Ö / 1S, thus reducing the risks of accidental starts. Its robust and durable design makes it able to withstand difficult working conditions, thus guaranteeing reliable operation.
References Manufacturer: 1176333,1189246,1189138,1158841
STE0209
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 TL
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: Long spring rod TL
- Rogus stemming in all directions
- spring rod can be shortened in a 30 mm operating field
- precise linear actuation is not necessary
- the elasticity of the spring compensates for contact races exceeding the switched angle of 18 °
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: Long spring rod TL
- Rogus stemming in all directions
- spring rod can be shortened in a 30 mm operating field
- precise linear actuation is not necessary
- the elasticity of the spring compensates for contact races exceeding the switched angle of 18 °
- Attention: Please indicate international approvals necessary!
The exm 14 TL 1Ö / 1S - 2M position switch is designed for use in classified industrial environments, providing reliable detection of positions. With a range of 2 meters, this switch guarantees a flexible installation while integrating a secure locking system 1Ö / 1S, which helps prevent accidental starts. Its robust construction is designed to withstand harsh conditions, making it an ideal choice for applications where security and reliability are essential.
References Manufacturer: 1186536,1189243,1189107,1182414
STE0210
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 VKU
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: VERTICAL BALL PUSH VKU
- Possible actuation in all directions
- max actuation speed. 0.5 m / s with an attack angle of 20 °
- Actuator with stainless steel ball
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: VERTICAL BALL PUSH VKU
- Possible actuation in all directions
- max actuation speed. 0.5 m / s with an attack angle of 20 °
- Actuator with stainless steel ball
- Attention: Please indicate international approvals necessary!
The exm 14 VKU 1Ö / 1S - 2M position switch is designed to ensure accurate detection in risk-based industrial environments. With a range of 2 meters, this switch provides installation flexibility while integrating a 1Ö / 1S secure locking system, minimizing the risk of accidental starts. Its robust and durable construction is adapted to the difficult conditions, which makes it ideal for applications where security and reliability are essential.
References Manufacturer: 1189203,1189204,1189099,1045683
STE0211
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- New
EXM 14 VR
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: VERT VERT GALET PUSH
- Abrasion resistant plastic roll
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: VERT VERT GALET PUSH
- Abrasion resistant plastic roll
- Attention: Please indicate international approvals necessary!
The exm 14 VR 1Ö / 1S - 2M position switch is specially designed for applications in classified industrial environments. With a range of 2 meters, this switch ensures reliable detection of positions and integrates a secure locking system 1Ö / 1S to prevent accidental starts. Its robust design guarantees resistance to difficult conditions, making it an ideal choice for applications where security and reliability are essential.
References Manufacturer: 1189208,1181774,1189102,1189103
STE0212
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 W
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: Fish with sealing cuff W
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: Fish with sealing cuff W
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
The exm 14 W 1Ö / 1S - 2M position switch is designed for classified industrial environments, providing accurate and reliable detection of positions. With a range of 2 meters, this switch allows a flexible installation while integrating a secure locking system 1Ö / 1S, which reduces the risks of accidental starts. Its robust construction is adapted to difficult conditions, ensuring durable and secure operation.
References Manufacturer: 1189184,1189185,1185886,1189091,1184768
STE0213
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 WPH
- Cold resistant up to -40 ° C
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: parallel lever with WPH sealing cuff
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Abrasion resistant plastic roll
- Exact Repeatability of Switching Point
- Cuff for fouling protection
- Suitable for outdoor use in marine environments, for at least 8200 hours at 1 m above sea level, corresponding to typical climatic conditions of one year on the island of Helgoland, in the North Sea in the North Sea
- Attention: Please indicate international approvals necessary!
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: parallel lever with WPH sealing cuff
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Abrasion resistant plastic roll
- Exact Repeatability of Switching Point
- Cuff for fouling protection
- Suitable for outdoor use in marine environments, for at least 8200 hours at 1 m above sea level, corresponding to typical climatic conditions of one year on the island of Helgoland, in the North Sea in the North Sea
- Attention: Please indicate international approvals necessary!
The exm 14 WPH 1Ö / 1S - 5M / -40 ° C position switch is designed for industrial applications in risk environments, providing accurate detection even at low temperatures as -40 ° C. With a range of 5 meters, this switch allows a flexible installation and is equipped with a secure 1Ö / 1S locking system to prevent accidental starts. Its robust and resistant construction ensures reliable operation under difficult conditions, making it an ideal choice for demanding applications.
References Manufacturer: 1338176
STE0215
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65.ip66
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 14 WR
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: roller pusher with WR sealing cuff
- max actuation speed. 0.5 m / s with a vertical attack angle of 25 °
- Metal roller
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: roller pusher with WR sealing cuff
- max actuation speed. 0.5 m / s with a vertical attack angle of 25 °
- Metal roller
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
The exm 14 WR 1Ö / 1S - 2M position switch is designed to ensure accurate detection in industrial at-risk environments. With a range of 2 meters, this switch provides a flexible installation while integrating a secure locking system 1Ö / 1S, thus minimizing the risks of accidental starts. Its robust construction is adapted to difficult conditions, ensuring reliable and durable operation.
References Manufacturer: 1189205,1179495,1187093,1179278
STE0216
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EXM 61 DS
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: adjustable rotary lever DS
- max actuation speed. 0.5 m / s with a 45 ° vertical attack angle
- Abrasion resistant plastic roll
- Rotary lever adjustable in steps from 10 ° to left or right
- Removable actuator at 180 °
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: adjustable rotary lever DS
- max actuation speed. 0.5 m / s with a 45 ° vertical attack angle
- Abrasion resistant plastic roll
- Rotary lever adjustable in steps from 10 ° to left or right
- Removable actuator at 180 °
- Attention: Please indicate international approvals necessary!
The EX EXM 61 DS - 3M position switch is designed for use in classified industrial environments, providing reliable detection of positions within 3 meters. This switch ensures flexible installation and incorporates advanced security features to prevent accidental starts. Its robust construction is suitable for difficult conditions, thus guaranteeing reliable and lasting operation.
References Manufacturer: 1167414
STE0219
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
