List of products by brand STEUTE
Ex 61 tl
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: Long spring rod TL rod steerable in all directions
- spring rod can be shortened in a 30 mm operating field
- precise linear actuation is not necessary
- the spring elasticity compensates for contact races exceeding the max switching angle
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: Long spring rod TL rod steerable in all directions
- spring rod can be shortened in a 30 mm operating field
- precise linear actuation is not necessary
- the spring elasticity compensates for contact races exceeding the max switching angle
- Attention: Please indicate international approvals necessary!
The ex ex 61 TL 1Ö / 1S - 3M position switch is a security feature designed for use in industrial explosion industrial environments.
References Manufacturer: 1189069
STE0105
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
Ex safety switch with separate actuator ex es 98 st
- Ex 1 and 21 zones
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Attention: Please indicate international approvals necessary!
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Attention: Please indicate international approvals necessary!
The EX safety switch with ex es 98 ST-02 separate actuator is a security device designed to ensure the secure operation of equipment in explosive (EX) and at-risk environments. It is equipped with a separate actuator to provide reliable control in areas where risk of explosion or mechanical incidents are present.
References Manufacturer: 1255734,1304203
STE0097
Data sheet
- Ambiant temperature
- -20 ° C to 40 ° C
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip66
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
MP AZ / AZM 415-B30
- for mounting on width profiles 40, 60 or 80 mm
- Thickness of the plate 5 mm
- Mounting a door handle or anti-panic
- Thickness of the plate 5 mm
- Mounting a door handle or anti-panic
The MP AZM 415-B30 mounting plate is designed to facilitate the installation and integration of interlocking devices, in particular the AZM 415-B30 model. This plate ensures stable and durable attachment, ensuring the proper positioning and alignment of the safety components.
References Manufacturer: 1180145,1180143,1181420
STE0072
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
- New

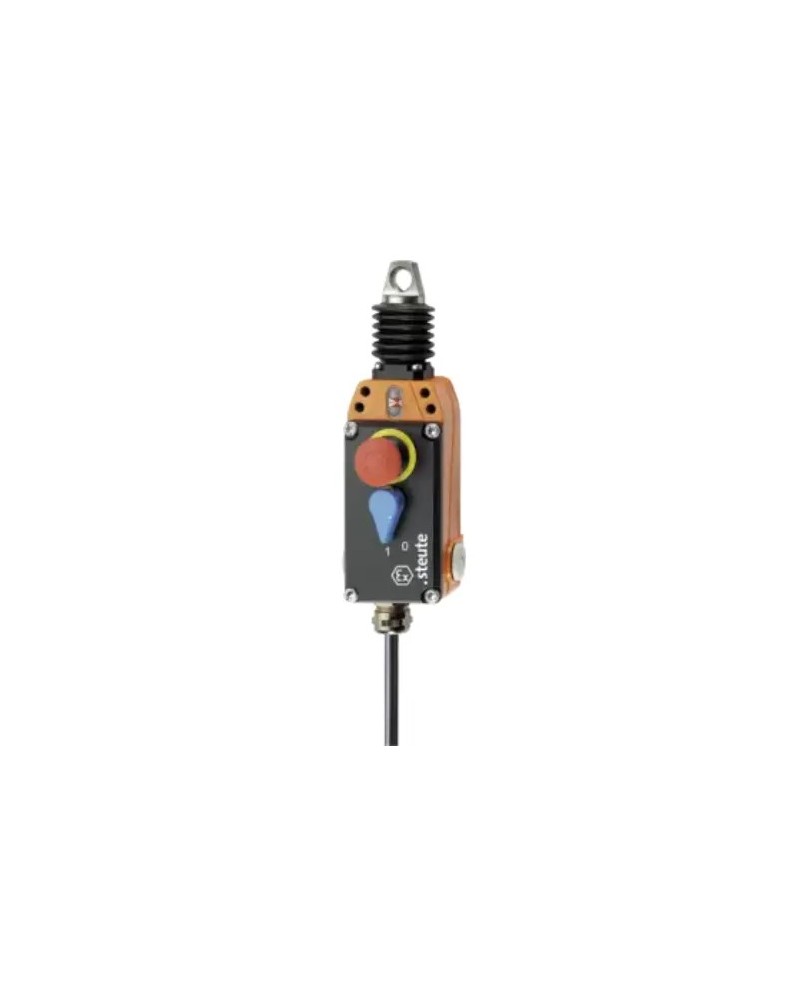

ATEX Emergency Emergency Stop Series Ex ZS 80
- Ex 1 and 21 zones
- Metal housing
- 2 contacts
- with position indicator and emergency stoppout
- Cable length up to 100 m
- Spring force variant: 100 N
- Rotary reset lever and position indicator
- Sealing cuff
- Traction detection and cable breaking
- Attention: Please indicate international approvals necessary!
- Metal housing
- 2 contacts
- with position indicator and emergency stoppout
- Cable length up to 100 m
- Spring force variant: 100 N
- Rotary reset lever and position indicator
- Sealing cuff
- Traction detection and cable breaking
- Attention: Please indicate international approvals necessary!
The EX ZS 80 1Ö / 1S WVD is a cable emergency stop switch designed for high-risk industrial environments, where workers' safety and equipment is essential. It has a 3 meter cable that allows rapid activation in case of emergency. This model is ex certified, making it complies with standards for use in explosive atmospheres areas.
References Manufacturer: 1181373,1187285,1182490,1184746
STE0063
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New

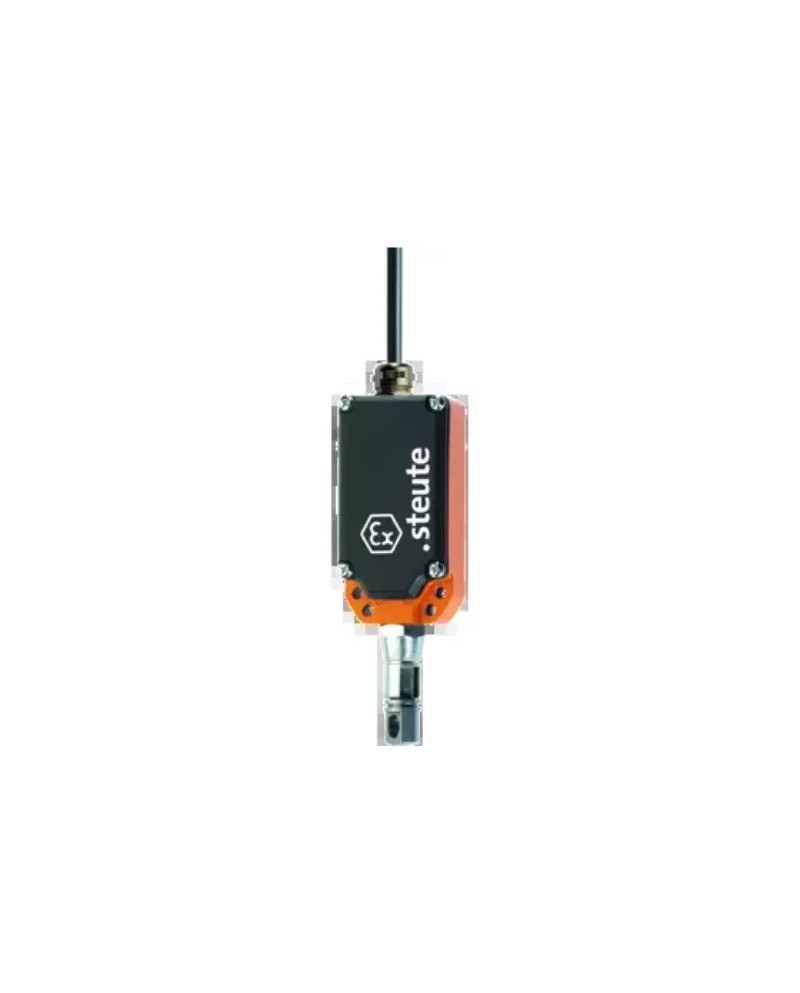

ATEX TIRETTE EXTES EXT ZS 71 Z Series
- Ex 1 and 21 zones
- Metal housing
- Wall mounting
- dependent action: 2 contacts
- Cable Traction Function
- Attention: Please indicate international approvals necessary!
- Metal housing
- Wall mounting
- dependent action: 2 contacts
- Cable Traction Function
- Attention: Please indicate international approvals necessary!
The ex ex z 21 z 1 μ / 1S / 55N - 3M zipper is specially designed for use in industrial at-risk environments. With a 55 N traction force and a 3 meter cable, this switch allows easy access to enable or disable systems safely. Its robust and difficult conditions of difficult conditions makes it an ideal choice for classified areas. The 1Ö / 1S model provides secure locking, ensuring the protection of operators when using potentially hazardous equipment.
References Manufacturer: 1184717,1181410,1187242
STE0056
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
ATEX SERIES EX 355 SERIES POSITION SWITCH
- Ex 1 and 21 zones
- Metal housing
- Mounting and contact running according to EN 50041
- Connection chamber
- 3 cable entrances
- Actuator: 1K roller lever
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Actuation of the switch from the right
- Abrasion resistant plastic roll
- Removable 4 x 90 ° actuator
- Attention: Please indicate international approvals necessary!
- Metal housing
- Mounting and contact running according to EN 50041
- Connection chamber
- 3 cable entrances
- Actuator: 1K roller lever
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Actuation of the switch from the right
- Abrasion resistant plastic roll
- Removable 4 x 90 ° actuator
- Attention: Please indicate international approvals necessary!
The EX 355 1K 1K / 1S position switch is a security feature specially designed for industrial explosion industrial environments. It is used to monitor the position of critical equipment, ensuring rapid intervention in the event of malfunction, while complying with strict standards of hazardous areas.
References Manufacturer: 11784444,1188259,1178641,1187048,1189521,1189337,1181679,1189522,1 178428,1189998,1179072,1179966,1178443,1330278,1185952,1222698,117 9156,1477218,1189527,1048057,1185190,1180267,1179075,1180261,11791 59,1280836,1179218,1178426,1179217,1178557,1206303,1179160,1182134
STE0016
Data sheet
- Ambiant temperature
- -20 ° C to 40 ° C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- New
Ex 61 W
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: Fish with sealing cuff W
- max actuation speed. 0.5 m / s with a 15 ° vertical attack angle
- Exact Repeatability of Switching Point
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: Fish with sealing cuff W
- max actuation speed. 0.5 m / s with a 15 ° vertical attack angle
- Exact Repeatability of Switching Point
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
The EX position switch with Ex 61 W 1Ö / 1S - 3M safety function is an essential device for ensuring safety in potentially dangerous industrial environments.
References Manufacturer: 1160276
STE0106
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New

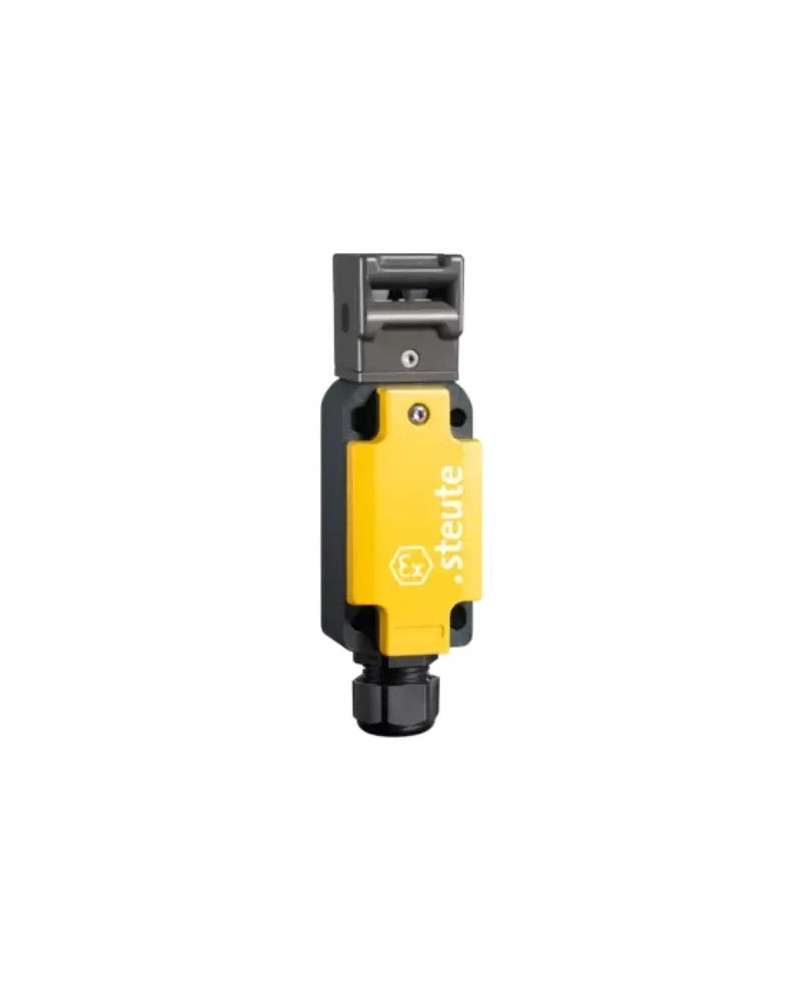

EX safety switch with separate actuator ex es 98 ST-3G / D
- Ex 2 and 22 zones
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Metal housing
- Construction according to EN 50041
- Connection chamber
The EX safety switch with ex es 98 ST-02-3g / D separate actuator is a highly specialized safety device designed for use in explosion risk environments, particularly in classified zone 2 (gas) and zone 22 (dust). It offers reliable security and controls and protect machines in environments where flammable gases or dust are present.
References Manufacturer: 1454701,1454699
STE0098
Data sheet
- Ambiant temperature
- -20 ° C to 40 ° C
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 2/22
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
PULLEY
- For the return of the traction cable
- Roll: polyamide
- Roll: polyamide
The stainless steel pulley is an essential element in the power and steering systems of cables or belts. Made of stainless steel, it is designed to offer durability and corrosion resistance, which makes it ideal for use in demanding environments, such as those exposed to moisture or chemicals.
References Manufacturer: 1041765,1160191
STE0073
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
- New
ATEX Emergency Emergency Stop Ex ZS 90 S Series
- Ex 1 and 21 zones
- Plastic case
- 4 contacts
- Cable length up to 2 x 50 m
- Rearmament by lever
- Traction detection and cable breaking
- Attention: Please indicate international approvals necessary!
- Plastic case
- 4 contacts
- Cable length up to 2 x 50 m
- Rearmament by lever
- Traction detection and cable breaking
- Attention: Please indicate international approvals necessary!
The ex zs 90 S 2Ö / 2S VD is a cable emergency stop device designed for demanding and potentially explosive industrial environments. It has a 3 meter cable and several contacts to ensure maximum security in case of emergency. This model is ex certified, which makes it suitable for explosive atmospheres.
References Manufacturer: 1184968,1045364,1045361,1179139
STE0064
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- New
ATEX Series Ex ZS 73 SR Series Strip Deport Switch
- Ex 1 and 21 zones
- Metal housing
- 2 Contacts Connection cable
- Median position centered (lever returns by spring force to the median position)
- Adjustable tape offset lever by 12 ° by gear
- Stainless Steel Strip Deport Roll 1.4301
- Attention: Please indicate international approvals necessary!
- Metal housing
- 2 Contacts Connection cable
- Median position centered (lever returns by spring force to the median position)
- Adjustable tape offset lever by 12 ° by gear
- Stainless Steel Strip Deport Roll 1.4301
- Attention: Please indicate international approvals necessary!
The EX ZS 73 SR 1Ö / 1S is a band feed switch designed to monitor conveyor belt alignment in explosive atmospheres environments. This switch is activated when the band deviates from its trajectory, thus preventing potential damage to equipment or production interruptions. The center-centered position ensures precise detection of any deviation.
References Manufacturer: 1186488,1179466,1289270
STE0059
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
ATEX SERIES EX 61 POSITION SWITCH
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: rotary lever d
- max actuation speed. 0.5 m / s with a 45 ° vertical attack angle
- Abrasion resistant plastic roll
- Rotary lever adjustable in steps from 10 ° to left or right
- Removable actuator at 180 °
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: rotary lever d
- max actuation speed. 0.5 m / s with a 45 ° vertical attack angle
- Abrasion resistant plastic roll
- Rotary lever adjustable in steps from 10 ° to left or right
- Removable actuator at 180 °
- Attention: Please indicate international approvals necessary!
The EX 61 D position switch is designed to ensure reliable monitoring of potentially explosive atmospheres equipment. Used mainly in sensitive industrial environments, this position switch ensures security and system compliance.
References Manufacturer: 1172825,1053442,1175016,1183085,1181343,1180172,118 9069,1160276,1047808,1179157,1160277,1047842,1047827
STE0017
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Application / usage
- ATEX zone
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
Ex 61 Wh
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: roller lever with water cuff
- max actuation speed. 0.5 m / s with a vertical angle of attack of α = 40 ° und β = 25 °
- Abrasion resistant plastic roll
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: roller lever with water cuff
- max actuation speed. 0.5 m / s with a vertical angle of attack of α = 40 ° und β = 25 °
- Abrasion resistant plastic roll
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
The EX position switch with EX 61 Wh 1Ö / 1S - 3M safety function is a security device designed to ensure accurate detection of equipment positions in explosive risk environments.
References Manufacturer: 1047808
STE0107
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
ATEX EX 98 SR Band Offset Switch
- Ex 1 and 21 zones
- Cold resistant up to -40 ° C
- Metal housing 2 contacts
- Construction according to EN 50041
- Connection chamber
- Rotary stainless steel rod adjustable in length with nylon roller
- Adjustable tape offset lever by 13 ° by gear
- For light and mid-heavy applications
- Attention: Please indicate international approvals necessary!
- Cold resistant up to -40 ° C
- Metal housing 2 contacts
- Construction according to EN 50041
- Connection chamber
- Rotary stainless steel rod adjustable in length with nylon roller
- Adjustable tape offset lever by 13 ° by gear
- For light and mid-heavy applications
- Attention: Please indicate international approvals necessary!
The ex eM 98 SR-11 -40 ° C band offset switch is a security device designed for conveyor systems in hazardous environments, such as those classified in explosive areas. It serves to detect the offset or misalignment of conveyor belts, a common problem in industrial operations, and automatically interrupt the system to prevent material damage or accidents.
References Manufacturer: 1420738,1420735,1420740,1443731
STE0099
Data sheet
- Ambiant temperature
- -40°C to +70°C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip66
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
Cable
- galvanized
- DIN 741
- 1/8 "= 3 mm
- For traction cable with steel core Ø 3 mm
- DIN 741
- 1/8 "= 3 mm
- For traction cable with steel core Ø 3 mm
The 3 mm cable clamp is an essential attachment accessory to maintain and organize the cables and wires in various environments. Designed to adapt to cables with up to 3 mm, it is ideal for applications in industry, electronics and interior design.
References Manufacturer: 1033247,1033299,1033248,1181896
STE0074
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
- New
ATEX Emergency Emergency Stop Ex ZS Series 92 S
- Ex 1 and 21 zones
- Corrosion-resistant aluminum case
- Stainless steel screws
- Cable length up to 2 x 100 m
- Rearmament by lever
- F = Reminder lever on the front panel
- Assembly sides rear and lower possible
- Traction detection and cable breaking
- Corrosion-resistant aluminum case
- Stainless steel screws
- Cable length up to 2 x 100 m
- Rearmament by lever
- F = Reminder lever on the front panel
- Assembly sides rear and lower possible
- Traction detection and cable breaking
The ex zs 92 S 22 VD F is a cable emergency stop device designed for use in risk-based industrial environments, including ex (potentially explosive atmospheres). This model is used to ensure the safety of operators and equipment by allowing a fast and reliable stop of machines via the activation of a cable. It is certified for use in explosive environments.
References Manufacturer: 1326899,1462764,1045515,1045516,1045517,104 5518,1045519,1045520,1045521,1045522,1045523
STE0066
Data sheet
- Ambiant temperature
- -10 ° C to + 55 ° C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- Body colors
- Anthracite gray (RAL 7016)
- New
ATEX SERIES EX ZS 75
- Ex 1 and 21 zones
- Metal housing
- 2 contacts
- Cable length up to 2 x 100 m
- Push-button reset (VD)
- Traction detection and cable breaking
- Attention: Please indicate international approvals necessary!
- Metal housing
- 2 contacts
- Cable length up to 2 x 100 m
- Push-button reset (VD)
- Traction detection and cable breaking
- Attention: Please indicate international approvals necessary!
The EX ZS 75 S 1Ö / 1S VD is a cable emergency stop switch designed for applications in industrial environments, including those with explosive atmospheres. It allows to quickly stop equipment in case of emergency via cable traction, ensuring the safety of operators and facilities. The model is designed to meet ex standards, ensuring compliance in environments where flammable gases or dust are present.
References Manufacturer: 1048306,1048304,1185780,1048318,1048360,1048357, 1053548,1048374,1174035,1048370,1048393,1172768
STE0060
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
ATEX SERIES EX 97 POSITION SWITCH
- Ex 1 and 21 zones
- Plastic case
- Cold resistant up to -60 ° C
- High sealing index IP66 / IP67 / IP69
- Construction according to EN 50047
- Connection chamber
- Double Insulation
- Actuator: rotary lever d
- Plastic case
- Cold resistant up to -60 ° C
- High sealing index IP66 / IP67 / IP69
- Construction according to EN 50047
- Connection chamber
- Double Insulation
- Actuator: rotary lever d
The EX EM 97 D-11 -60 ° C position switch is designed to operate in demanding industrial environments, including those exposed to extremely low temperatures (up to -60 ° C). It is suitable for explosive atmospheres environments, thanks to its EX certification, and has strengthened safety features for the protection of operators and machines.
References Manufacturer: 1431213,14312661431494,143146,1430872,1431037,1336295,14507,1431110,18,1431110,1431162
STE0023
Data sheet
- Ambiant temperature
- -60°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EX 61 WHL
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: Tilt lever with whop sealing cuff
- max actuation speed. 0.5 m / s with an α und β = 40 ° vertical attack angle
- actuation possible only by the right
- Vacuum operation by actuation by the left
- Abrasion resistant plastic roll
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: Tilt lever with whop sealing cuff
- max actuation speed. 0.5 m / s with an α und β = 40 ° vertical attack angle
- actuation possible only by the right
- Vacuum operation by actuation by the left
- Abrasion resistant plastic roll
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
The EX Ex ex position switch 61 WHK 1Ö / 1S - 3M is a security device designed for applications in explosive risk environments, ensuring accurate detection of equipment positions.
References Manufacturer: 1179157
STE0108
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
ATEX Security Switch for Ex 98 SB Rotary Protectors
- Ex 1 and 21 zones
- Metal housing
- Connection chamber
- Construction according to EN 50041
- Removable 4 x 90 ° actuator
- Rotary axis orientable 360 °
- Axis hole Ø 10 mm
- Attention: Please indicate international approvals necessary!
- Metal housing
- Connection chamber
- Construction according to EN 50041
- Removable 4 x 90 ° actuator
- Rotary axis orientable 360 °
- Axis hole Ø 10 mm
- Attention: Please indicate international approvals necessary!
The EX safety switch for ex es 98 SB-02-10mm rotary guards is a security device designed to monitor rotary protectors in risky environments, including those classified ex (explosion risk areas).
References Manufacturer: 1336010,1304292
STE0100
Data sheet
- Ambiant temperature
- -20 ° C to 40 ° C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip66
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
Tensioner
- for precise adjustment of the pre-tension of the cable
- According to DIN 1480
- Adjustable from 145 mm to 225 mm
- According to DIN 1480
- Adjustable from 145 mm to 225 mm
The tensioner M6 is a voltage device designed to maintain and adjust the tension of cables, ropes or chains in various industrial and DIY applications.
References Manufacturer: 1033254,1033300
STE0079
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
- New
AZ 335/355 angular actuator
- Protection against the penetration of large particles of dust
- Quantity needed: 3 pieces
- Quantity needed: 3 pieces
The AZ 355 slit is an essential safety component used in door locking systems, covers or other safety devices in industrial environments. Designed to ensure accurate and secure alignment, it contributes to the reliability of protective devices.
References Manufacturer: 1172965
STE0075
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
- New
ATEX Series Ex ZS 90 SR band offset switch
- Ex 1 and 21 zones
- Plastic case
- 4 contacts
- With offset contacts
- Continuous adjustable band power off lever
- Attention: Please indicate international approvals necessary!
- Plastic case
- 4 contacts
- With offset contacts
- Continuous adjustable band power off lever
- Attention: Please indicate international approvals necessary!
The ex zs 90 sr is a band power off switch designed specifically for conveyor systems in high-risk industrial environments. It is equipped with safety contacts and a 3 meter cable to detect and report any offset from the conveyor's band, thus guaranteeing rapid intervention. It is ex certified, which makes it suitable for explosive environments.
References Manufacturer: 1184969,1185386,1185567
STE0065
Data sheet
- Ambiant temperature
- -20 ° C to 90 ° C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- New
ATEX SERIES EX 98 POSITION SWITCH
- Ex 1 and 21 zones
- Cold resistant up to -40 ° C
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Actuator: rotary lever d
- Training type according to EN 50041
- max actuation speed. 2.5 m / s with 30 ° vertical attack angle
- Abrasion resistant plastic roll
- Adjustable actuator by step of 10 °
- Removable 4 x 90 ° actuator
- Attention: Please indicate international approvals necessary!
- Cold resistant up to -40 ° C
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Actuator: rotary lever d
- Training type according to EN 50041
- max actuation speed. 2.5 m / s with 30 ° vertical attack angle
- Abrasion resistant plastic roll
- Adjustable actuator by step of 10 °
- Removable 4 x 90 ° actuator
- Attention: Please indicate international approvals necessary!
The EX EM 98 D-11 -40 ° C position switch is designed for demanding industrial environments, particularly those exposed to very low temperatures (up to -40 ° C). It is certified for use in explosive atmospheres thanks to its EX certification, ensuring maximum safety in risk areas.
References Manufacturer: 1409961,1442593,1442030,1442493,1409658,14011,1442200,1443731,140 7644,1400737,1400733,1400735,1400761,1400757,1400759,1400745,1400741, 1400743,1400753,1400749,1400751,1400721,1400717,1400719,1400703,138 7893,1400705,1400711,1400709,1400713,1400725,1300729,1216909,1471101
STE0024
Data sheet
- Ambiant temperature
- -40°C to +70°C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip66
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
Ex 61 WHL
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: Long roller lever with sealing cuff
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Abrasion resistant plastic roll
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: Long roller lever with sealing cuff
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Abrasion resistant plastic roll
- Cuff for fouling protection
- Attention: Please indicate international approvals necessary!
The ex ex 61-WHL 1Ö / 1S - 3M position switch is a security device designed to monitor and control equipment positions in explosive risk environments.
References Manufacturer: 1160277
STE0109
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
EX position switch with ex es 98-11-3g / d safety function
- Ex 2 and 22 zones
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Actuator: push
- Training type B according to EN 50041
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Actuator: push
- Training type B according to EN 50041
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
The EXS 98-11-3G / D position switch is designed to ensure safety in industrial explosion environments. This device is essential for machine monitoring and control, making it possible to ensure that they work securely and in accordance with safety standards.
References Manufacturer: 1454685
STE0101
Data sheet
- Ambiant temperature
- -20 ° C to 40 ° C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 2/22
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- New
Right actuator AZ 15/16
- Protection against the penetration of large particles of dust
- To plug the unused slits
- Easy editing by snapping
- Quantity needed: 3 pieces
- To plug the unused slits
- Easy editing by snapping
- Quantity needed: 3 pieces
AZ 15 / 16-1476 is a security component designed for door or covers locking systems in industrial environments. It ensures precise and secure alignment, ensuring the proper functioning of protection and safety devices.
References Manufacturer: 1172961,1172954,1477538,1172956,1172957,1477477, 1172495,1172616,1477542,1172617,1477543,1175024
STE0083
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
- Certificates
- Atex.ce
- Body colors
- White
- New
TS 65 cable tensioner
- Easy adjustment
- No injuries
- Ergonomic
- anti-slip
- Time saving
- No injuries
- Ergonomic
- anti-slip
- Time saving
The TS 65 cable tensioner is a device designed to ensure the adequate tension of the cables in various industrial and construction applications. This tensioner is particularly suitable for facilities where security and sustainability are essential.
References Manufacturer: 1186621,1189192
STE0080
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
- New
ATEX SERIES EX 99 POSITION SWITCH
- Ex 1 and 21 zones
- Plastic case
- Cold resistant up to -60 ° C
- High sealing index IP66 / IP67 / IP69
- Construction according to EN 50041
- Connection chamber
- Double Insulation
- Actuator: rotary lever d
- Plastic case
- Cold resistant up to -60 ° C
- High sealing index IP66 / IP67 / IP69
- Construction according to EN 50041
- Connection chamber
- Double Insulation
- Actuator: rotary lever d
The EX EM 99 D-11 -60 ° C X position switch is specifically designed to operate in low temperature industrial environments, up to -60 ° C. It has enhanced security features and EX certification, ensuring its compliance with standards for explosive atmospheres.
References Manufacturer: 1442636,1443254,1442717,1442452,1442544,1442354, 1404450,1443893,1317944,1330584,1336746,1430640, 1404832,1430751,1336834,1330692,1336789,1225938, 1430395,1336578,1430443,136619,1430809,1415038, 1451424,1430320,1292311,1430485,1336662,1430536, 1336702,1341962,1349491,1442086,1349879,1442032, 1349735,1441184,1349368,1441262,1349434,1441132, 1349302,1441051,1349234,1342235,1354452,1442152
STE0025
Data sheet
- Ambiant temperature
- -60°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic
- New
EX 61 WZ
- Ex 1 and 21 zones
- Metal housing
- Wall mounting
- 2 contacts
- Cable Traction Function
- Attention: Please indicate international approvals necessary!
- Metal housing
- Wall mounting
- 2 contacts
- Cable Traction Function
- Attention: Please indicate international approvals necessary!
The ex ex 61 WZ 1Ö / 1S - 3M pull switch is a security feature designed for industrial explosion industrial environments. This switch is specifically designed to ensure easy and accessible control of equipment, particularly in emergencies.
References Manufacturer: 1047842
STE0110
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- Body colors
- Black
