List of products by brand R, STAHL
References Manufacturer: 155403
STL0023
ATEX Series 8040 Order Positions System
- IP66
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -20 ° C
- Installation position low: push-button
- HIGH INSTALLATION POSITION: Key Switch
- Certificates: ATEX (PTB), Brazil (ULB), China (NEPSI), Korea (KGS), IECEX (PTB), India (Peso)
- High mounting element: contact element # / no
- low mounting element: contact element no
- Flask and plates: without flange, without plates
- 2 year warranty
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -20 ° C
- Installation position low: push-button
- HIGH INSTALLATION POSITION: Key Switch
- Certificates: ATEX (PTB), Brazil (ULB), China (NEPSI), Korea (KGS), IECEX (PTB), India (Peso)
- High mounting element: contact element # / no
- low mounting element: contact element no
- Flask and plates: without flange, without plates
- 2 year warranty
Quad Certification (NEC®, This Code, ATEX, IECEX) Code Fiber Glass Fiber (PV) lightweight, perfectly suited to corrosive atmospheres offers a variety of pushbuttons, buttons Lightweight, control switches and LEDs for different custom control box configurations available on request with different entries, Contact Options and Additional Certifications
References Manufacturer: 130929,8040 / 1290Z-10L07SA05-26M01SA05
EAV0001
Data sheet
- Ambiant temperature
- -20 ° C to 40 ° C
- Temperature class
- T6
- Warranty
- 2 years
- Feed
- max. 500 V AC. 250V DC
- Waterproofing protection (IP)
- Ip66
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex of
- Certificates
- Atex.iecex
- Frequency (Hz)
- 60hz
SUBSCRIPTION SWITCH SERIES 8208
- Product Description: Resistance Contact Element
- Maximum ambient temperature: +60 ° C
- Minimum ambient temperature: -40 ° C Filter area: M2 | Mo / Zone 1 | 2G | Go / Zone 2 | 3G |
- GC Certificates: ATEX (PTB), Brazil (ULB), China (CQST), IECEX (PTB), SIL (Exida)
- Contact material: Golden Number of NF: 2
- Connection type: Screw terminal
- Maximum ambient temperature: +60 ° C
- Minimum ambient temperature: -40 ° C Filter area: M2 | Mo / Zone 1 | 2G | Go / Zone 2 | 3G |
- GC Certificates: ATEX (PTB), Brazil (ULB), China (CQST), IECEX (PTB), SIL (Exida)
- Contact material: Golden Number of NF: 2
- Connection type: Screw terminal
The 8208 Universal Universal Universal Universal Instant Action Switch can be used versatile for different control tasks in explosive risk areas. The compact device is intended to be mounted in housings with the increased safety mode (ex e). The assembly is carried out on a notched support profile. Four ex screw terminals and with two clamping points each are available for electrical connection. We recommend using the 8602 Series control heads. Sudden-resistant pressure switch-resistant power switch versions with and without universal use for different operating temperature range Four terminals with two points of Tightening each in increased security (ex e) Large clamping range for rigid or flexible conductors for mounting in an Ex housing and on a notched international certificates available
References Manufacturer: 140707
STL0219
Data sheet
- Ambiant temperature
- -40 ° to + 60 ° C
- Temperature class
- T6
- Warranty
- 2¨
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/2
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Polyamide

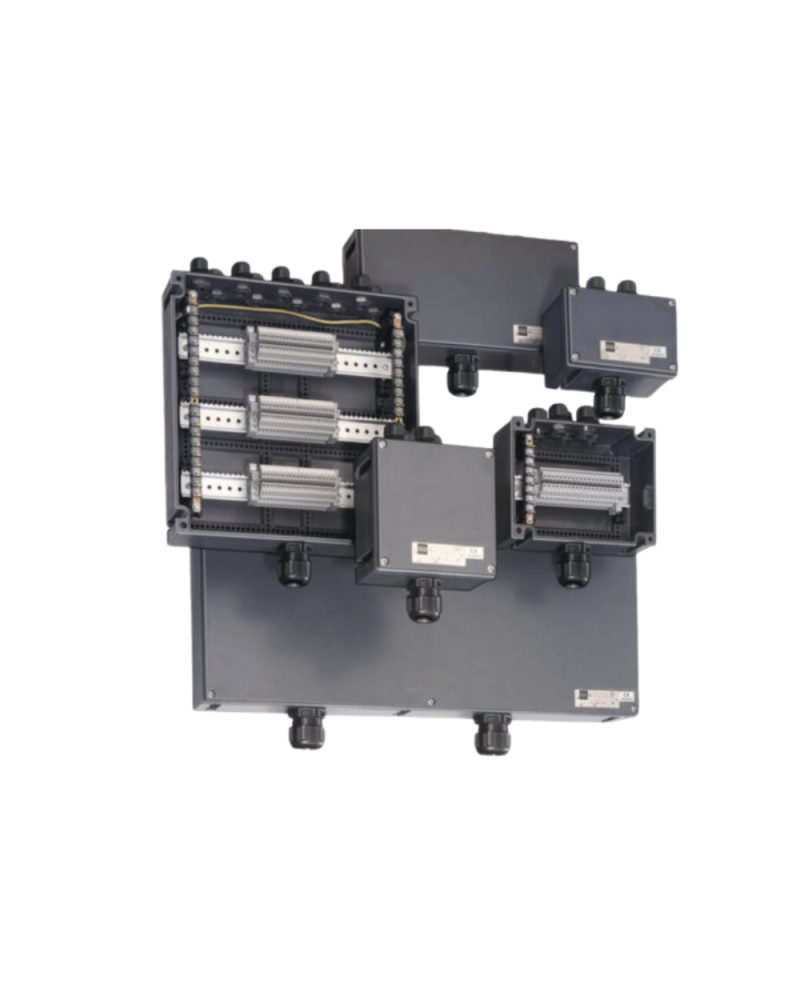

8146/1 series junction box
€559.00
Tax excluded
- IP66
- Ex e junction box
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -50 ° C
- Certificates: ATEX (PTB), Canada (UL), Korea (KGs), IECEX (PTB), India (Peso), United States (UL)
- Terminals Type 1: 1 x Phoenix UT 2 conductors 10 mm2 gray
- PE terminals Type 1: 1 x Phoenix UT PE 2 conductors 10 mm2 yellow-green
The R. Stahl 8146 series junction boxes are made of high quality fiberglass fiber reinforced polyester resin and are ideal for use in coarse environments. They are available in eight basic sizes in different heights and guarantee multipurpose use. Depending on the needs of the customer, they are equipped with series terminals up to 300 mm²; Optional: flanges also possible on several sides of the boxtier.BoPolyvalent Ex e junction iss, available in different sizes and heights degree of protection IP66 custom equipment according to the requirements of the client housing with captive lid screws as needed with flanges on the sides of the housing
References Manufacturer: 136804,137051,137059,137080,137098,137086,137078,248059
STL0215
Data sheet
- Ambiant temperature
- -60 ° C to + 40 ° C
- Temperature class
- T6
- Warranty
- 2 years
- Feed
- 690v
- Waterproofing protection (IP)
- Ip66
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/2
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- Atex.iecex
- Material
- UV resistant reinforced polyester (GRP)
- Certificat_atex-en_us
- PTB 01 ATEX 1016
- Certificat_iecex-en_us
- IECEX PTB 06.0046
- Body colors
- Dark gray
- 2¨
- 1
