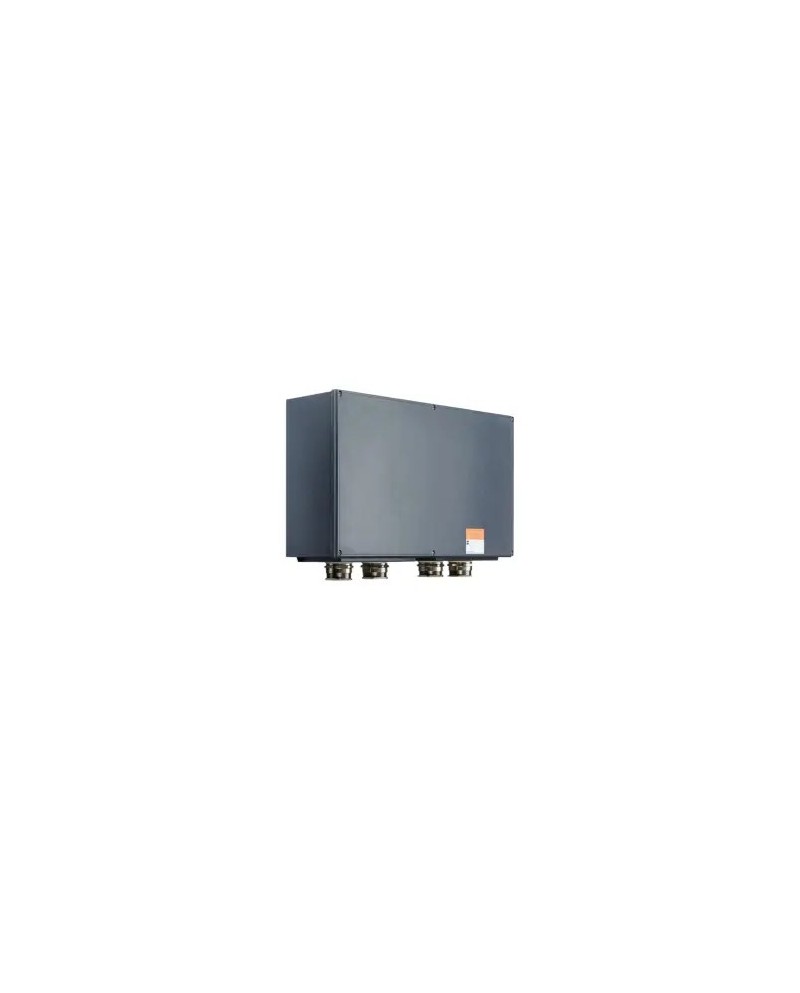

8146/1 series junction box
- IP66
- Ex e junction box
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -50 ° C
- Certificates: ATEX (PTB), Canada (UL), Korea (KGs), IECEX (PTB), India (Peso), United States (UL)
- Terminals Type 1: 1 x Phoenix UT 2 conductors 10 mm2 gray
- PE terminals Type 1: 1 x Phoenix UT PE 2 conductors 10 mm2 yellow-green
- Ex e junction box
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -50 ° C
- Certificates: ATEX (PTB), Canada (UL), Korea (KGs), IECEX (PTB), India (Peso), United States (UL)
- Terminals Type 1: 1 x Phoenix UT 2 conductors 10 mm2 gray
- PE terminals Type 1: 1 x Phoenix UT PE 2 conductors 10 mm2 yellow-green
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The R. Stahl 8146 series junction boxes are made of high quality fiberglass fiber reinforced polyester resin and are ideal for use in coarse environments. They are available in eight basic sizes in different heights and guarantee multipurpose use. Depending on the needs of the customer, they are equipped with series terminals up to 300 mm²; Optional: flanges also possible on several sides of the boxtier.BoPolyvalent Ex e junction iss, available in different sizes and heights degree of protection IP66 custom equipment according to the requirements of the client housing with captive lid screws as needed with flanges on the sides of the housing
References Manufacturer: 136804,137051,137059,137080,137098,137086,137078,248059
| Ambiant temperature | -60 ° C to + 40 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2 years |
| Feed | 690v |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | UV resistant reinforced polyester (GRP) |
| Certificat_atex-en_us | PTB 01 ATEX 1016 |
| Certificat_iecex-en_us | IECEX PTB 06.0046 |
| Body colors | Dark gray |
| 2¨ | 1 |
