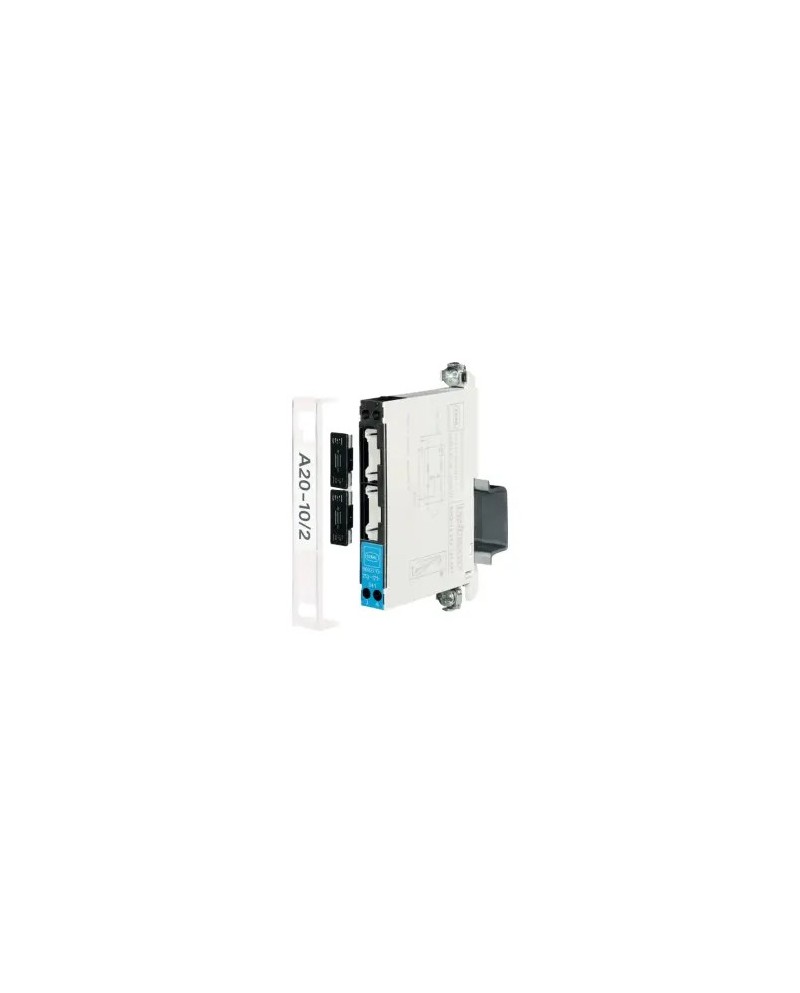

Intrinsic safety barrier Two channel 9002 series
- IP40
- Product Description: Two-Channel Security Barrier
- Class 1 Division / Zone: Division 2 / Zone 2
- Special adequacy for: positioners, transformers I / P; unfolded ground circuit
- Scope (zones): 2 Ex: 0, 1, 2, 20, 21, 22 interface
- Maximum voltage UO: 25.20 V
- Maximum current IO: 118 mA
- Maximum Power Power: 740 MW
- maximum resistance Rmax: 244 Ω
- Product Description: Two-Channel Security Barrier
- Class 1 Division / Zone: Division 2 / Zone 2
- Special adequacy for: positioners, transformers I / P; unfolded ground circuit
- Scope (zones): 2 Ex: 0, 1, 2, 20, 21, 22 interface
- Maximum voltage UO: 25.20 V
- Maximum current IO: 118 mA
- Maximum Power Power: 740 MW
- maximum resistance Rmax: 244 Ω
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Zener Safety Barriers IntrinsPak with two channels of the 9002 series allow the safety exploitation involved of almost all field devices. The vast wallet and the combination of zone safety barriers include a multitude of signals. Devices offer high robustness and extremely low congestion. The preventer is a comfort element in all variants. For safety operation has a wide variety of devices such as HART transmitters, solenoid valves, sensors, potential free contacts, etc. Compact, compact and easy-to-install on DIN rail fast mounting with simultaneous snap on the rail and connecting to the equipotential link
References Manufacturer: 158830,158845,158848,158852,158857,158864,158877,15888888888888893,158897,158905, 158913,158921,158929,158933,158937,158943,158948,158950,158952,158954,158867,158940
| Ambiant temperature | -20°C to +60°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | Atex.iecex |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 01 ATEX 2053 x |
| Certificat_iecex-en_us | IECEX PTB 08.0057X |
| Body colors | White |
| Ex p (pressurized) | 1 |
| Ip40 | 1 |
