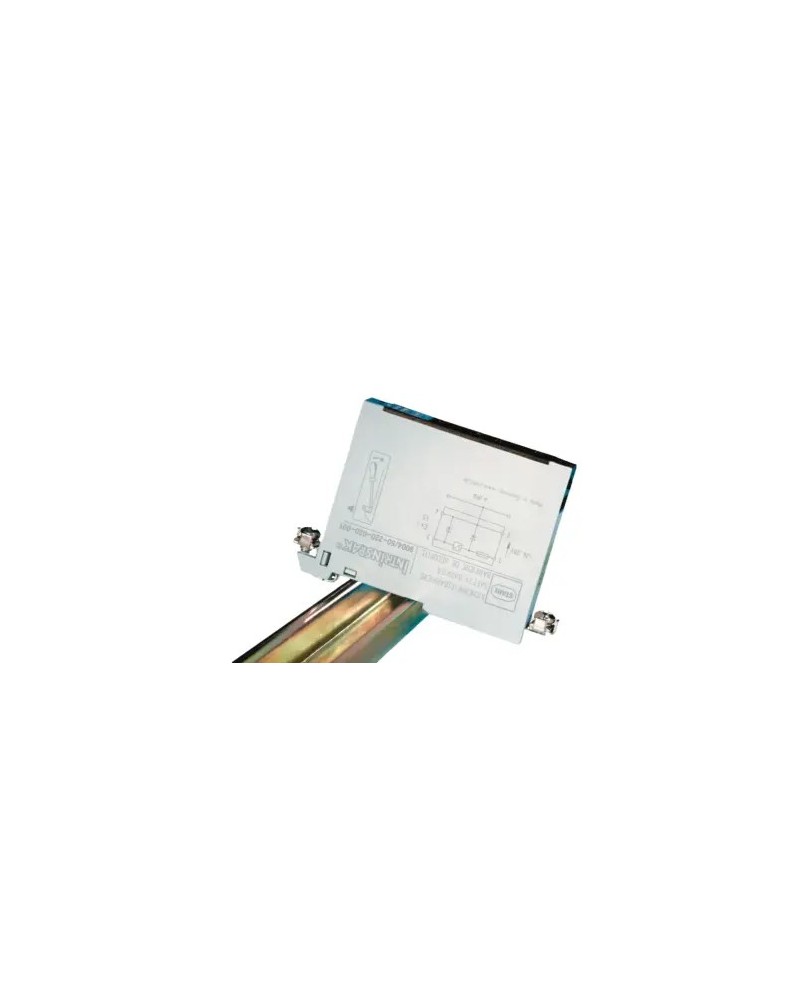

Intrinsic safety barrier 9004 series
- IP20
- Product Description: Zener Safety Barriers Involving an AV channel. limit. electron. current
- Class 1 Division / Zone: Division 2 / Zone 2
- Special adequacy for: EXIB power supply, solenoid valves
- Scope (zones): 2 Ex zone interface: 1, 2, 21, 22
- Certificates: ATEX (PTB), Canada (CSA), IECEX (PTB)
- Maximum voltage UO: 20, 60 V
- Maximum current IO: 85 mA
- Power PO: 1751 MW Nominal voltage: 23,00 - 27.00 V DC
- Nominal voltage: 23,00 - 27.00 V DC
- Product Description: Zener Safety Barriers Involving an AV channel. limit. electron. current
- Class 1 Division / Zone: Division 2 / Zone 2
- Special adequacy for: EXIB power supply, solenoid valves
- Scope (zones): 2 Ex zone interface: 1, 2, 21, 22
- Certificates: ATEX (PTB), Canada (CSA), IECEX (PTB)
- Maximum voltage UO: 20, 60 V
- Maximum current IO: 85 mA
- Power PO: 1751 MW Nominal voltage: 23,00 - 27.00 V DC
- Nominal voltage: 23,00 - 27.00 V DC
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Integrated Integrated Security Zener Barriers at a R. Stahl series of 9004 series are particularly suitable for supplying auxiliary safety field devices involved with their electronic current limitation. They have a particularly good power gain and are available in many variants for negative or positive potential electrical circuits, also for electrical power supplies without regulation. For Field Feeding with Integrated Security Auxiliary Power, Variants for Many Flexible Application Cases, Sparkling and Easy to Install DIN Rail Reduced Storage Thanks to a uniform
References Manufacturer: 159094,159060
| Ambiant temperature | -20°C to +60°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Protection étanchéité (IP) | IP20 |
| Application/Usage | Zone ATEX |
| Zone ATEX | Zone 1/2 |
| Classe de gaz | IIC |
| Mode de protection ATEX | Ex i (sécurité intrinsèque) |
| Certificats | ATEX.IECEx |
| Matière | Polyamide |
| Certificat_ATEX-fr_FR | PTB 02 ATEX 2008 X |
| Certificat_IECEx-fr_FR | IECEx PTB 12.0003X |
| IP40 | 1 |
