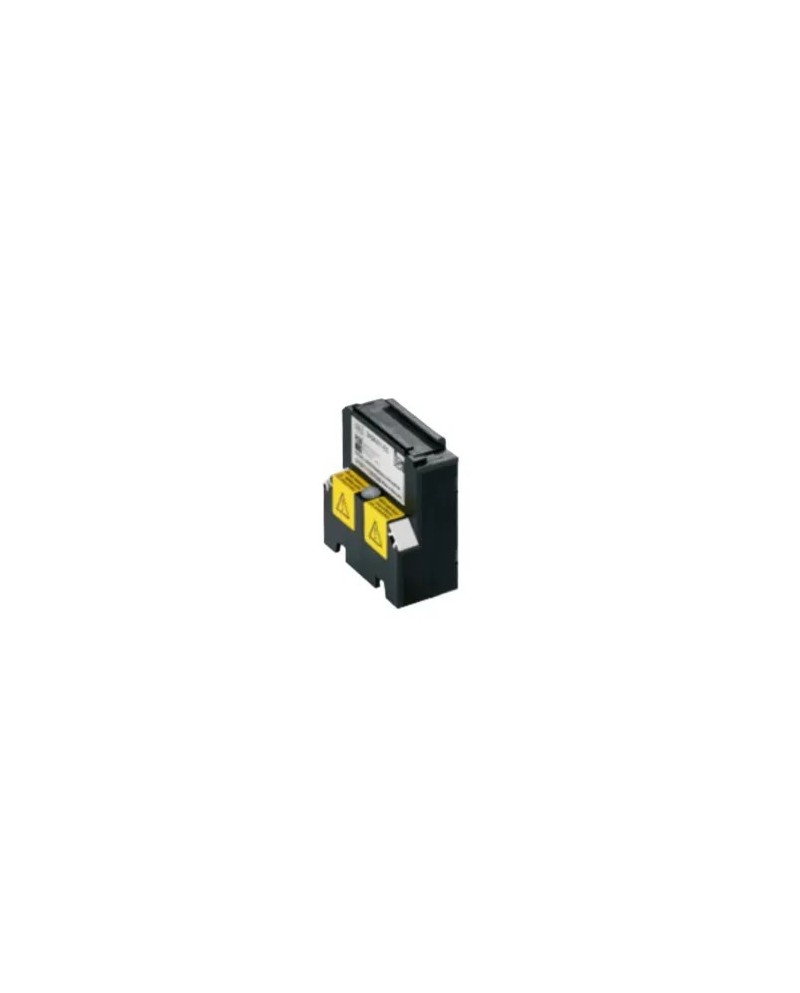

Busrail 9494 and accessories
- IP20
- ambient temperature: -40 ° C ... + 75 ° C
- Zones: 1.2
- for the internal electrical connection between CPU & Power and max modules. 16 I / O modules
- Redundant data bus, high availability powerbus
- Simple and safe installation in DIN NS35 / 15 rails
- Passive component with redundancy and high availability
- ambient temperature: -40 ° C ... + 75 ° C
- Zones: 1.2
- for the internal electrical connection between CPU & Power and max modules. 16 I / O modules
- Redundant data bus, high availability powerbus
- Simple and safe installation in DIN NS35 / 15 rails
- Passive component with redundancy and high availability
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 9494 Series Series Busratails serve as a rear bus for the IS1 + remote input / output system. They contain a high availability PowerBus, an ex i redundant design data bus and addressing lines. The buzzers are available for 2 or 4 modules and can be plugged in up to 18 locations.
References Manufacturer: 261933,261934,261795,261796,261798,261799,261800
| Ambiant temperature | -40 ° C to + 75 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex p (pressurized) |
| Certificates | Atex.iecex |
| Certificat_atex-en_us | PTB 17 ATEX 2003 X |
| Certificat_iecex-en_us | IECEX PTB 17.0013X |
