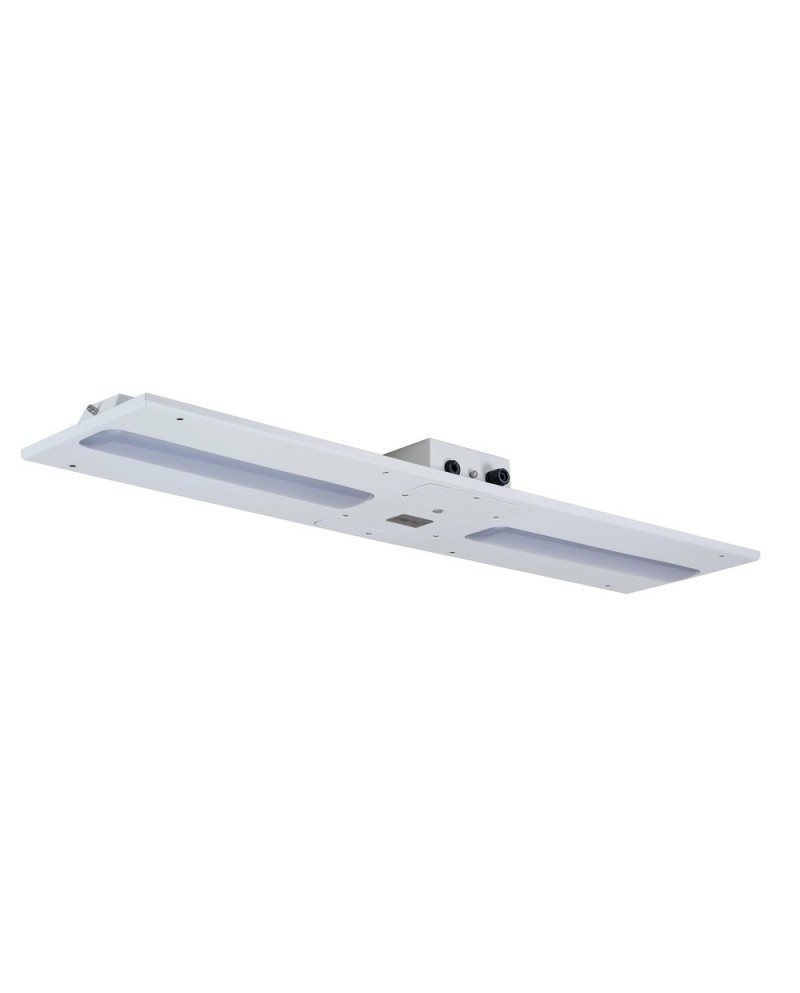

The Spartan Receive range offers a state-of-the-art modular design that favors both lightness and accessibility, making installation and maintenance a breeze, as well above below the ceiling. Proudly designed and manufactured in the United Kingdom, all Spartan luminaires benefit from an exceptional 5-year warranty, guaranteeing peace of mind and sustainable performance. This innovative range is ideal for those looking for solutions
References Manufacturer: SPZ-RCP308, SPZ-RCP314
- Brand
- RAYTEC
- Reference
- RTC0214
- ATEX zone
- Zone 2/22
- Ambiant temperature
- -40 ° to + 60 ° C
- Temperature class
- T4
- Warranty
- 5 year warranty (s)
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- Atex.iecex
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum with epoxy powder coating (stainless steel option available on request)
- Certificat_atex-en_us
- CML 23ATEX5450X
- Certificat_iecex-en_us
- IECEX CML 23.0150X
- Body colors
- White Traffic (RAL 9016)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 32w
- Light power
- 3700lm
- Shock resistance index
- Ik10
- Cable entry (s)
- 2xm20
- Mounting type
- Built
- Beam angle
- 120x120 °
