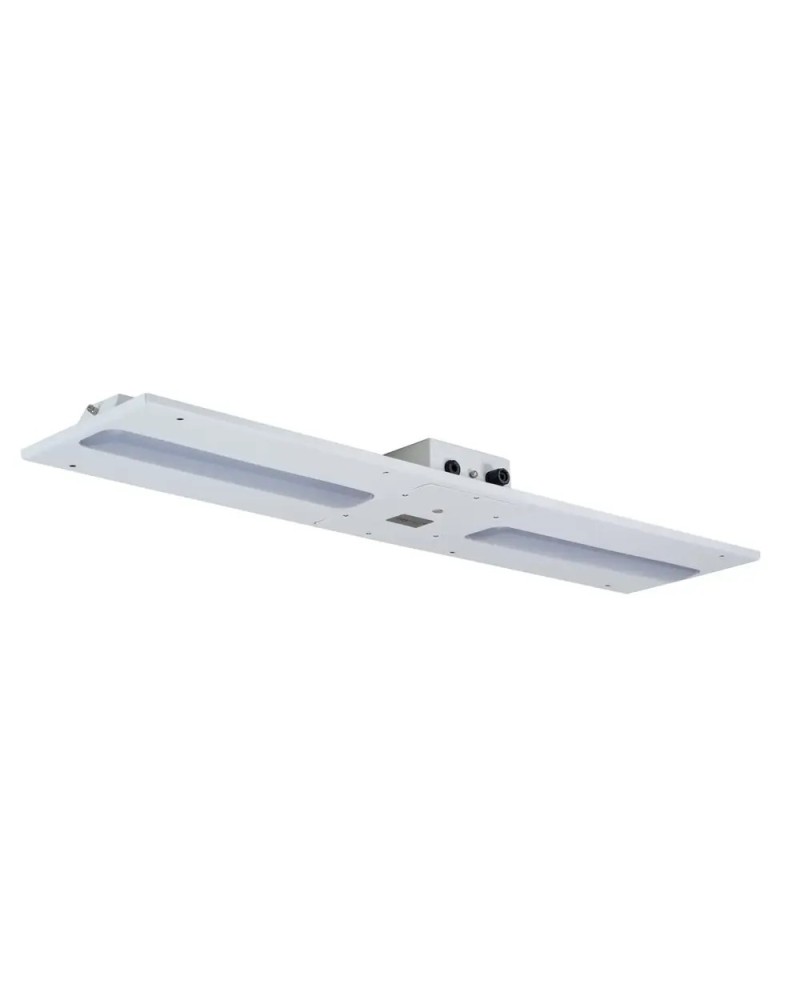

The recessed luminaire SPZ-RCP314 has a light yield of 3079 lumens. In addition, there is an emergency version, the SPZ-RCP314 -EMX25, which delivers an impressive 6158 lumens, ideal for environments requiring significantly brighter lighting. The Spartan Recess Spz-RCP308 luminaire is a versatile 5 kg luminaire. Its 275 x 800 version offers multiple mounting options, allowing a ceiling, ground or wall facility. This flexibility makes it suitable for various applications and environments, providing effective lighting while harmonizing with different interior fittings. Thanks to its adaptable installation options, the SPX-RCP314 improves both the feature and the aesthetics of many environments.
References Manufacturer: SPZ-RCP314-HO
- Brand
- RAYTEC
- Reference
- RTC0213
- ATEX zone
- Zone 2/22
- Ambiant temperature
- -40 ° to + 60 ° C
- Temperature class
- T4
- Warranty
- 5 year warranty (s)
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- ATEX.IECEx.UKCA
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum with epoxy powder coating (stainless steel option available on request)
- Certificat_atex-en_us
- CML 23ATEX5450X
- Certificat_iecex-en_us
- IECEX CML 23.0150X
- Body colors
- White Traffic (RAL 9016)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 32w
- Light power
- 3700lm
- Shock resistance index
- Ik10
- Cable entry (s)
- 2xm20
- Beam angle
- 120x120 °
