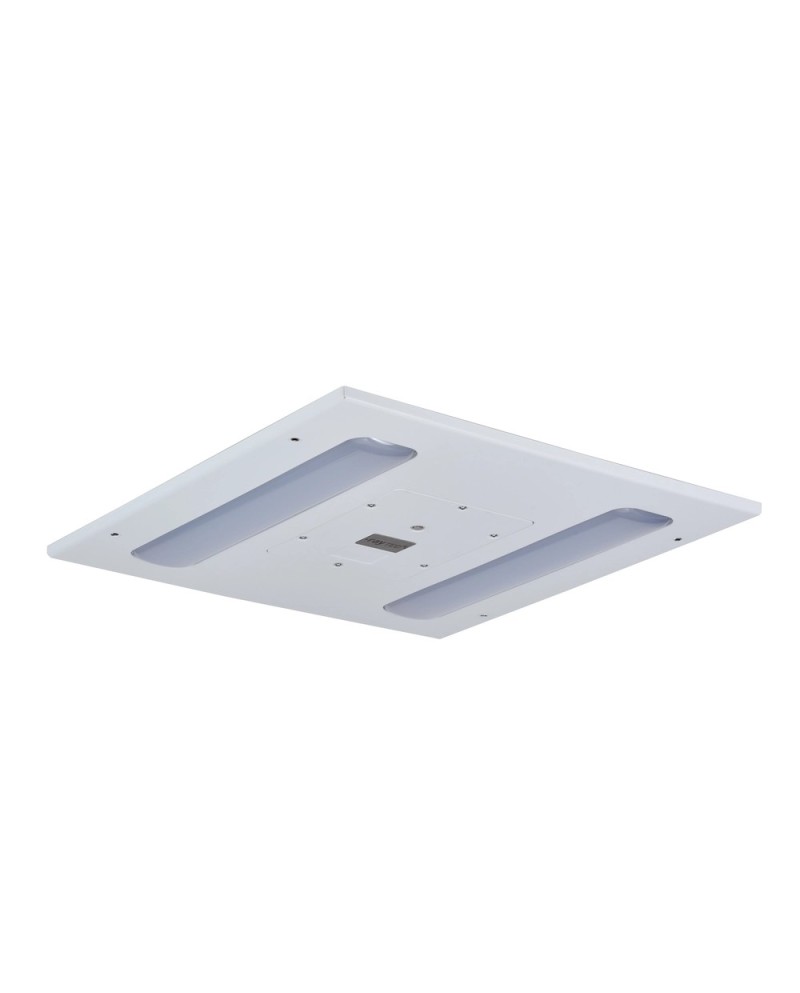

Modular recessed Spartan light fixture area 2/22 certified ATEX and IEC ex
- ATEX Certified and IEC Ex - Zone 2/22
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The brand new Spartan Recess Modular range has a unique modular design, designed to be light, with access from below and over the ceiling for simplified installation and maintenance. All Spartan luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the market.
References Manufacturer: SPZ-RCM66, SPZ-RCM612, SPZ-RCM312
| Ambiant temperature | -40 ° to + 60 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip65 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 2/22 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_ABS.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum with epoxy powder coating (stainless steel option available on request) |
| Certificat_atex-en_us | CML 23ATEX5450X |
| Certificat_iecex-en_us | IECEX CML 23.0150X |
| Body colors | White Traffic (RAL 9016) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 23w |
| Light power | 3700lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
| 46w | 1 |
| 7400lm | 1 |
