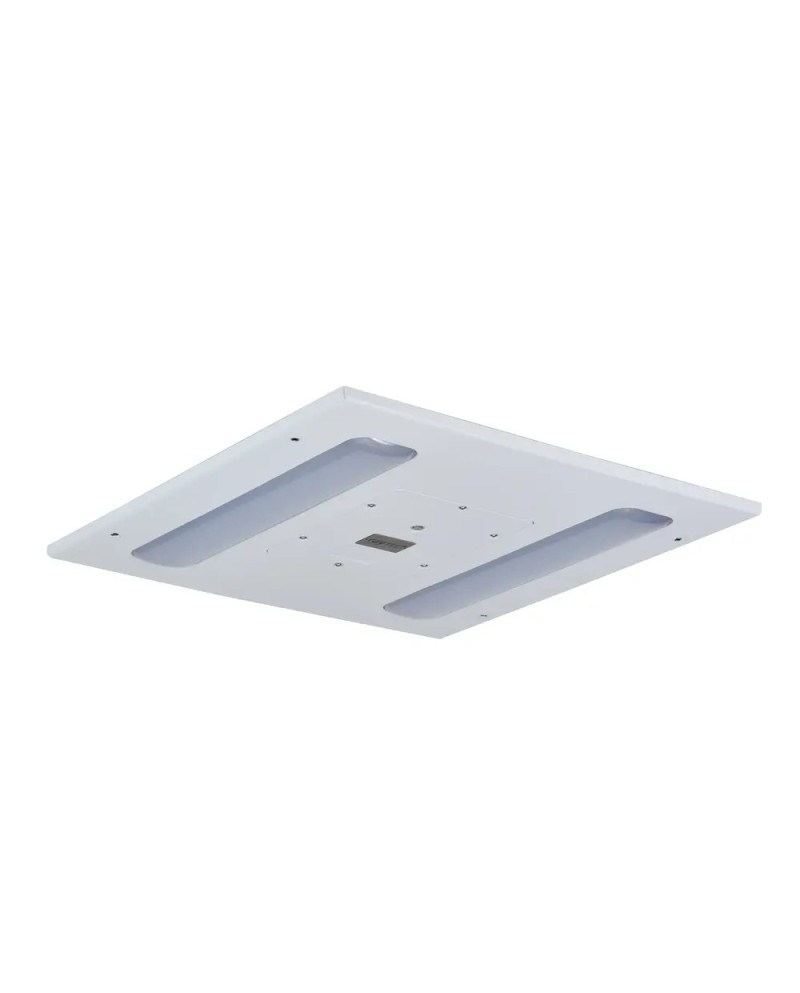

The brand new Spartan Receive range has a unique modular design, designed to be light, with access from below and over the ceiling for simplified installation and maintenance. All Spartan luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the market.
References Manufacturer: SPX-RCM66-HO, SPX-RCM612-HO, SPX-RCM312-HO
- Brand
- RAYTEC
- Reference
- RTC0204
- ATEX zone
- Zone 1/21
- Ambiant temperature
- -40 ° C to + 50 ° C
- Temperature class
- T4
- Warranty
- 5 year warranty (s)
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- Atex.iecex
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum
- Certificat_atex-en_us
- CML 23atex5448x
- Certificat_iecex-en_us
- CML 23UKEX5449X
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 48w
- Light power
- 6158lm
- Shock resistance index
- Ik10
- Cable entry (s)
- 2xm20
