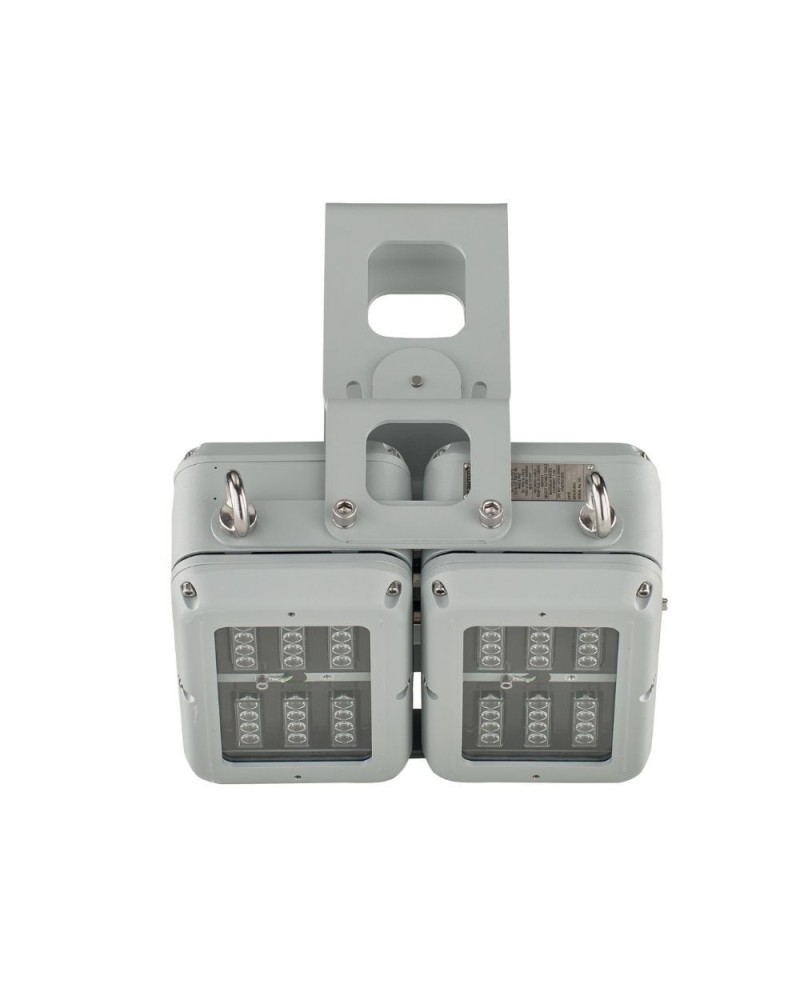

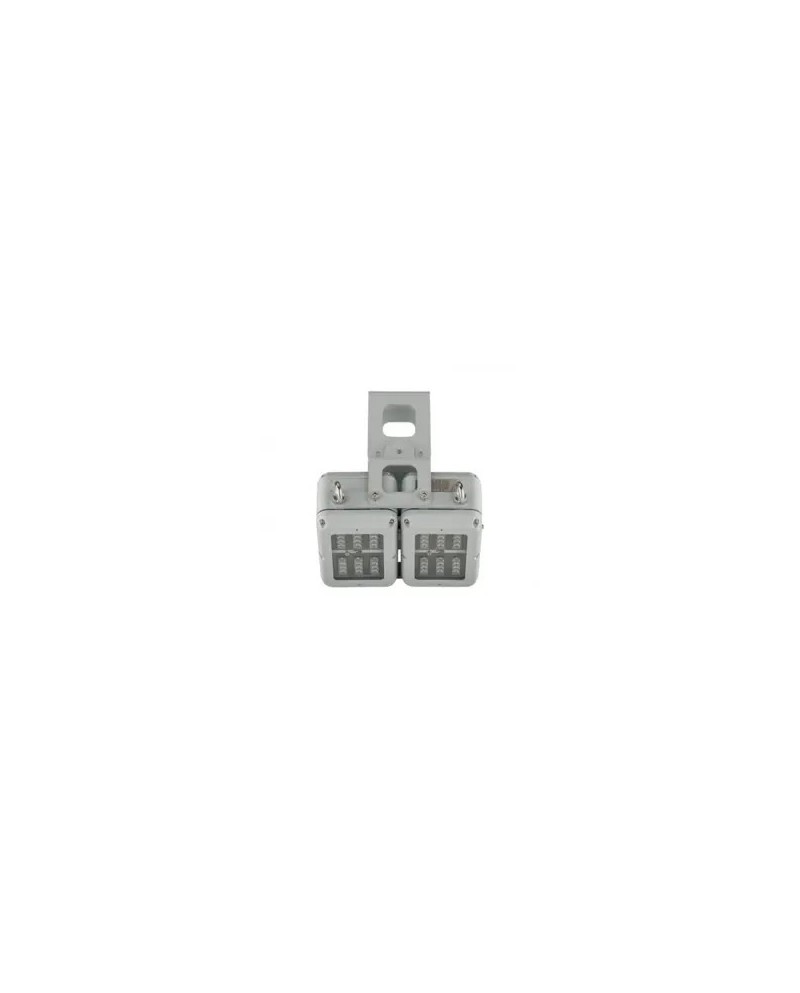

Spartan projector Crane 48 LED for zone 1
- IP66 & 67
- LED ultra long duration and high efficiency
- High performance exit level 16900LM
- BASE CONSOMATION (136W)
- Large operating temperature -10 ° C to + 55 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High performance exit level 16900LM
- BASE CONSOMATION (136W)
- Large operating temperature -10 ° C to + 55 ° C
- 5 years warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Spartan Flood LED crane lighting is designed to be used on marine and offshore cranes that require high performance and reliable white light lighting to improve the safety and reliability of crane operations. Delivering up to 16,900 lumens, Raytec's LED crane lighting has been designed to be very vibration-resistant and uses a rotary shock absorber to prevent swaying and ensuring that light is always targeted where necessary. The Crane Flood uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires are designed and manufactured in the United Kingdom and benefit from a 5-year warranty, the best sector.
References Manufacturer: SPX-FL48C-W-1010, SPX-FL48C-W-3030, SPX-FL48C-W-5050, SPX-FL48C-W-8080, SPX-FL48C-W- 120120, SPX-FL48C-W-3510, SPX-FL48C-W-6025, SPX-FL48C-W-8030, SPX-FL48C-W-12050, SPZ-FL48C-W-1010, SPZ-FL48C-W-3030, SPZ-FL48C-W-5050, SPZ-FL48C-W-8080, SPZ-FL48C-W-120120, SPZ-FL48C-W-3510, SPZ- FL48C-W-6025, SPZ-FL48C-W-8030, SPZ-FL48C-W-12050
| Ambiant temperature | -10 ° C to + 55 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | Cml13atex3007 |
| Certificat_iecex-en_us | IEC EX CML 14.0001 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6000k |
| Power | 136w |
| Light power | 16900lm |
| Cable entry (s) | 2xm20 |
| Zone 2/22 | 1 |
| 139w | 1 |
| 5700k | 1 |
| 50hz | 1 |
| 18600lm | 1 |
