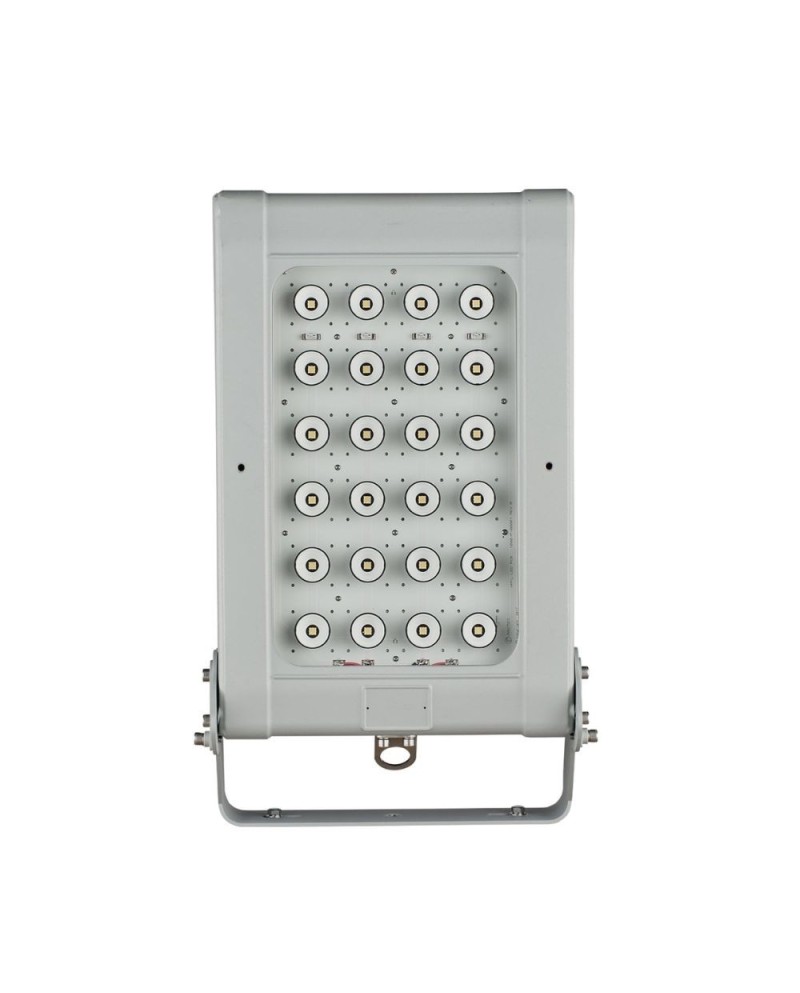

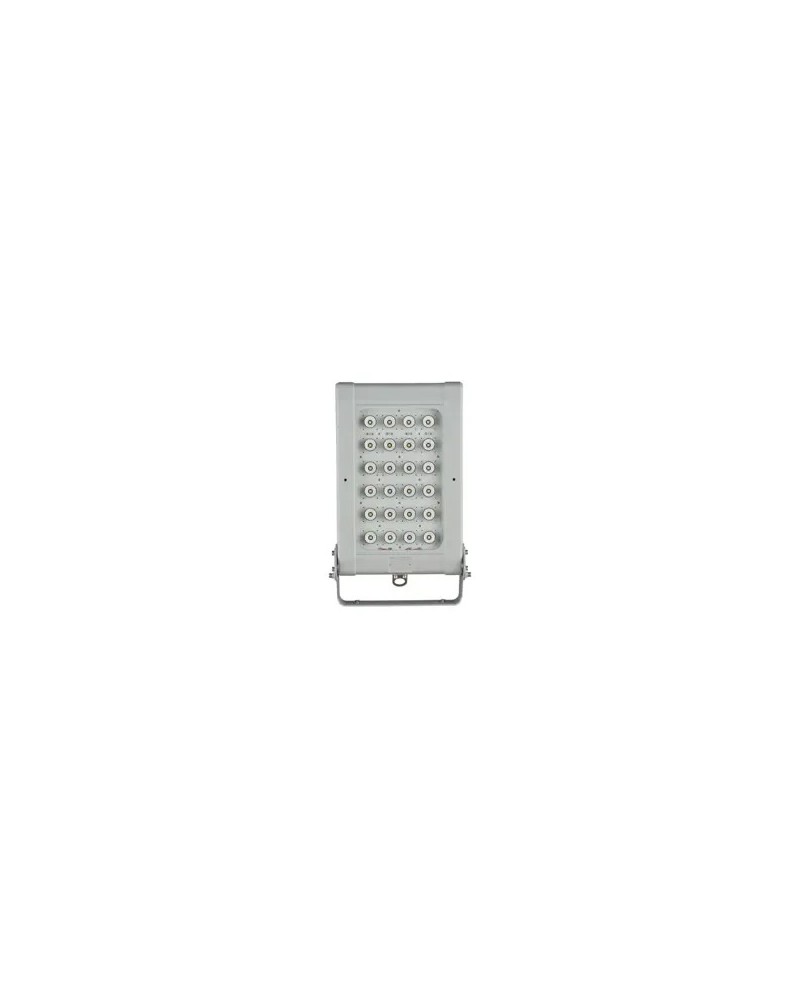

High Power HPFL LED Projector for Zone 2
- ATEX Certified and IEC Ex - Zone 2/22
- Ultra long duration LED
- Powers of 20,000 to 34,000 lumens
- Large operating temperature: -50 ° to + 55 ° C
- Easy installation and maintenance
- 5 year warranty
- Ultra long duration LED
- Powers of 20,000 to 34,000 lumens
- Large operating temperature: -50 ° to + 55 ° C
- Easy installation and maintenance
- 5 year warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan high power projectors range is designed to illuminate large open spaces in dangerous areas. Available with a light power of 20,000 to 34,000 lumens, the high power projector uses long-lasting LED technology for longer than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best market.
References Manufacturer: SPZ-HPFL30K-W-3030, SPZ-HPFL30K-W-6060, SPZ-HPFL30K-W-9090, SPZ-HPFL25K-W-3030, SPZ- HPFL25K-W-6060, SPZ-HPFL25K-W-9090, SPZ-HPFL20K-W-3030, SPZ-HPFL20K-W-6060, SPZ-HPFL20K-W- 9090
| Ambiant temperature | -50°C to +50°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 100-240V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 2/22 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_ABS.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | CML 17ATEX 4149 |
| Certificat_iecex-en_us | IEC EX CML 17.0074 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 5000k |
| Power | 300w |
| Light power | 22971lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
| Mounting type | Fastener |
| Beam angle | 30x30 ° |
| 200w | 1 |
| 120-277V AC | 1 |
| 2910lm | 1 |
