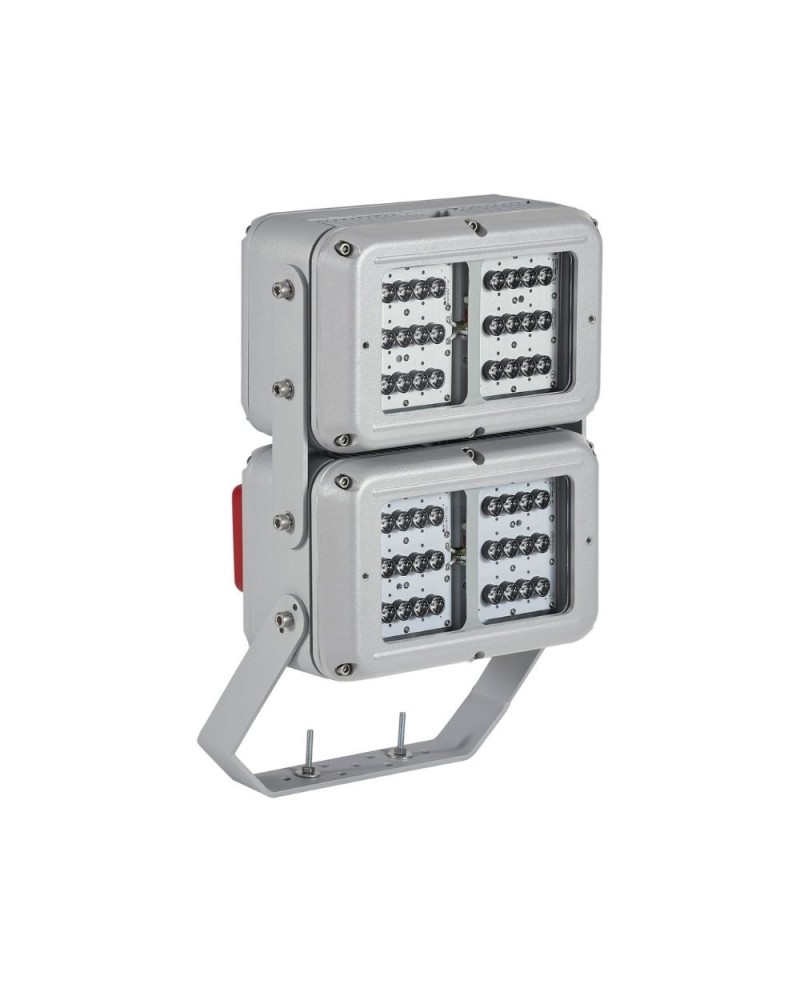

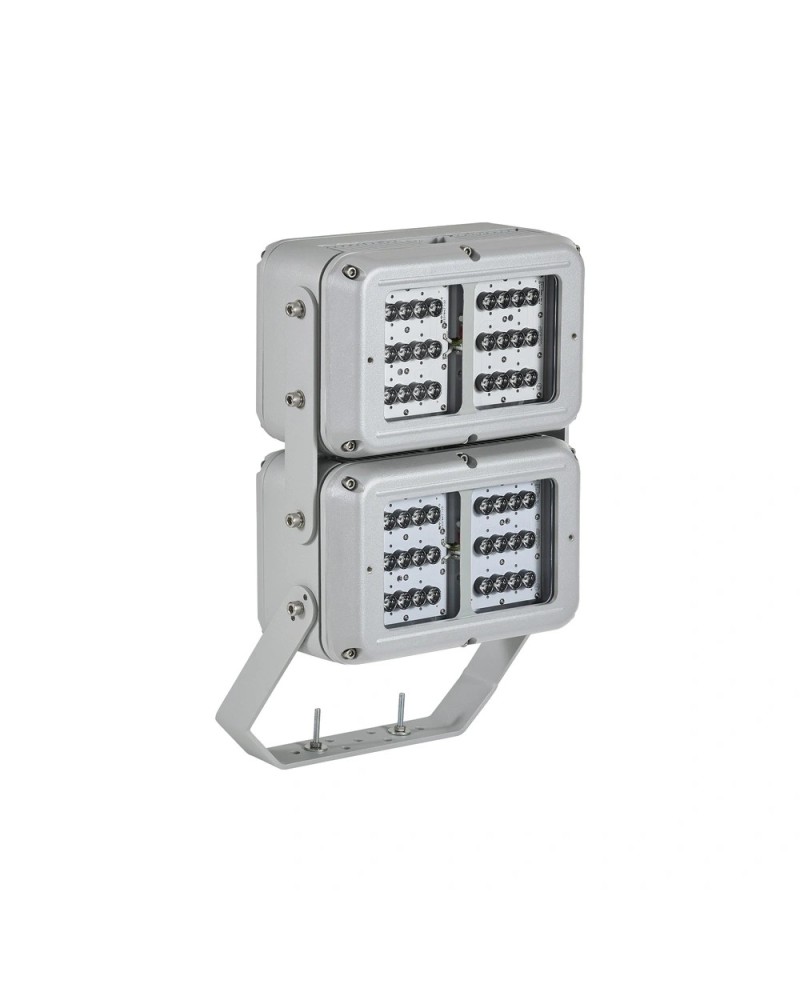

Spartan FL48 LED Projector, Zone 2/22 -A2S
search
  • Spartan FL48 LED Projector, Zone 2/22 -A2S

The Spartan Flood Zone 2 range is designed for hazardous zone environments that require high performance and reliable white lighting. Available with a backup battery and delivering from 9,300 to 18,600 lumens, the FL FLOOD range uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.

References Manufacturer: SPZ-FL48-W-1010, SPZ-FL48-W-1010-EM25, SPZ-FL48-W-3030, SPZ-FL48-W-3030-EM25, SPZ-FL48-W- 5050, SPZ-FL48-W-5050-EM25, SPZ-FL48-W-8080, SPZ-FL48-W-8080-EM25, SPZ-FL48-W-120120, SPZ-FL48-W- 120120-EM25, SPZ-FL48-W-3510, SPZ-FL48-W-3510-EM25, SPZ-FL48-W-6025, SPZ-FL48-W-6025-EM25, SPZ- FL48-W-8030, SPZ-FL48-W-8030-EM25, SPZ-FL48-W-12050, SPZ-FL48-W-12050-EM25
Brand
RAYTEC
Reference
RTC0055
ATEX zone
Zone 2/22
Ambiant temperature
-50°C to +55°C
Temperature class
T4
Warranty
5 year warranty (s)
Feed
110-254V AC
Waterproofing protection (IP)
Ip66.ip67
Application / usage
ATEX zone
Certificates
ATEX.IECEx.UKCA
Frequency (Hz)
50 / 60hz
Material
Aluminum Marine Quality
Certificat_atex-en_us
Cml17atex4231
Certificat_iecex-en_us
IEC EX CML 17.0135
Body colors
Silver (RAL 9006)
Light source
LED
Color temperature
6000k
Power
136w
Light power
18600lm
Luminous flux
10,000 lm and above
Power consumption (W)
100 W and above
Luminaire type
Projecteur LED standard
Réf. : RTC0055

Spartan FL48 LED Projector for Zone 2

Demande de devis
  • Certification ATEX / IECEx
  • Réponse sous 24–48h

- IP66 and 67
- LED ultra long duration and high efficiency
- Low consumption (136W)
- Easy installation and maintenance
- Large operating temperature -50 ° to + 55 °
- Color temperature: 6000K
- 5 year warranty
