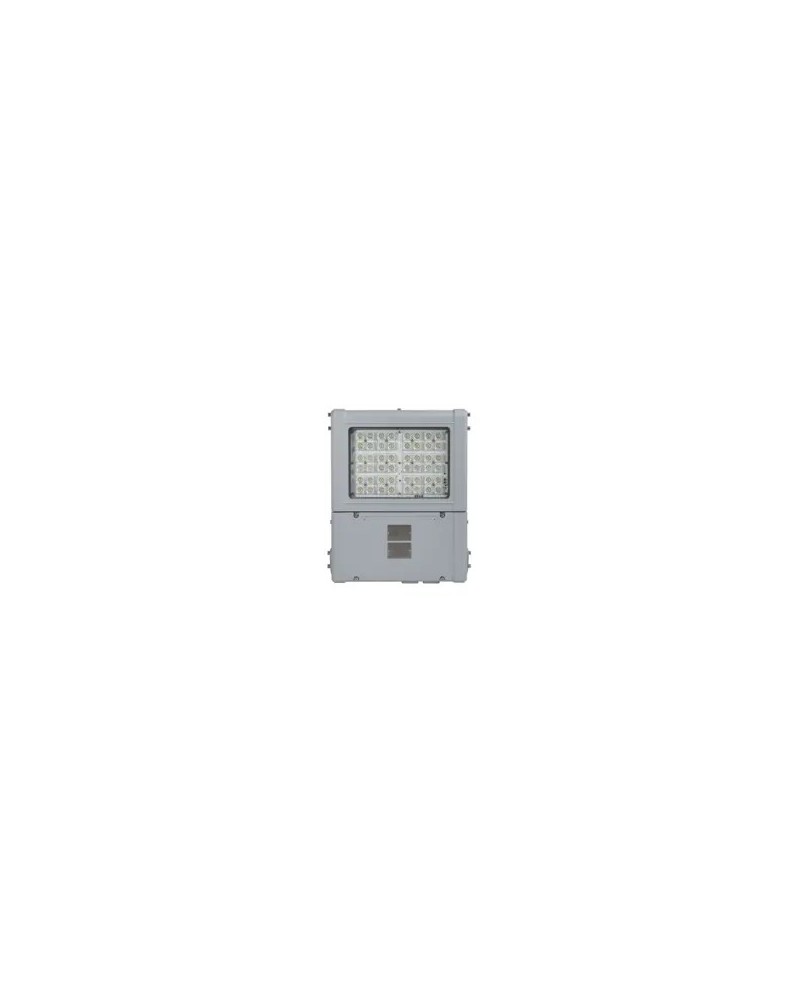

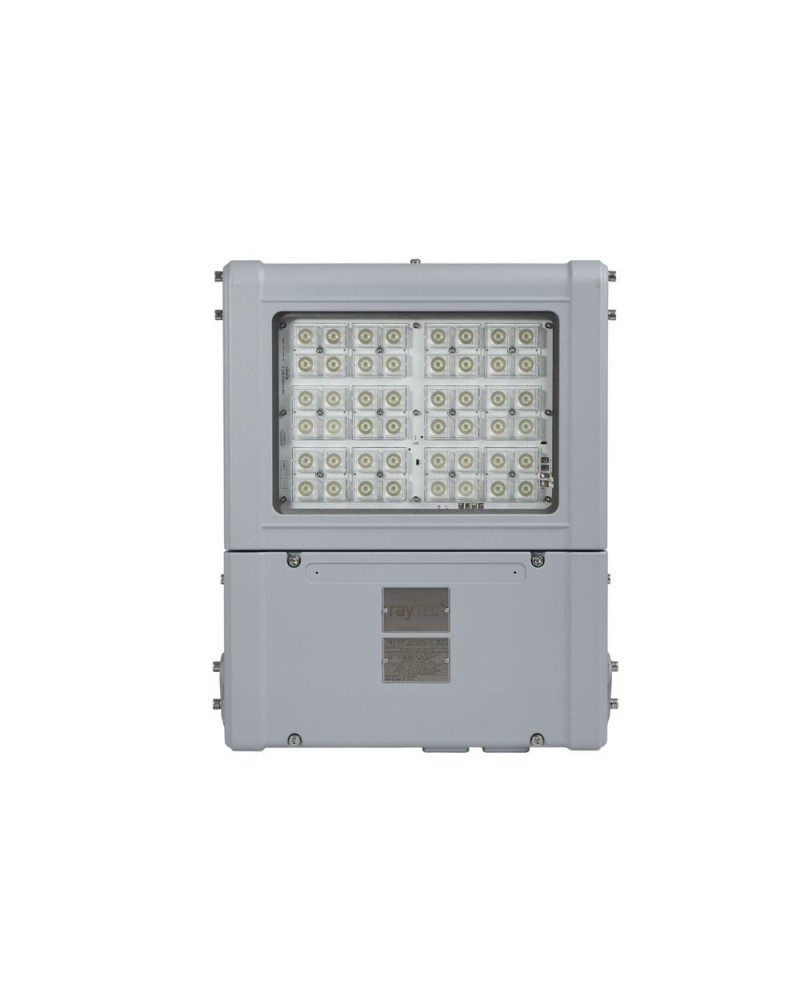

Medium Power LED Projector Spartan MPFL, Zone 2/22 -A2S

Spartan MPFL LED Projector for Zone 2

Name: Spartan MPFL LED Projector for Zone 2
Brand: RAYTEC
SKU: RTC0054

- IP66 and 67
- LED ultra long duration and high efficiency
- Low consumption (40W)
- Easy installation and maintenance
- Large operating temperature -40 ° to + 60 °
- 5 year warranty

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The average power spartan spotlight range is designed to illuminate large open spaces in hazardous environments. Available with a range of different powers ranging from 5,000 to 15,000 lumens, the MID-Power Flood uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.

References Manufacturer: SPZ-MPFL15K-W-12015, SPZ-MPFL15K-W-9090, SPZ-MPFL15K-W-6060, SPZ-MPF15K-W-3030, SPZ-MPFL15K -W-1010, SPZ-MPFL12K5-W-12015, SPZ-MPFL12K5-W-9090, SPZ-MPFL12K5-W-6060, SPZ-MPFL12K5-W-3030, SPZ- MPFL12K5-W-1010, SPZ-MPFL10K-W-12015, SPZ-MPFL10K-W-9090, SPZ-MPFL10K-W-6060, SPZ-MPFL10K-W-3030, SPZ -MPFL10K-W-1010, SPZ-MPFL7K5-W-12015, SPZ-MPFL7K5-W-9090, SPZ-MPFL7K5-W-6060, SPZ-MPFL7K5-W- 3030, SPZ-MPFL7K5-W-1010, SPZ-MPFL5K-W-12015, SPZ-MPFL5K-W-9090, SPZ-MPFL5K-W-6060, SPZ-MPFL5K-W -3030, SPZ-MPFL5K-W-1010

Ambiant temperature	-40 ° to + 60 ° C
Temperature class	T4
Warranty	5 year warranty (s)
Feed	110-254V AC
Waterproofing protection (IP)	Ip66.ip67
Application / usage	ATEX zone
ATEX zone	Zone 2/22
Gas class	IIC
Certificates	ATEX.IECEx.UKCA
Frequency (Hz)	50 / 60hz
Material	Aluminum Marine Quality
Certificat_atex-en_us	CML21ATEX3320 E
Certificat_iecex-en_us	IEC EX CML21.0038
Body colors	Silver (RAL 9006)
Light source	LED
Color temperature	5700k
Power	120w
Shock resistance index	Ik10
40w	1
