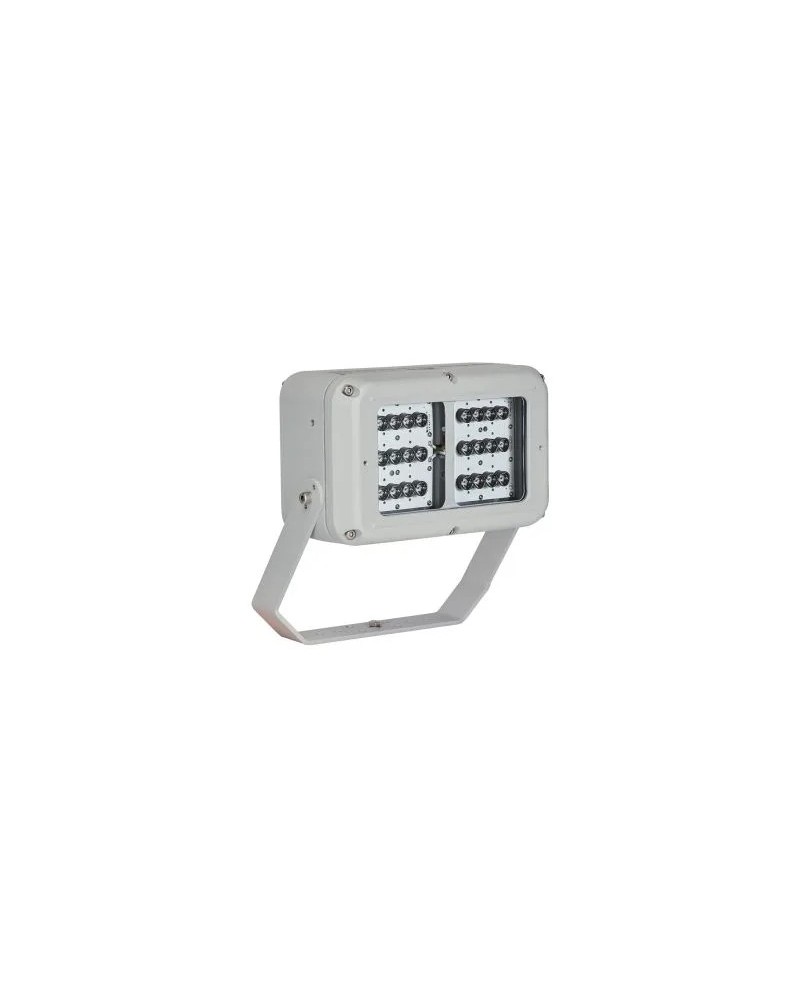

Spartan FL24 LED Projector for Zone 2

Name: Spartan FL24 LED Projector for Zone 2
Brand: RAYTEC
SKU: RTC0053

- ATEX Certified and IEC Ex - Zone 2
- Ultra long duration LED
- LED high efficiency LED
- Easy installation, maintenance and inspection
- Wide operating temperature range: -50 ° C to +55 ° C
- Vario lens technology: easy modification of bundles
- 5 years warranty
- IR variants available
- backup battery (optional)

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The Spartan Flood Zone 2 range is designed for explosive atmospheres that require high performance and reliable white light lighting. Available with a backup battery and delivering from 9,300 to 18,600 lumens, the FL FLOOD range uses proven LED LED technology to ensure a longer life of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.

References Manufacturer: SPZ-FL24-W-1010, SPZ-FL24-W-1010-EM50, SPZ-FL24-W-3030, SPZ-FL24-W-3030-EM50, SPZ-FL24-W-5050, SPZ-FL24-W-5050-EM50, SPZ-FL24-W-8080, SPZ-FL24-W-8080-EM50, SPZ-FL24-W-120120, SPZ-FL24-W-120120- EM50, SPZ-FL24-W-3510, SPZ-FL24-W-3510-EM50, SPZ-FL24-W-6025, SPZ-FL24-W-6025-EM50, SPZ-FL24-W-8030, SPZ-FL24-W-8030-EM50, SPZ-FL24-W-12050, SPZ-FL24-W-12050-EM50

Ambiant temperature	-50°C to +55°C
Temperature class	T4
Warranty	5 year warranty (s)
Feed	110-254V AC
Waterproofing protection (IP)	Ip66.ip67
Application / usage	ATEX zone
ATEX zone	Zone 2/22
Gas class	IIC
Certificates	ATEX.CERTIF_UKCA.IECEx
Frequency (Hz)	50 / 60hz
Material	Aluminum Marine Quality
Certificat_atex-en_us	Cml17atex4231
Certificat_iecex-en_us	CML 17.0135
Body colors	Silver (RAL 9006)
Light source	LED
Color temperature	6000k
Power	68w
Light power	9300lm
Cable entry (s)	2xm20
6500k	1
