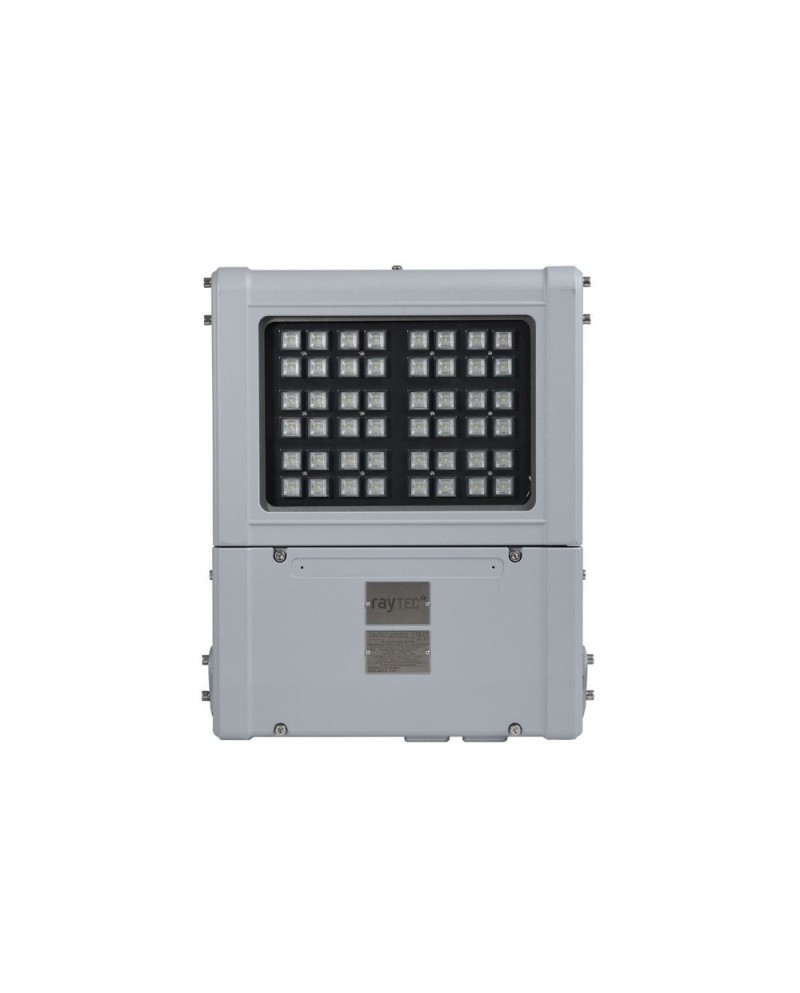

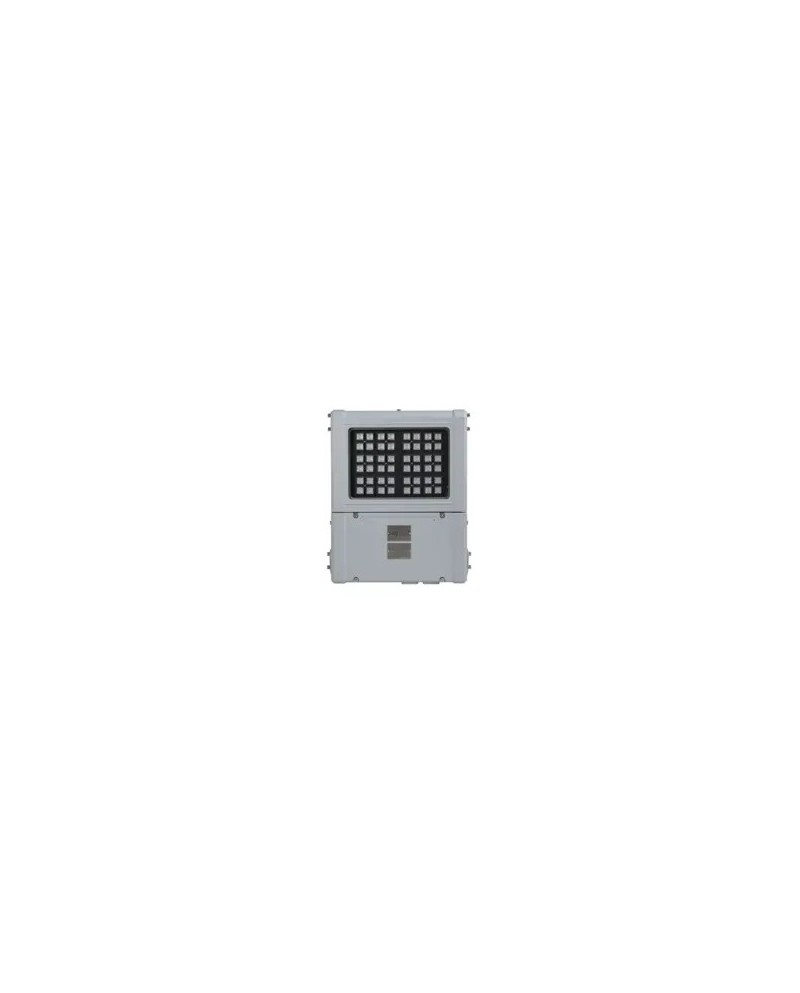

Spartan MPFL LED Projector for Zone 1

Name: Spartan MPFL LED Projector for Zone 1
Brand: RAYTEC
SKU: RTC0046

- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- 5,000 to 15,000 lumens
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- Available in standard or rescued version
- 5 year warranty

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The Spartan Mid-Power Flood range is an ATEX LED projector designed to illuminate large open spaces in hazardous environments. Available with a range of different powers ranging from 5,000 to 15,000 lumens, the MID-Power Flood uses long-lasting LED technology to ensure lifespan of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.

References Manufacturer: SPX-MPFL15K-W-9090, SPX-MPFL15K-W-6060, SPX-MPFL15K-W-3030, SPX-MPFL12K5-W-9090, SPX- MPFL12K5-W-6060, SPX-MPFL12K5-W-3030, SPX-MPFL10K-W-9090, SPX-MPFL10K-W-6060, SPX-MPFL10K-W-3030, SPX -MPFL7K5-W-9090, SPX-MPFL7K5-W-6060, SPX-MPFL7K5-W-3030, SPX-MPFL5K-W-9090, SPX-MPFL5K-W-6060, SPX-MPFL5K-W-3030, SPX-MPFL15K-W-9090-EMX90, SPX-MPFL10K-W-9090-EMX180

Ambiant temperature	-40 ° to + 60 ° C
Temperature class	T4
Warranty	5 year warranty (s)
Feed	110-254V AC
Waterproofing protection (IP)	Ip66.ip67
Application / usage	ATEX zone
ATEX zone	Zone 1/21
Gas class	IIC
ATEX protection mode	Ex e (increased security)
Certificates	ATEX.CERTIF_ABS.CERTIF_UKCA.IECEx
Frequency (Hz)	50 / 60hz
Material	Aluminum Marine Quality
Certificat_atex-en_us	Cml21atex3317
Certificat_iecex-en_us	IEC EX CML21.0037
Body colors	Silver (RAL 9006)
Light source	LED
Color temperature	5700k
Power	120w
Light power	15000lm
Cable entry (s)	2xm20
40w	1
5000lm	1
