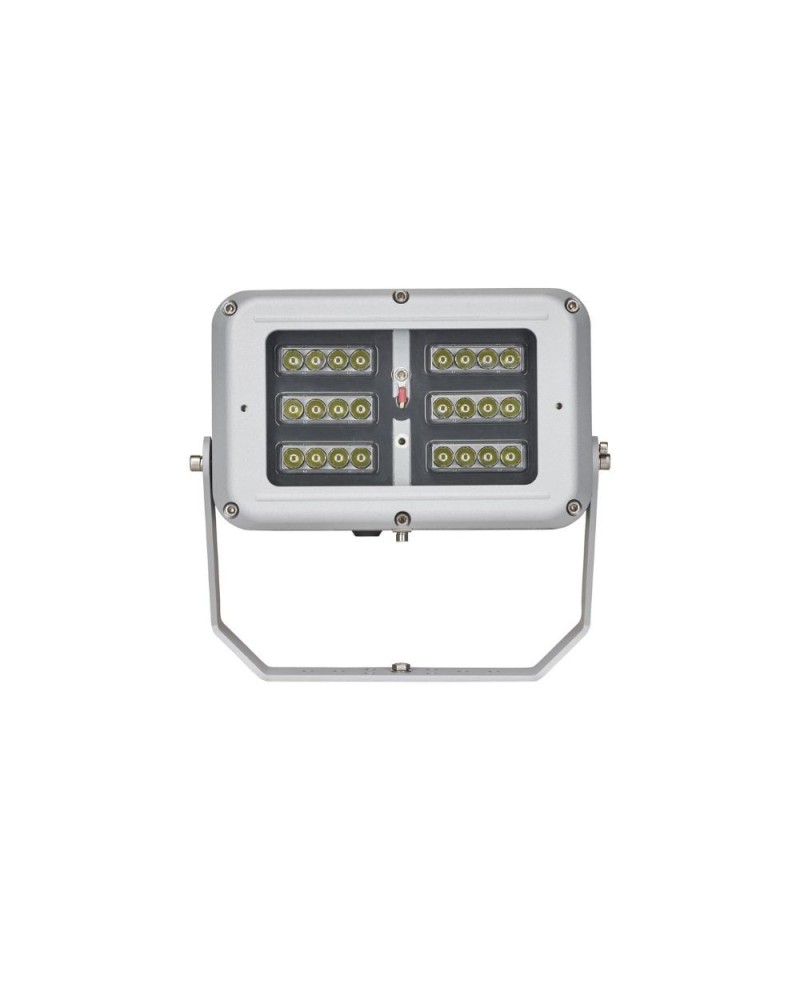

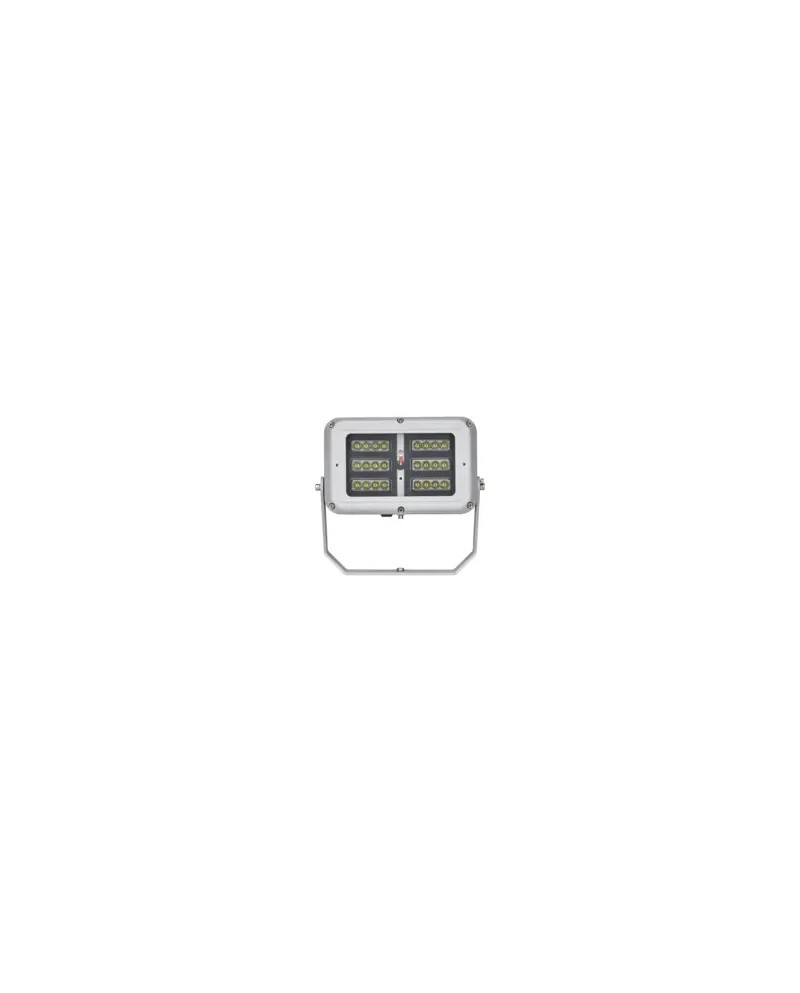

Spartan FL24 LED Projector for Zone 1
- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- 68W - 8450LM
- IP66 & 67
- Easy installation and maintenance
- Large operating temperature: -52 ° to + 55 ° C
- 5 year warranty
- Ultra long duration LED
- 68W - 8450LM
- IP66 & 67
- Easy installation and maintenance
- Large operating temperature: -52 ° to + 55 ° C
- 5 year warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan Flood range is designed for dangerous environments that require high performance and reliable white light lighting. Available with a backup battery and delivering from 8,450 to 16,900 lumens, the FL FLOOD range uses long-lasting LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-FL24-W-1010, SPX-FL24-W-1010-EM50, SPX-FL24-W-3030, SPX-FL24-W-3030-EM50, SPX-FL24-W-5050, SPX-FL24-W-5050-EM50, SPX-FL24-W-8080, SPX-FL24-W-8080-EM50, SPX-FL24-W-120120, SPX-FL24-W-120120- EM50, SPX-FL24-W-3510, SPX-FL24-W-3510-EM50, SPX-FL24-W-6025, SPX-FL24-W-6025-EM50, SPX-FL24-W-8030, SPX-FL24-W-8030-EM50, SPX-FL24-W-12050, SPX-FL24-W-12050-EM50
| Ambiant temperature | -52 ° C to + 55 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_ABS.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | Cml13atex3007 |
| Certificat_iecex-en_us | IEC EX CML 14.0001 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6000k |
| Power | 68w |
| Light power | 8550lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
| Beam angle | 10x10 ° |
| -20 ° C to + 55 ° C | 1 |
| Aluminum | 1 |
| Ip67.ip68 | 1 |
| 120x120 ° | 1 |
| Ex of | 1 |
| 8200lm | 1 |
