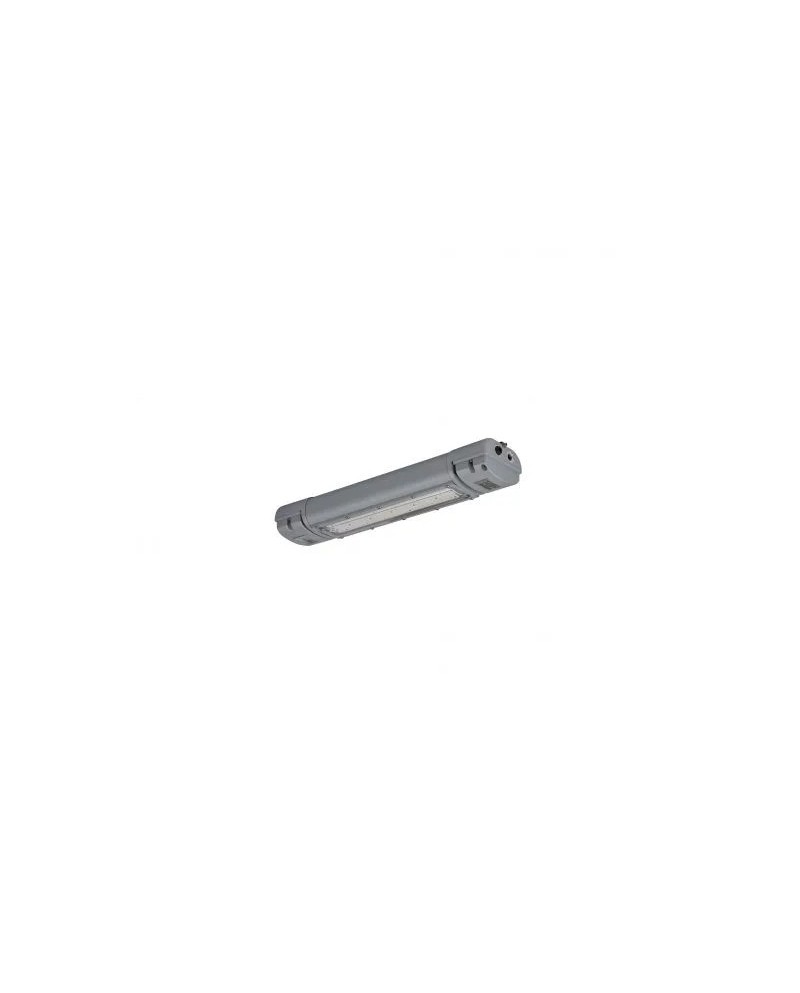

The Spartan Linear WL84 High Output Zone 2/22 is an ideal solution for new installations in hazardous areas, offering twice as many lumens than standard linear Spartan while maintaining the same appearance and feeling of the luminaire. The increase in power means that fewer luminaires are needed in a facility with traditional linear luminaires, while Spartan Linear High Output can also be used as a cost-effective alternative to low bay lights.
References Manufacturer: SPZ-WL84-HO-SP
- Brand
- RAYTEC
- Reference
- RTC0120
- ATEX zone
- Zone 2/22
- Ambiant temperature
- -40 ° to + 60 ° C
- Temperature class
- T4
- Warranty
- 5 years
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- Gas class
- IIC
- Certificates
- ATEX.IECEx.UKCA
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum Marine Quality
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 48w
- Light power
- 7048lm
- Shock resistance index
- Ik10
- Luminous flux
- 6,000 to 9,999 lm
- Power consumption (W)
- 30 to 59 W
- Luminaire type
- Linear luminaire
