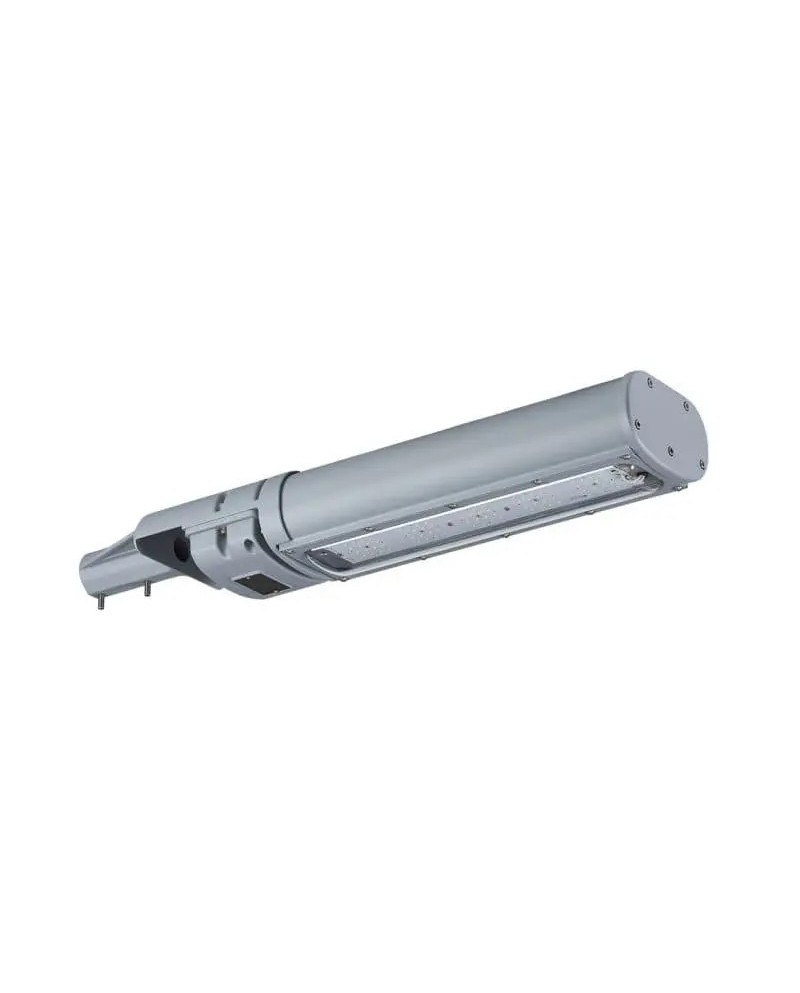

The Spartan Linear Spigot range is designed to modernize existing fluorescent pole installations or for new post mounting applications in dangerous areas. Fittings or for use in new facilities in dangerous zone. The built-in spindle support is designed to fit posts up to 42 mm in diameter and is fully wrapped up for the protection of the environment. All Spartan luminaires are designed and manufactured in the United Kingdom and benefit from a 5-year warranty, the best sector.
References Manufacturer: SPZ-WL84-SP, SPZ-WL84-EMX25-SP
- Brand
- RAYTEC
- Reference
- RTC0119
- ATEX zone
- Zone 2/22
- Ambiant temperature
- -40 ° to + 60 ° C
- Warranty
- 5 year warranty (s)
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- Gas class
- IIC
- Certificates
- ATEX.IECEx.UKCA
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum Marine Quality
- Certificat_atex-en_us
- Cml15atex4138
- Certificat_iecex-en_us
- IEC EX CML15.0068
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 24w
- Light power
- 3524lm
- Shock resistance index
- Ik10
