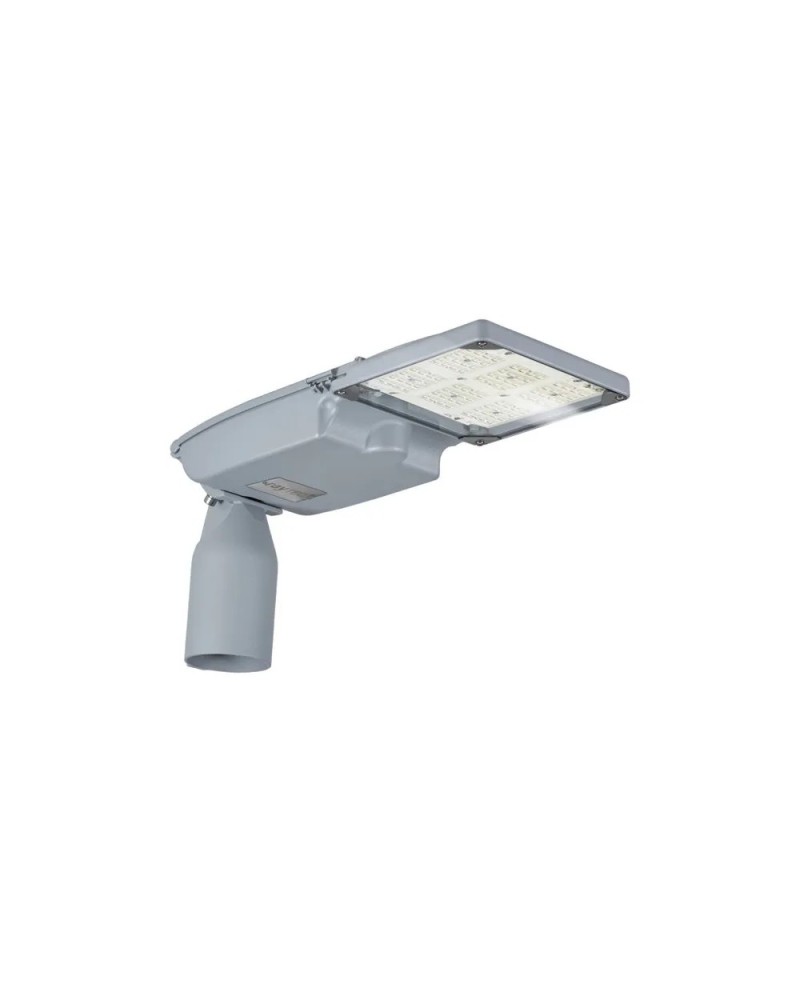

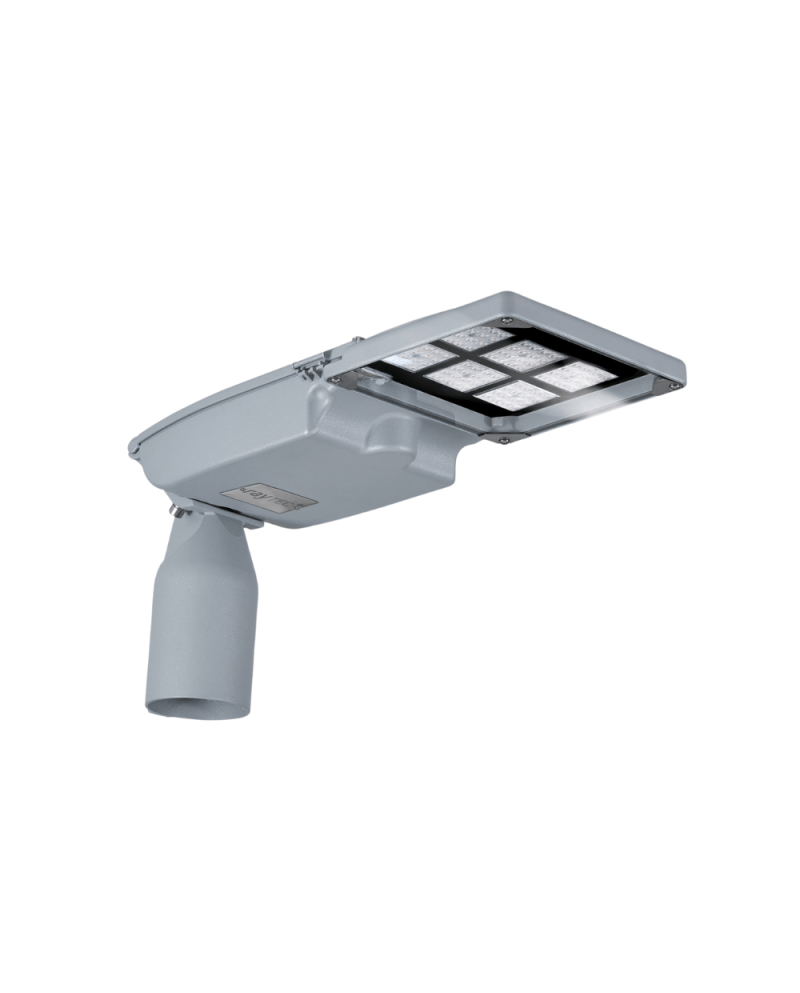

Spartan Street is a powerful ex versatile ex versatile luminaire for use in a wide range of dangerous areas of areas 1 and 21. Available with a range of optics, Spartan Street is the ideal solution for illuminating access roads, gateways or perimeters. It can also be used for the general lighting of the car parks or other areas located on sites deemed at high risk or classified dangerous zone.
References Manufacturer: SPX-SL96-4K-PP1, SPX-SL96-4K-PP2, SPX-SL96-4K-PP3, SPZ-SL96-4K-PP1, SPZ-SL96-4K -pp2, SPZ-SL96-4K-PP3
- Brand
- RAYTEC
- Reference
- RTC0116
- ATEX zone
- Zone 1/21
- Ambiant temperature
- -40 ° C to + 50 ° C
- Temperature class
- T4
- Warranty
- 5 years
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip66
- Application / usage
- ATEX zone
- Gas class
- IIC
- Certificates
- ATEX.IECEx.UKCA
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum Marine Quality
- Certificat_atex-en_us
- CML 23atex3246x
- Certificat_iecex-en_us
- IECEX CML 23.0094X
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Color temperature
- 4000k
- Power
- 53w
- Light power
- 6770lm
- Shock resistance index
- Ik07
- Cable entry (s)
- 2xm20
- Luminous flux
- 6,000 to 9,999 lm
- Power consumption (W)
- 30 to 59 W
- Luminaire type
- Street light
