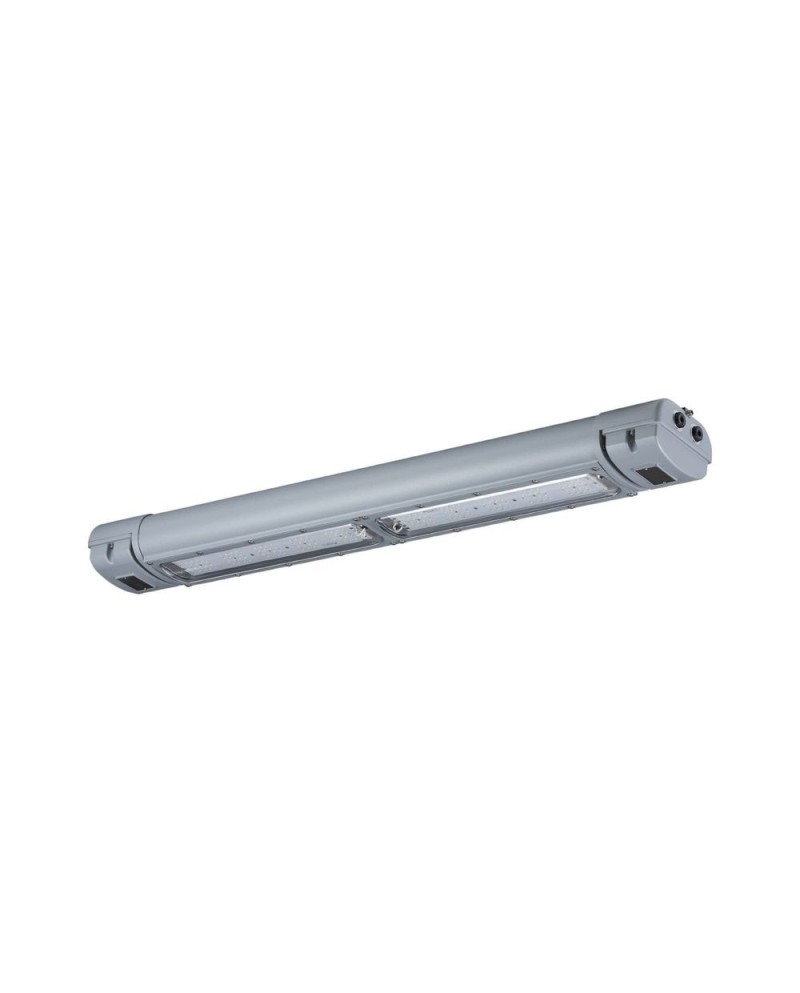

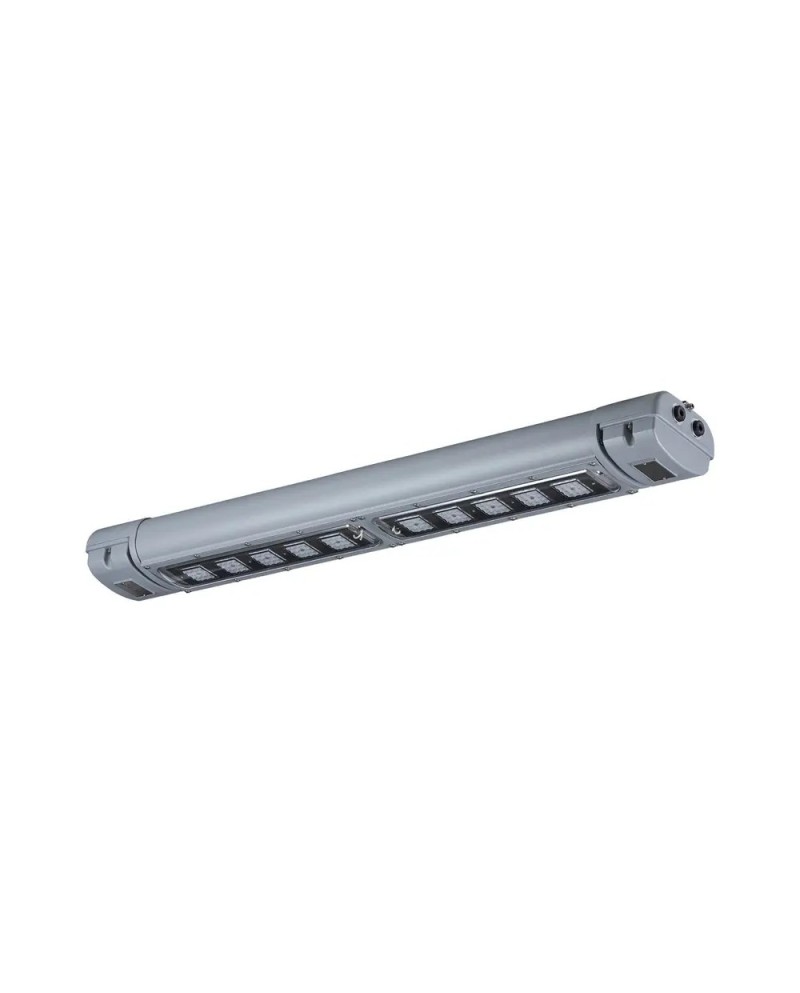

The Spartan Linear High Output range is an ideal solution for new installations in dangerous areas - LED CID2 lighting, offering twice more lumens than standard linear spartan while maintaining the same appearance and feeling of the luminaire. The increase in power means that fewer luminaires are needed in a facility with traditional linear luminaires, while Spartan Linear High Output can also be used as a cost-effective alternative to low bay lights.
References Manufacturer: SPZ-WL168-HO-Z21
- Brand
- RAYTEC
- Reference
- RTC0099
- ATEX zone
- Zone 1/21
- Ambiant temperature
- -40°C to +55°C
- Temperature class
- T4
- Warranty
- 5 year warranty (s)
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- Gas class
- IIC
- ATEX protection mode
- Ex of
- Certificates
- ATEX
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum Marine Quality
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 96w
- Light power
- 14096lm
- Shock resistance index
- Ik10
