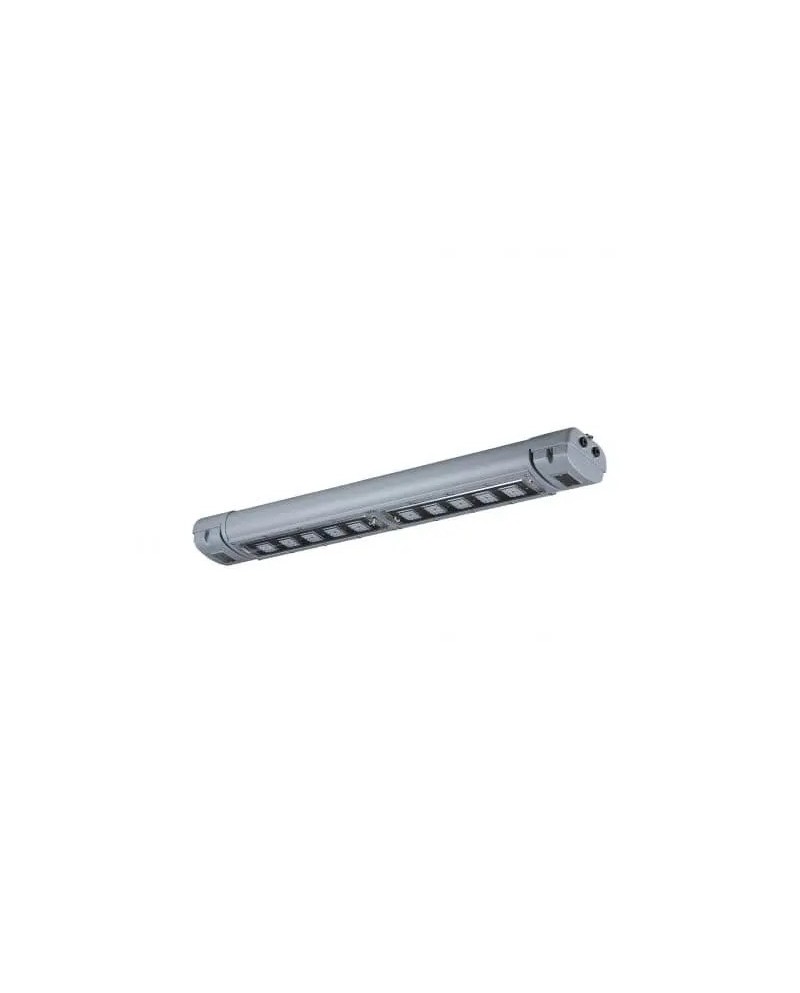

The Spartan Linear range is designed to modernize conventional fluorescent luminaires or for use in new facilities in dangerous areas. Ex Linear lighting designed to provide extreme levels of durability and a unique modular design that makes maintenance fast and easy. All Spartan luminaires are designed and manufactured in the United Kingdom and benefit from a 5-year warranty, the best sector.
References Manufacturer: SPX-WL168-HO
- Brand
- RAYTEC
- Reference
- RTC0092
- ATEX zone
- Zone 1/21
- Ambiant temperature
- -40 ° to + 60 ° C
- Temperature class
- T4
- Warranty
- 5 years
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- ATEX.CERTIF_ABS.IECEx.UKCA
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum Marine Quality
- Certificat_atex-en_us
- Cml14atex3119
- Certificat_iecex-en_us
- Iecexcml15.0001
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Shock resistance index
- Ik10
- Cable entry (s)
- 2xm20
- Luminous flux
- 10,000 lm and above
- Power consumption (W)
- 60 to 99 W
- Luminaire type
- Linear luminaire
