LED LED LED SPARTAN WL84 ZONE 1/21 - A2S

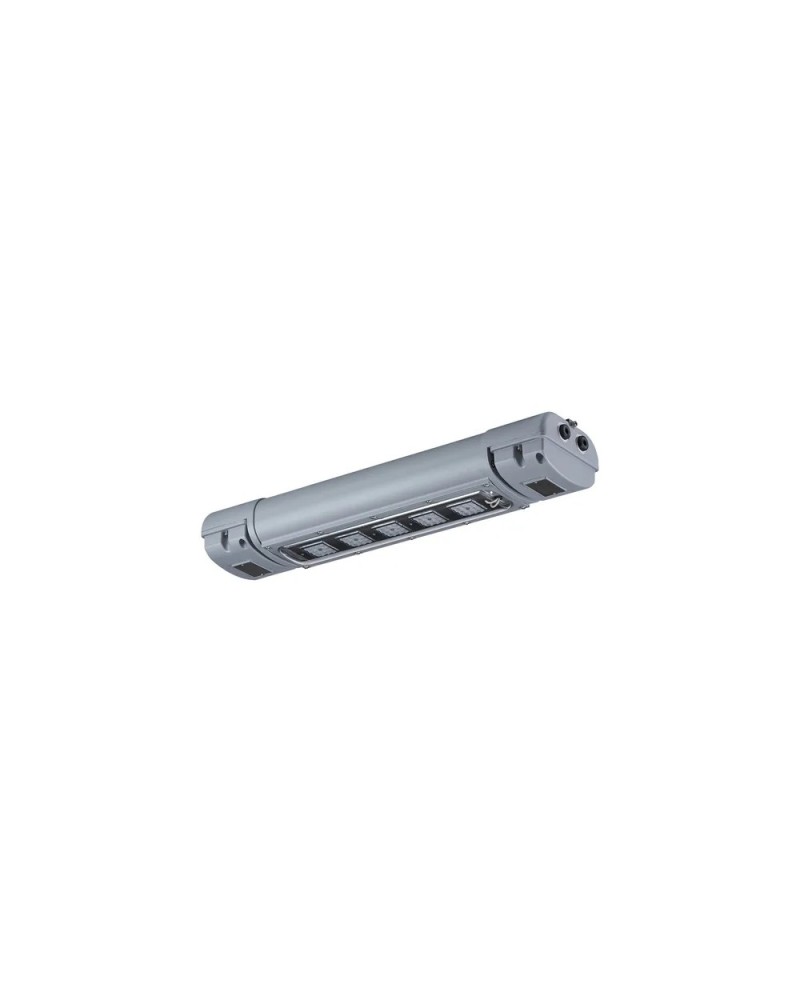

Linear LED LED Light LED Power Spartan WL84 for Zone 1

Name: Linear LED LED Light LED Power Spartan WL84 for Zone 1
Brand: RAYTEC
SKU: RTC0091

- Certified ATEX and IEC EX - ZONE 1/21
- LED ultra long duration and high efficiency
- High performance exit level: 6130lm
- Low consumption: 48W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The Spartan Linear High Output range is an ideal solution for new installations in dangerous areas, offering twice as many lumens as the standard linear Spartan while maintaining the same appearance and feeling of the luminaire. The increase in power means that fewer luminaires are needed in a facility with traditional linear luminaires, while Spartan Linear High Output can also be used as a cost-effective alternative to low bay lights.

References Manufacturer: SPX-WL84-HO, SPX-WL84-HO-EMX25, SPX-WL84-HO-WB

Ambiant temperature	-40 ° to + 60 ° C
Temperature class	T4
Warranty	5 year warranty (s)
Feed	110-254V AC
Waterproofing protection (IP)	Ip66.ip67
Application / usage	ATEX zone
ATEX zone	Zone 1/21
Gas class	IIC
ATEX protection mode	Ex e (increased security)
Certificates	ATEX.CERTIF_ABS.IECEx.UKCA
Frequency (Hz)	50 / 60hz
Material	Aluminum Marine Quality
Certificat_atex-en_us	Cml14atex3119
Certificat_iecex-en_us	Iecexcml15.0001
Body colors	Silver (RAL 9006)
Light source	LED
Color temperature	6500k
Power	48w
Light power	6130lm
Shock resistance index	Ik10
Cable entry (s)	2xm20
