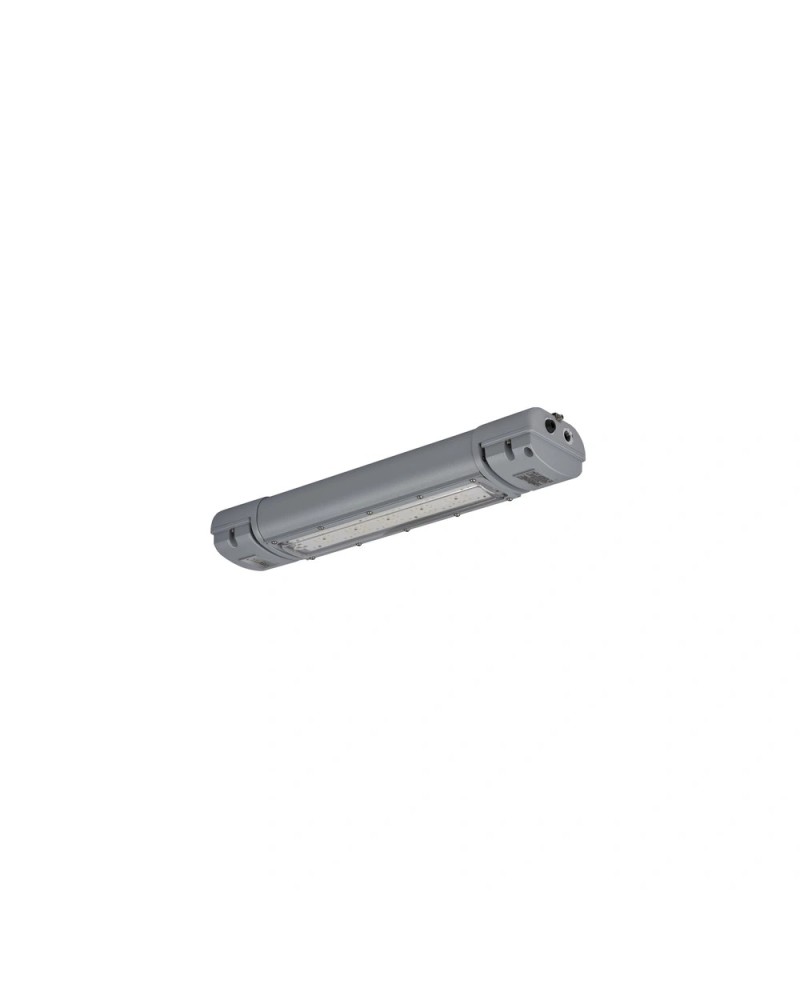

The Warrior Linear range is ideal for new facilities or to modernize existing fluorescent facilities that require high performance and reliable white light lighting. These products are designed for use in heavy industrial applications. Using proven LED LED technology, the WL84 Industrial Linear is specially designed for harsh environments and operations. The overall dimensions, the fastening centers and the cable glands are compatible with the current 2x18W fluorescent lamps, with a light stream and a light distribution also offering a direct replacement. Thermal management technology guarantees a lifespan of more than 10 years while providing a luminous flux up to 3,524 lumens delivered. All Warrior luminaires are accompanied by a 5 year warranty, the best industry.
References Manufacturer: SPI-WL84, SPI-WL84-EMX25, SPI-WL84-LL, SPI-WL84-1200, SPI-WL84-1200-EMX25
- Brand
- RAYTEC
- Reference
- RTC0025
- ATEX zone
- Zone 1/21
- Ambiant temperature
- -40 ° to + 60 ° C
- Temperature class
- T4
- Warranty
- 5 year warranty (s)
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- Industry
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- Ce.certif_ukca
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum Marine Quality
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 24w
- Charger
- 1¨
- Light power
- 3524lm
- Shock resistance index
- Ik10
- Cable entry (s)
- 2xm20
- 48w
- 1
- 6130lm
- 1
