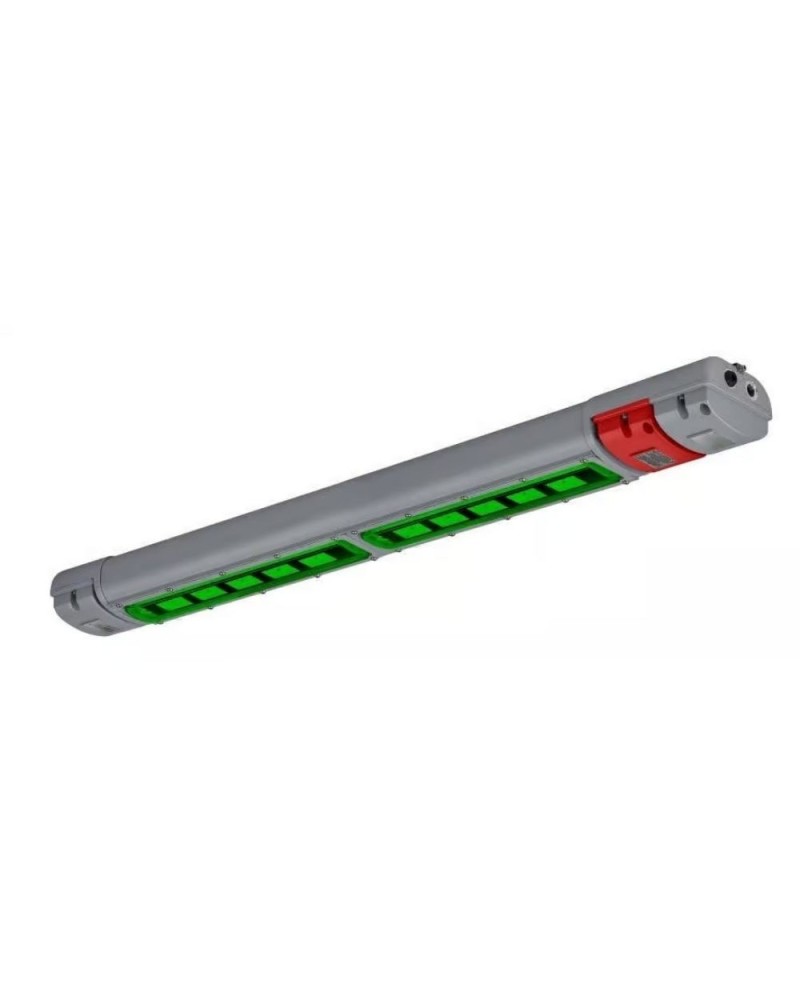

The Spartan Linear range is designed for new facilities in ATEX zone or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL168 Linear is globally certified for all zone 2. Applications Overall dimensions, mounting centers and cable glands are compatible with 2x36W common fluorescents, with a luminous flux and a light distribution offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a life of 10 years and more while providing a luminous flux up to 7,048 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPZ-WL168-G, SPZ-WL168-EMX25-G
- Brand
- RAYTEC
- Reference
- RTC0020
- ATEX zone
- Zone 2/22
- Ambiant temperature
- -40 ° to + 60 ° C
- Temperature class
- T4
- Warranty
- 5 years
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- Gas class
- IIC
- Certificates
- Atex.iecex
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum Marine Quality
- Certificat_atex-en_us
- Cml15atex4138
- Certificat_iecex-en_us
- IEC EX CML15.0068
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 49w
- Charger
- 1¨
- Light power
- 7048lm
- Shock resistance index
- Ik10
- 12V AC / DC
- 1
- Luminous flux
- 6,000 to 9,999 lm
- Power consumption (W)
- 30 to 59 W
- Luminaire type
- Linear luminaire
