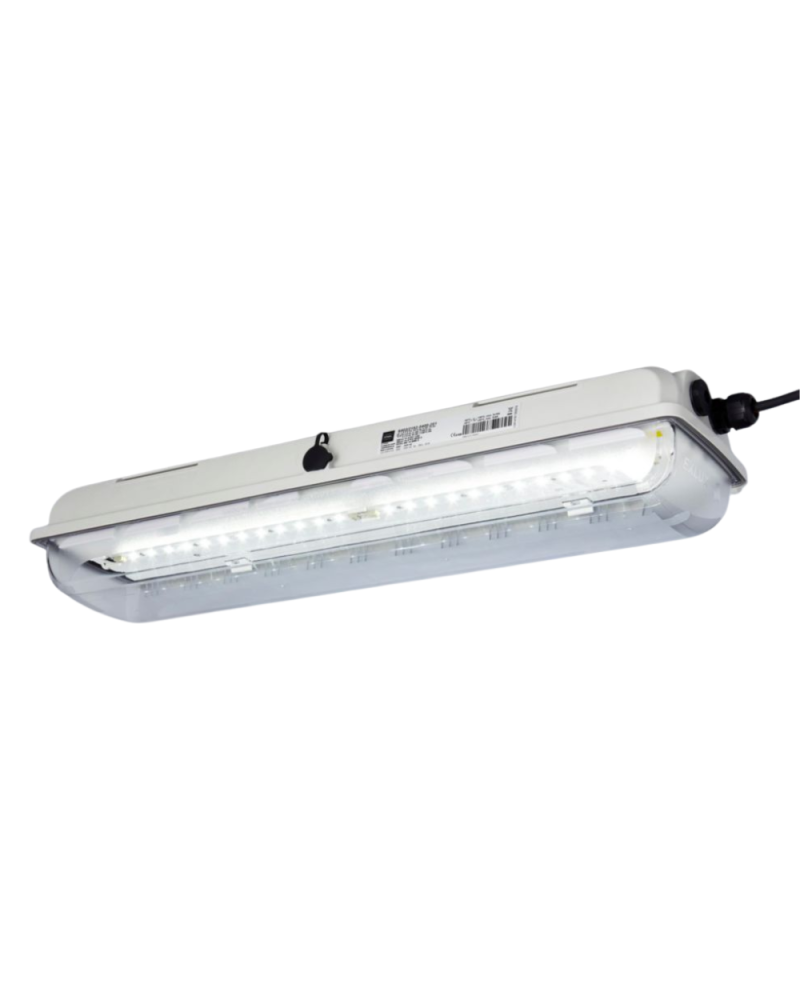

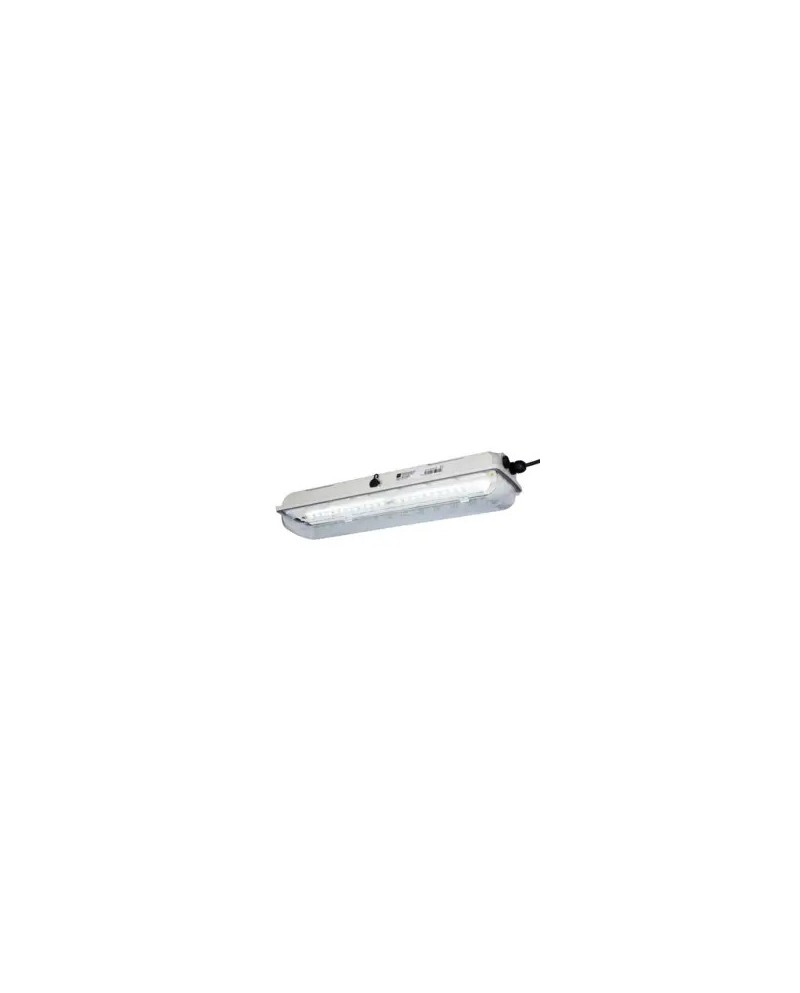

ATEX LED LUMINAIRE 6002 Series
- high efficiency high efficiency LED technology and long service life
- Extremely high light efficiency
- Luminous flux of 90% of the initial flow after 100,000 h
- Optional with DALI for control and monitoring of the luminaire
- optional equipment with an addressing element for direct control by a centralized power system
- Extremely high light efficiency
- Luminous flux of 90% of the initial flow after 100,000 h
- Optional with DALI for control and monitoring of the luminaire
- optional equipment with an addressing element for direct control by a centralized power system
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 6002/4 series LED basin luminaire is particularly suitable for surface lighting at a mounting height up to 10 m. The lighting of work equipment and outdoor objects and objects is an additional field of application. The luminaire can be easily mounted on masts with the "mast pad" accessory. The luminaire can be equipped with an optional addressing element. This allows the control and monitoring of the luminaire by centralized power systems.
References Manufacturer: 267058,267059,267067,267074,267077,267080,268133,268134,285105,272 497,278025,275778,271826,320686,316779,272390,272391,275740,285106, 285107,289197,272498,278026,277614,272258,271827,272398,267087,27 6553,275741,288600,278348,278349,276336,276335,276337,276339,276338
| Ambiant temperature | -40 ° C to + 50 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 100-240V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Epoxy resin |
| Certificat_atex-en_us | Ibexu14atex1088 |
| Certificat_iecex-en_us | Iecexibe140035 |
| Body colors | Ral7035 |
| Light source | LED |
| Color temperature | 5000k |
| Power | 22w |
| Light power | 2910lm |
| Shock resistance index | Ik10 |
| Ip66 | 1 |
| 50w | 1 |
| -20 ° C to + 50 ° C | 1 |
| Ex e (increased security) | 1 |
| 2500lm | 1 |
| 4000k | 1 |
| Silver (RAL 9006) | 1 |
| ZONE 2/21/22 | 1 |
