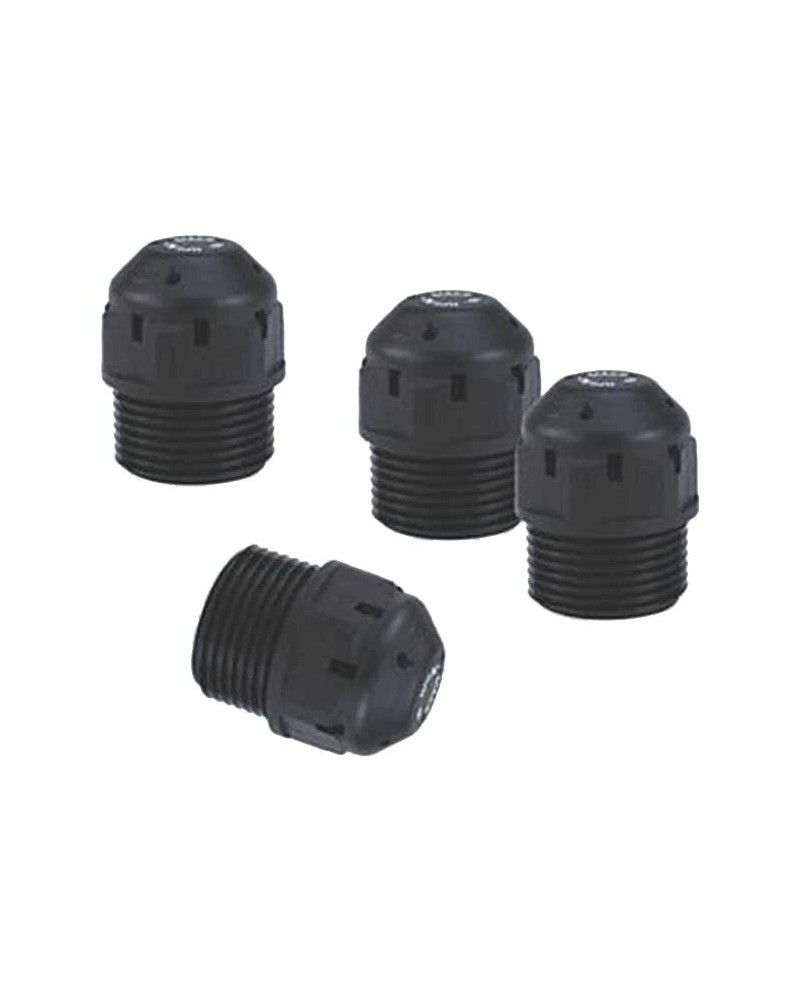

8162/9 Series Respirator Cap
- More safety thanks to the prevention of condensation moisture in cabinets
- Constant pressure compensation between housing and the environment
- Ex e protection mode (increased security), max. Degree of protection IP54
- Constant pressure compensation between housing and the environment
- Ex e protection mode (increased security), max. Degree of protection IP54
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Aerators of the Aerators of the 8162 series guarantee a continuous compensation of the pressure between the inside of the housing and the ambient atmosphere. This ventilation prevents moisture from entering the housing by the joints and condensed there. The respiratory caps are in GRP and meet the maximum requirements of the degree of protection IP54.
References Manufacturer: 115738
| Ambiant temperature | -40 ° to + 70 ° |
|---|---|
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip54 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | FM |
| Material | Polyamide |
| Body colors | Black |
| Threading type | NPT |
