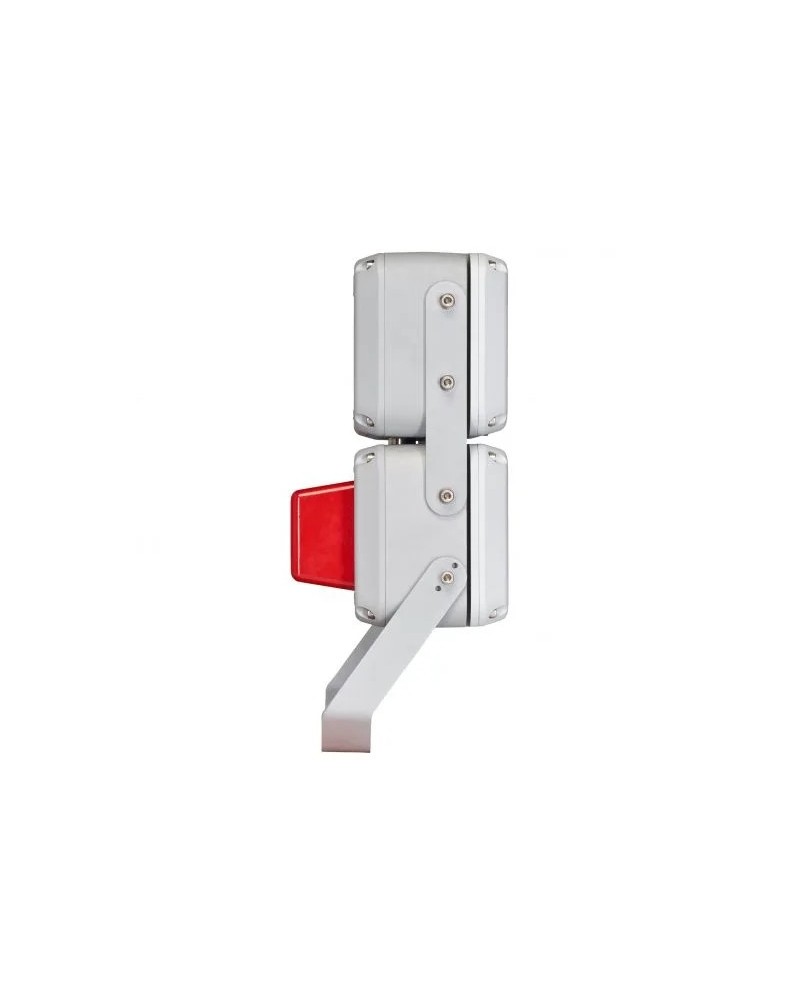

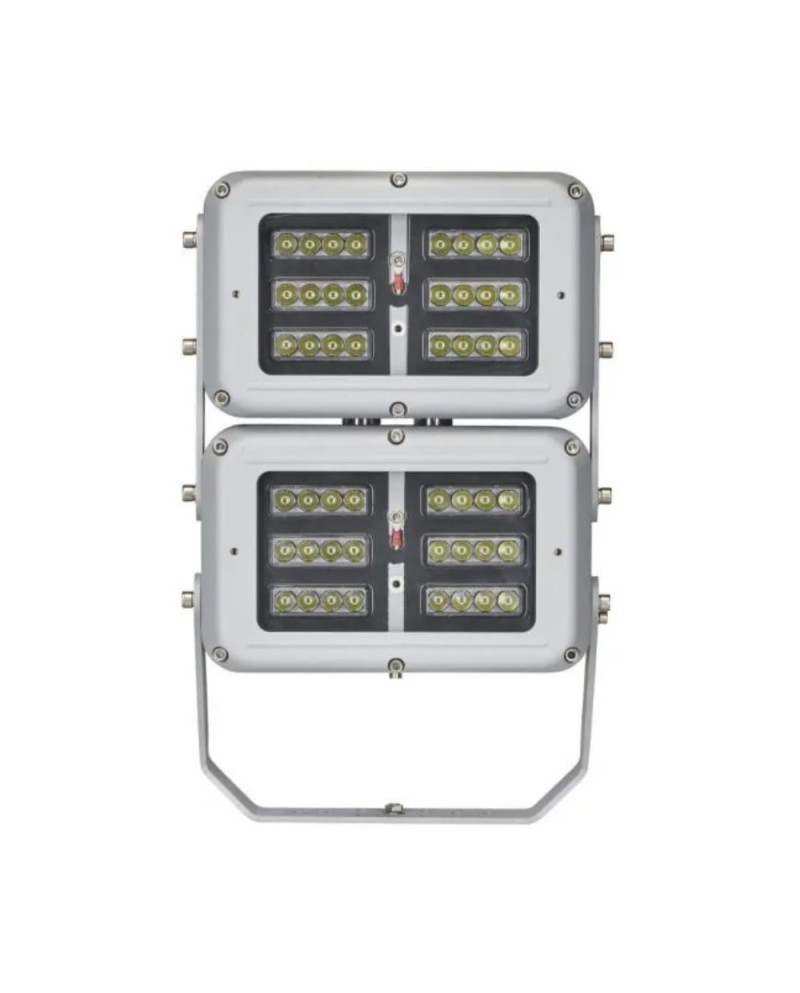

Spartan FL48 LED Projector for Zone 1
- IP66, 67
- Ambient temperature: -20 ° C to 55 ° C
- Electric power: 139W
- Light power: 18600lm
- Ambient temperature: -20 ° C to 55 ° C
- Electric power: 139W
- Light power: 18600lm
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan FL48 LED projector is a high-end lighting designed for demanding environments, particularly in classified areas 1/21 zones (explosive risk areas). This projector uses LED technology and offers a precise beam of 10 ° X10 °, perfect for specific applications where a directional light is needed. The "Emergency Variant" option allows the projector to operate with a reduced output of 25% in case of emergency, ensuring extended autonomy while maintaining effective lighting in critical conditions.
References Manufacturer: SPX-FL48-W-1010-EM25, SPX-FL48-W-3030-EM25, SPX-FL48-W-5050-EM25, SPX-FL48-W-8080-EM25, SPX-FL48-W-120120-EM25, SPX-FL48-W-3510-EM25, SPX-FL48-W-6025-EM25, SPX-FL48-W-8030-EM25, SPX- FL48-W-12050-EM25
| Ambiant temperature | -20°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Certificat_atex-en_us | Cml13atex3007 |
| Certificat_iecex-en_us | CEI EX CML 14.0001 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6000k |
| Power | 139w |
| Light power | 16900lm |
| 15000lm | 1 |
