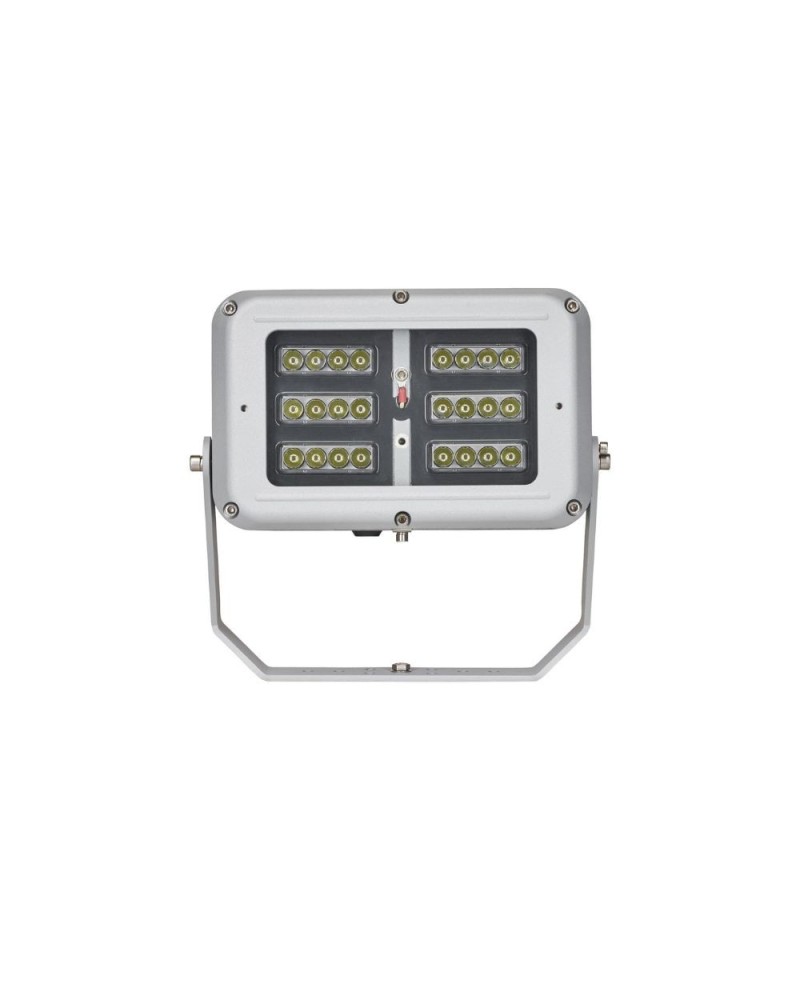

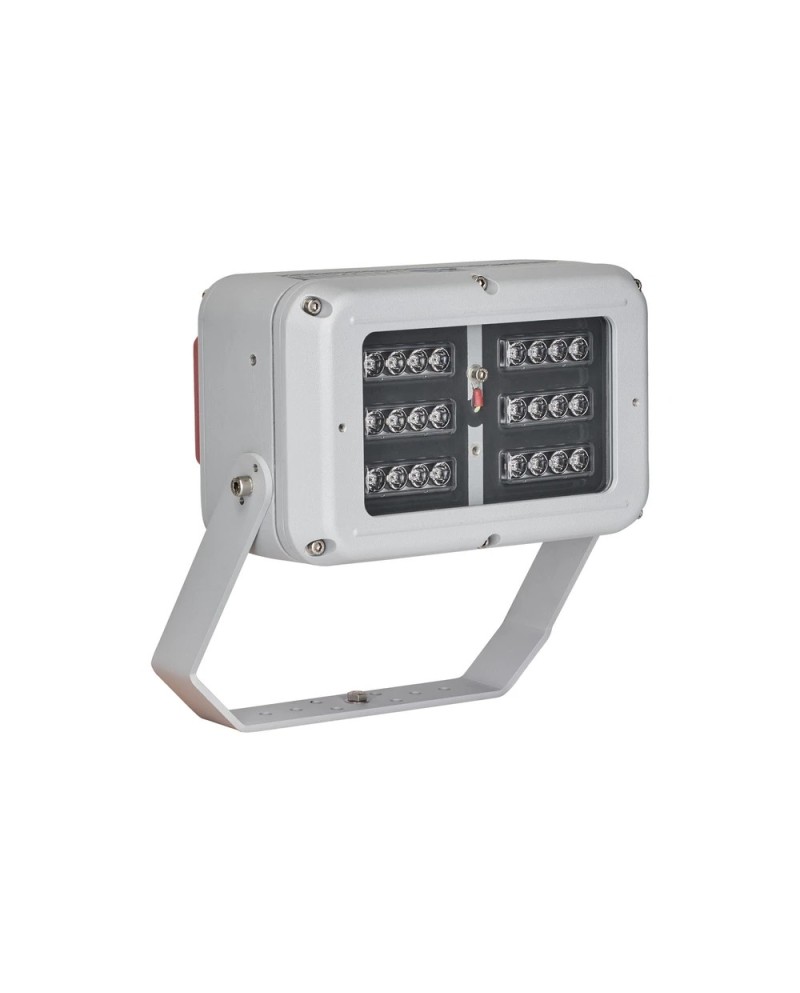

LED Projector Spartan Series FL24, Zone 1/21 - A2S

Spartan FL24 LED projector, 1/21 area, white light - intelligent rescued version (50% output)

Name: Spartan FL24 LED projector, 1/21 area, white light - intelligent rescued version (50% output)
Brand: RAYTEC
SKU: RTC0185

- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- 71W - 8450LM
- IP66 & 67
- Easy installation and maintenance
- Large operating temperature: -20 ° to + 55 ° C
- 5 year warranty

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The SPARTAN FL24 LED projector, specially designed for use in zone 1/21, is a high-performance lighting solution that is suitable for environmentally explosive atmospheres (gas and dust) environments. Thanks to its powerful white light, it offers precise illumination with a narrow beam of 10 ° x 10 °, ideal for targeted directional lighting in demanding industrial applications.

References Manufacturer: SPX-FL24-W-1010-EM50, SPX-FL24-W-3030-EM50, SPX-FL24-W-5050-EM50, SPX-FL24-W-8080-EM50, SPX- FL24-W-120120-EM50, SPX-FL24-W-3510-EM50, SPX-FL24-W-6025-EM50, SPX-FL24-W-8030-EM50, SPX-FL24-W- 12050-EM50

Ambiant temperature	-52°C à +55°C
Temperature class	T4
Warranty	Garantie 5 an(s)
Feed	110-254V AC
Protection étanchéité (IP)	IP66.IP67
Application/Usage	Zone ATEX
Zone ATEX	Zone 1/21
Classe de gaz	IIC
Mode de protection ATEX	Ex e (sécurité augmentée)
Certificats	ATEX.CERTIF_ABS.IECEx.UKCA
Fréquence (Hz)	50/60hz
Matière	Aluminium qualité marine
Certificat_ATEX-fr_FR	CML13ATEX3007
Certificat_IECEx-fr_FR	IEC Ex CML 14.0001
Couleurs corps	Argent (RAL 9006)
Light source	LED
Color temperature	6000K
Puissance électrique	71W
Light power	8200lm
Indice de résistance aux chocs	IK10
Entrée(s) de câble	2xM20
Mounting type	Etrier de fixation
Batterie de secours	Nickel-cadmium (Ni/Cd) 12V
Angle de faisceau	10x10°
120°50°	1
-55°C à +66°C	1
8450lm	1
