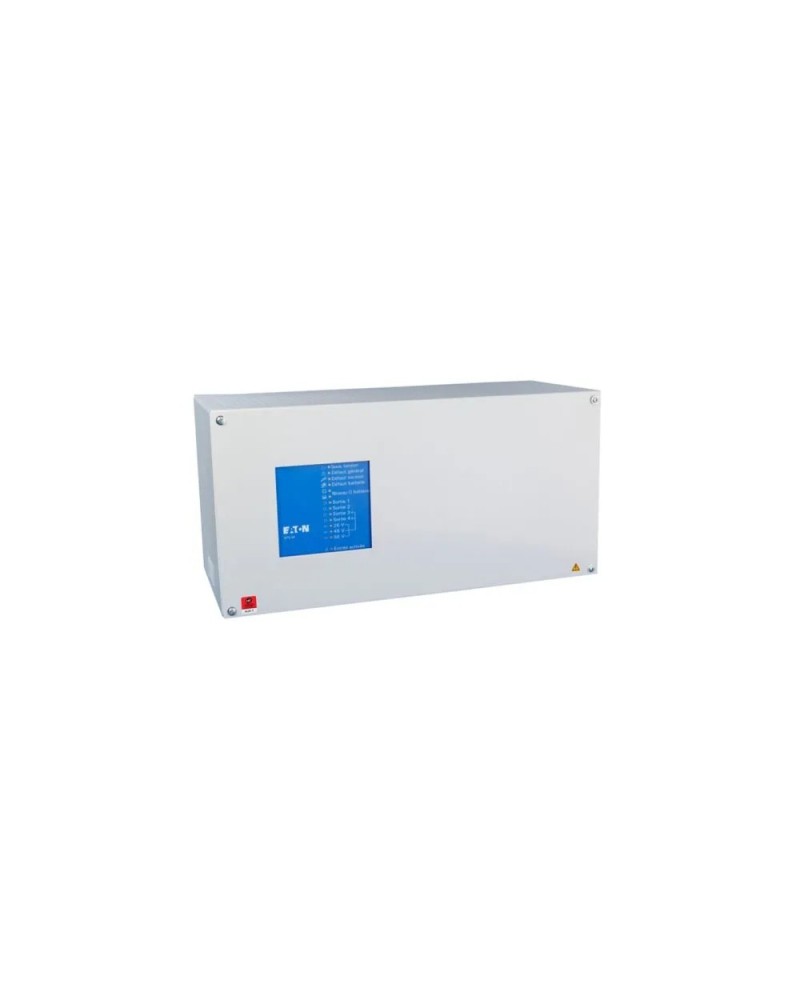

AES range SPSM range
- IP30
- 4 independently protected outputs
- 1 unloaded output
- A signaling light by exit
- Variants in battery capacity in 7 Ah, 12 Ah (single box) and 24 AH (double housing)
- Variant in useful power of 50W to 150W
- Reinforced battery charge circuit
- 2 accessories allowing the 19 "rack
- Supplied with batteries
- Parameterized voltage levels in 26VDC, 48VCC or 56VCC (SPSMC)
- Output regulators converters: constant voltage and regulated independently of the battery level (SPSMC)
- 4 independently protected outputs
- 1 unloaded output
- A signaling light by exit
- Variants in battery capacity in 7 Ah, 12 Ah (single box) and 24 AH (double housing)
- Variant in useful power of 50W to 150W
- Reinforced battery charge circuit
- 2 accessories allowing the 19 "rack
- Supplied with batteries
- Parameterized voltage levels in 26VDC, 48VCC or 56VCC (SPSMC)
- Output regulators converters: constant voltage and regulated independently of the battery level (SPSMC)
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The new range of SPSM safety power supplies is essential to the fire safety system. It feeds the operating safety devices (DAS), as well as the sound and luminous diffusers of the SSI. It can also provide energy with specific detectors such as suction, linear or optical detectors. Its multiple outputs, protected and indicated individually, guarantee a secure supply of several devices simultaneously.
References Manufacturer: NUG34164, NUG34165, NUG34168, NUG34169, NUG34170, NUG34171, NUG34172, NUG34173
| Warranty | 2¨ |
|---|---|
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip30 |
| Application / usage | En-54 |
| Certificates | THIS |
| Body colors | White |
