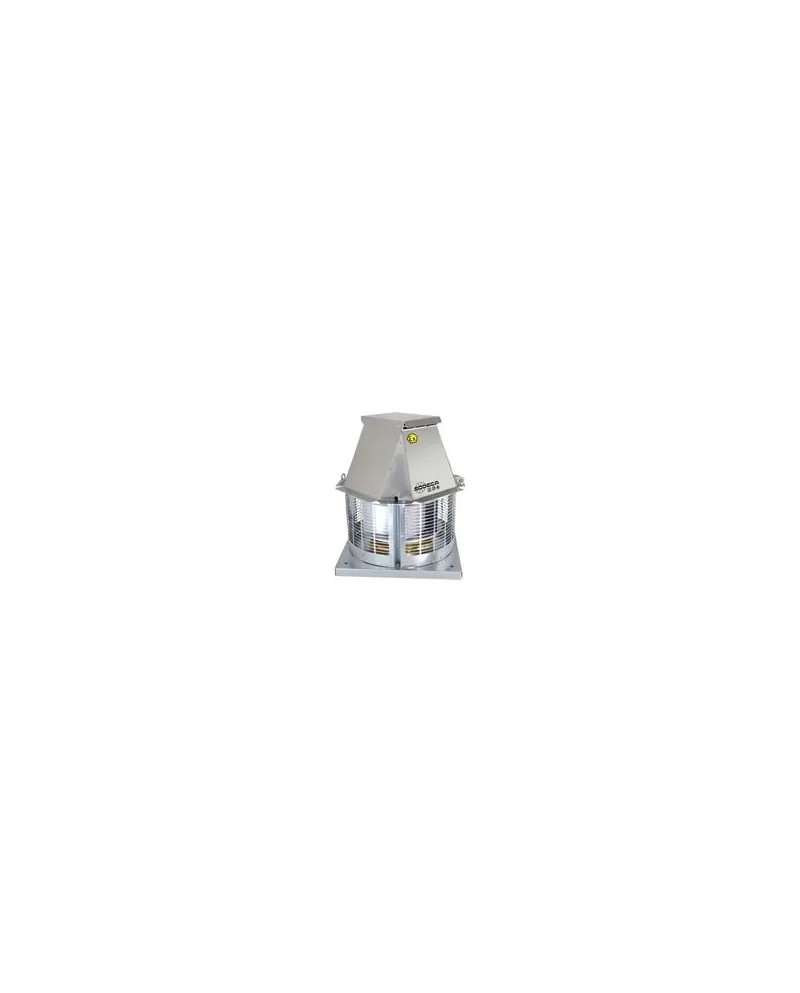

RFHD / ATEX Centrifugal Extraction Turret
- Galvanized planet base with brass suction mouth according to EN 14986.
- Galvanized sheet metal reaction turbine.
- Grid of protection against birds.
- Baffleplate hat in aluminum sheet metal.
- Maximum air temperature to be transported: -25 ºC +80 ºC.
- Standard marking with explosion engine (ex dB): II 2g Ex H iB T4 GB.
- CLASS F motors with ball bearings and ATEX antidoflage certificate ex dB.
- Three-phase 230/400 V 50 Hz (≤ 4 kW) and 400/690 V 50 Hz (> 4 kW).
- Operating temperature: -20 ºC +40 ºC.
- Galvanized sheet metal reaction turbine.
- Grid of protection against birds.
- Baffleplate hat in aluminum sheet metal.
- Maximum air temperature to be transported: -25 ºC +80 ºC.
- Standard marking with explosion engine (ex dB): II 2g Ex H iB T4 GB.
- CLASS F motors with ball bearings and ATEX antidoflage certificate ex dB.
- Three-phase 230/400 V 50 Hz (≤ 4 kW) and 400/690 V 50 Hz (> 4 kW).
- Operating temperature: -20 ºC +40 ºC.
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The engines fitted to these turrets are of type ex db, which means they are explosioning. These engines are designed to contain and isolate any internal explosions, preventing any spread outwards. This provides maximum safety in hazardous environments, where the prevention of sources of ignition is crucial.
References Manufacturer: 1048578,1048580,1048582,1048584,1048586,1048587,1048588
| Ambiant temperature | -20 ° C to 40 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Application / usage | ATEX zone |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.ce |
| Frequency (Hz) | 50hz |
